NSN 2815-00-390-2490 MAFB5APC4, MAFB5CPC4, CAFB5705C
Product Details | PISTON RING
2815-00-390-2490 A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL.20628050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components30400042Miscellaneous Power Transmission Equipment43100028Compressors and Vacuum Pumps
Part Alternates: MAFB5APC4, MAFB5CPC4, CAFB5705C, CAFB5705C4, CAFB5705CREPB5705, 3382, 33SAF10B5APC4, 33SAF10B5CPC4, 9AF9B5APC4, 9AF9B5CPC4, 0245000, 02450-00, 13AF10B5APC4, 13AF10B5CPC4, 15AF9B5APC4, 15AF9B5CPC4, 16101191, 16AFA5APC4, 16AFA5CPC4, 21SAF10B5APC4, 21SAF10B5CPC4, 22AF10C5APC4, 22AF10C5CPC4, 2450, 2815-00-390-2490, 00-390-2490, 2815003902490, 003902490
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-390-2490 | 11459 ( RING, PISTON ) |
Drawings & Photos | NSN 2815-00-390-2490
Demand History | NSN 2815-00-390-2490
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 02450-00 | 2021-08-236 | 103 | DIBBS |
| 02450-00PC | 2021-08-236 | 103 | DIBBS |
| 16101191 | 2021-08-236 | 103 | DIBBS |
| 02450-00 | 2020-09-251 | 19 | DIBBS |
| 02450-00PC | 2020-09-251 | 19 | DIBBS |
| 16101191 | 2020-09-251 | 19 | DIBBS |
| 02450-00 | 2020-08-233 | 19 | DIBBS |
| 02450-00PC | 2020-08-233 | 19 | DIBBS |
| 16101191 | 2020-08-233 | 19 | DIBBS |
| 02450-00 | 2020-08-223 | 81 | DIBBS |
| 02450-00PC | 2020-08-223 | 81 | DIBBS |
| 16101191 | 2020-08-223 | 81 | DIBBS |
| 02450-00 | 2020-07-203 | 50 | DIBBS |
| 02450-00PC | 2020-07-203 | 50 | DIBBS |
| 16101191 | 2020-07-203 | 50 | DIBBS |
| 02450-00 | 2020-05-149 | 125 | DIBBS |
| 02450-00PC | 2020-05-149 | 125 | DIBBS |
| 16101191 | 2020-05-149 | 125 | DIBBS |
| 02450-00 | 2020-05-125 | 28 | DIBBS |
| 02450-00PC | 2020-05-125 | 28 | DIBBS |
| 16101191 | 2020-05-125 | 28 | DIBBS |
| 02450-00 | 2020-04-107 | 11 | DIBBS |
| 02450-00PC | 2020-04-107 | 11 | DIBBS |
| 16101191 | 2020-04-107 | 11 | DIBBS |
| 02450-00 | 2020-04-100 | 29 | DIBBS |
| 02450-00PC | 2020-04-100 | 29 | DIBBS |
| 16101191 | 2020-04-100 | 29 | DIBBS |
| 02450-00 | 2020-01-16 | 233 | DIBBS |
| 02450-00PC | 2020-01-16 | 233 | DIBBS |
| 16101191 | 2020-01-16 | 233 | DIBBS |
| 02450-00 | 2020-01-05 | 233 | DIBBS |
| 02450-00PC | 2020-01-05 | 233 | DIBBS |
| 16101191 | 2020-01-05 | 233 | DIBBS |
| 16101191 | 2019-04-100 | 48 | US |
| 16101191 | 2019-04-100 | 24 | US |
| 16101191 | 2019-03-79 | 72 | US |
| 16101191 | 2019-03-70 | 48 | US |
| 2815-00-390-2490 | 2018-12-361 | 329 | DIBBS |
| 2815-00-390-2490 | 2018-10-285 | 477 | DIBBS |
| 2815-00-390-2490 | 2018-09-267 | 477 | DIBBS |
| 2815-00-390-2490 | 2018-09-256 | 477 | DIBBS |
| 2815-00-390-2490 | 2018-06-179 | 575 | DIBBS |
| 2815-00-390-2490 | 2018-04-93 | 3 | DIBBS |
| 2815-00-390-2490 | 2018-04-93 | 24 | DIBBS |
| 2815-00-390-2490 | 2018-03-64 | 575 | DIBBS |
| 2815-00-390-2490 | 2018-02-51 | 575 | DIBBS |
| 2815-00-390-2490 | 2018-01-23 | 229 | DIBBS |
| 2815-00-390-2490 | 2017-10-296 | 305 | DIBBS |
| 2815-00-390-2490 | 2017-05-128 | 283 | DIBBS |
| 2815-00-390-2490 | 2017-04-94 | 301 | DIBBS |
| 2815-00-390-2490 | 2016-07-189 | 174 | DIBBS |
| 2815-00-390-2490 | 2016-02-40 | 115 | DIBBS |
| 2815-00-390-2490 | 2015-11-322 | 147 | DIBBS |
| 2815-00-390-2490 | 2015-11-307 | 236 | DIBBS |
| 2815-00-390-2490 | 2015-07-211 | 236 | DIBBS |
| 2815-00-390-2490 | 2015-03-60 | 110 | DIBBS |
| 2815-00-390-2490 | 2014-08-217 | 184 | DIBBS |
| 2815-00-390-2490 | 2014-06-167 | 25 | DIBBS |
| 2815-00-390-2490 | 2014-06-152 | 64 | DIBBS |
| 2815-00-390-2490 | 2014-03-65 | 97 | DIBBS |
| 2815-00-390-2490 | 2013-05-136 | 148 | DIBBS |
| 2815-00-390-2490 | 2012-06-173 | 3 | DIBBS |
| 2815-00-390-2490 | 2012-06-153 | 11 | DIBBS |
| 2815-00-390-2490 | 2012-05-132 | 18 | DIBBS |
| 2815-00-390-2490 | 2012-04-109 | 23 | DIBBS |
| 2815-00-390-2490 | 2012-03-90 | 84 | DIBBS |
| 2815-00-390-2490 | 2011-01-08 | 157 | DIBBS |
| 2815-00-390-2490 | 2010-01-13 | 85 | DIBBS |
| 2815-00-390-2490 | 2009-10-292 | 51 | DIBBS |
| 2815-00-390-2490 | 2009-09-244 | 142 | DIBBS |
| 2815-00-390-2490 | 2009-07-189 | 79 | DIBBS |
| 2815-00-390-2490 | 2009-06-170 | 28 | DIBBS |
| 2815-00-390-2490 | 2008-04-100 | 86 | DIBBS |
Cross Reference | NSN 2815-00-390-2490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02450-00 | 75370 | KAYDON RING & SEAL, INC. |
| 13AF10B5APC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 13AF10B5CPC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 15AF9B5APC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 15AF9B5CPC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 16101191 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 16AFA5APC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 16AFA5CPC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 21SAF10B5APC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 21SAF10B5CPC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 22AF10C5APC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 22AF10C5CPC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 2450 | 75370 | KAYDON RING & SEAL, INC. |
| 3382 | 75370 | KAYDON RING & SEAL, INC. |
| 33SAF10B5APC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 33SAF10B5CPC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 9AF9B5APC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 9AF9B5CPC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| CAFB5705C | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| CAFB5705C4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| CAFB5705CREPB5705 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| MAFB5APC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| MAFB5CPC4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2815-00-390-2490
Related Products | NSN 2815-00-390-2490
Technical Data | NSN 2815-00-390-2490
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON OVERALL |

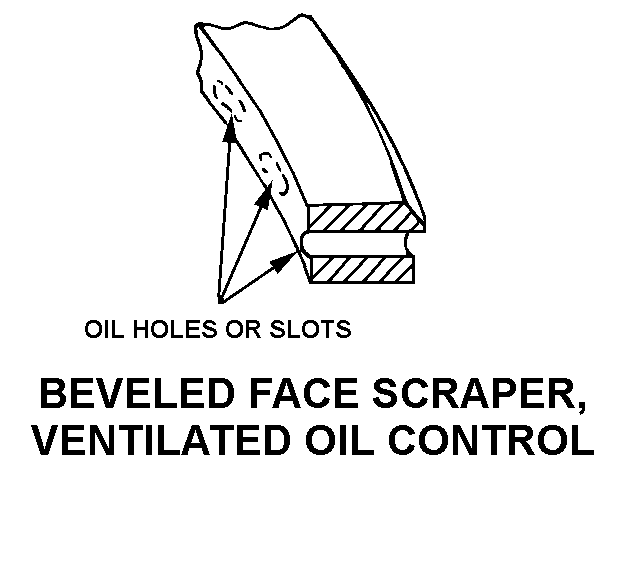

| CROSS-SECTIONAL SHAPE STYLE | A46 BEVELED FACE SCRAPER, VENTILATED OIL CONTROL |
