NSN 2815-00-150-7406 B0075800, B00758-00, B-758
Product Details | ENGINE POPPET VALVE

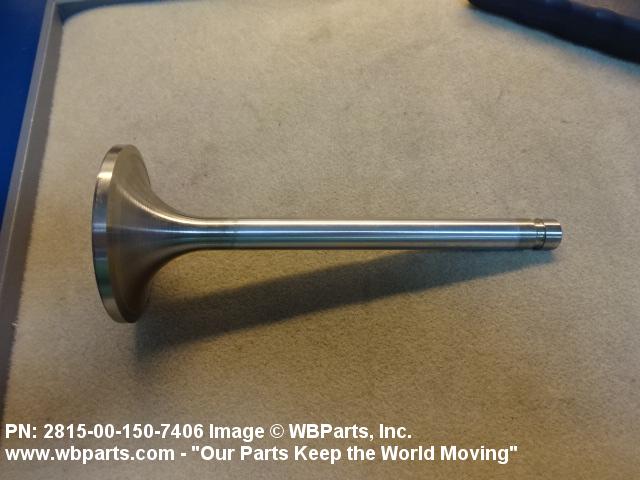

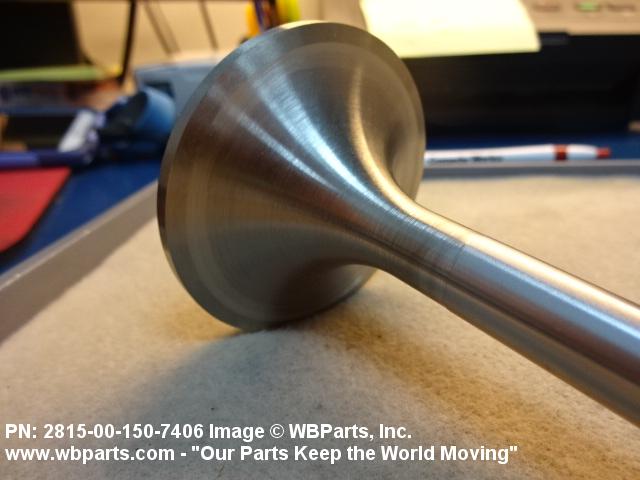

2815-00-150-7406 A mushroom or tulip-shaped item having a circular head with a conical face and an extended stem used to regulate the flow of incoming fuel-air mixture or air into the combustion chamber or exhaust gases from the combustion chamber of a reciprocating internal combustion engine.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: B0075800, B00758-00, B-758, B758, 42012, 10951239, 2815-00-150-7406, 00-150-7406, 2815001507406, 001507406
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 17 AUG 1970 | 00-150-7406 | 15884 ( VALVE, POPPET, ENGINE ) |

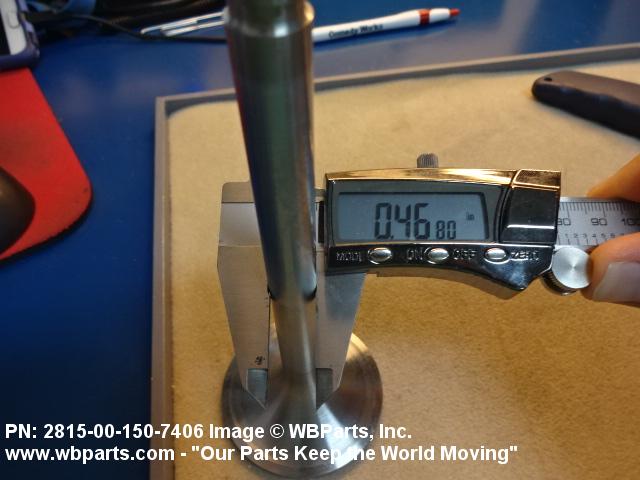

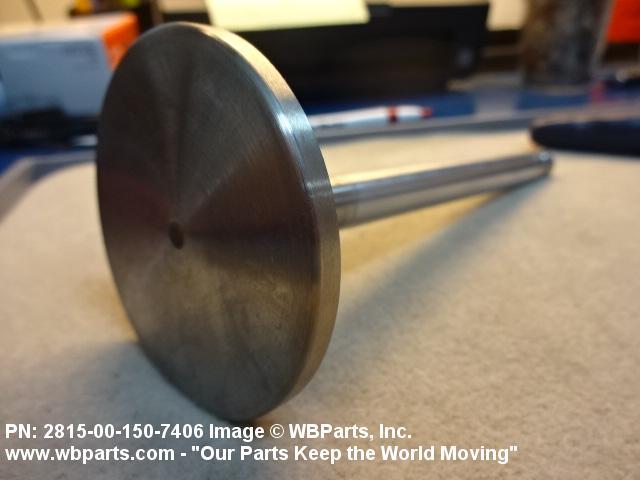

Drawings & Photos | NSN 2815-00-150-7406
Demand History | NSN 2815-00-150-7406
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| B00758-00 | 2024-11-311 | 242 | DIBBS |
| 2815-00-150-7406 | 2021-12-350 | 120 | KR |
| 2815-00-150-7406 | 2020-11-335 | 409 | Taiwan |
| B00758-00 | 2019-09-252 | 2376 | DIBBS |
| 10951239 | 2019-05-135 | 120 | Hong Kong |
| 2815-00-150-7406 | 2019-04-112 | 100 | France |
| 2815-00-150-7406 | 2019-02-50 | 96 | Saudi Arabia |
| 2815-00-150-7406 | 2018-06-156 | 1 | TW |
| 10951239 | 2018-04-114 | 96 | United States |
| 10951239 | 2018-04-113 | 96 | United States |
| 2815-00-150-7406 | 2017-02-38 | 96 | TR |
| 2815-00-150-7406 | 2012-09-254 | 7335 | DIBBS |
| 2815-00-150-7406 | 2012-09-251 | 848 | DIBBS |
| 2815-00-150-7406 | 2012-09-251 | 3092 | DIBBS |
| 2815-00-150-7406 | 2012-09-251 | 3395 | DIBBS |
| 2815-00-150-7406 | 2009-02-40 | 556 | DIBBS |
| 2815-00-150-7406 | 2009-02-40 | 881 | DIBBS |
| 2815-00-150-7406 | 2009-02-38 | 556 | DIBBS |
| 2815-00-150-7406 | 2009-02-38 | 881 | DIBBS |
| 2815-00-150-7406 | 2008-12-357 | 1063 | DIBBS |
| 2815-00-150-7406 | 2008-08-217 | 1335 | DIBBS |
| 2815-00-150-7406 | 2008-06-176 | 756 | DIBBS |
| 2815-00-150-7406 | 2007-04-100 | 1021 | DIBBS |
| 2815-00-150-7406 | 2007-01-26 | 982 | DIBBS |
| 2815-00-150-7406 | 2006-03-67 | 384 | DIBBS |
Cross Reference | NSN 2815-00-150-7406
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10951239 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 2815001507406 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 42012 | 92856 | EATON CORP ENGINE COMPONENTS DIV |
| B-758 | 2D027 | TRW AUTOMOTIVE INC. DBA TRW AUTOMOTIVE NORTH AMERICA |
| B00758-00 | D0985 | TRW AUTOMOTIV GMBH -STANDORT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2815-00-150-7406
Related Products | NSN 2815-00-150-7406
Technical Data | NSN 2815-00-150-7406
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, AMS 5710 OVERALL |
| METALLIC HARDNESS RATING AND LOCATION | 27.0 ROCKWELL C MINIMUM HEAD 36.0 ROCKWELL C MAXIMUM HEAD 27.0 ROCKWELL C MINIMUM SEAT FACE 36.0 ROCKWELL C MAXIMUM SEAT FACE 27.0 ROCKWELL C MINIMUM STEM 36.0 ROCKWELL C MAXIMUM STEM 42.0 ROCKWELL C NOMINAL TIP |

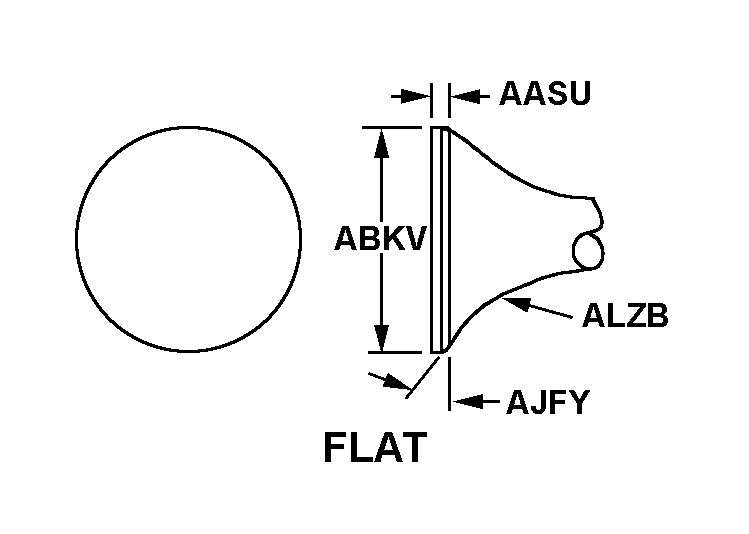

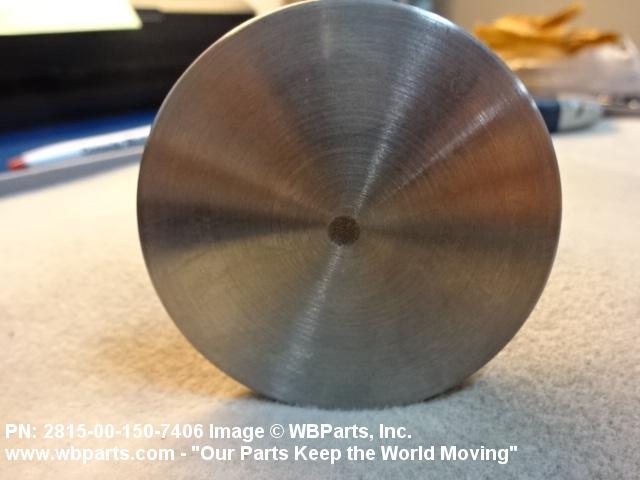

| HEAD STYLE | 1 FLAT |

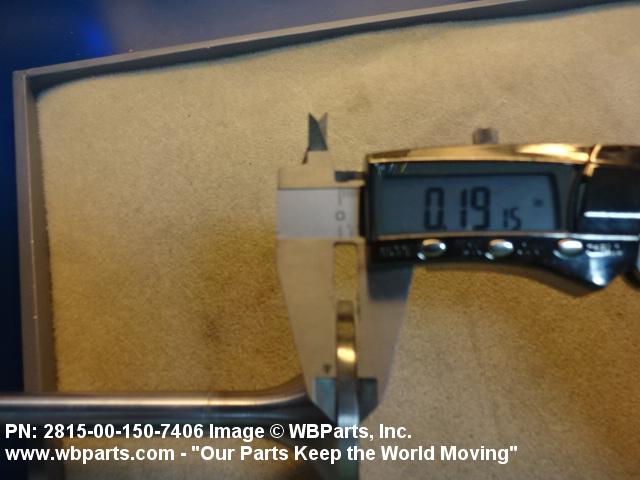

| HEAD HEIGHT | 0.1790 INCHES MINIMUM AND 0.1950 INCHES MAXIMUM |

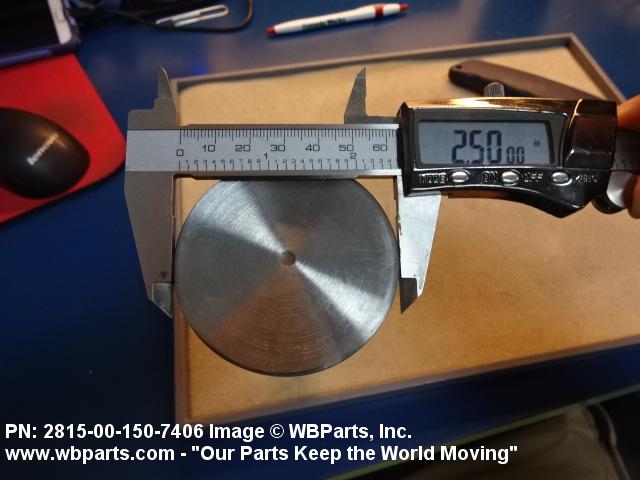

| OUTSIDE DIAMETER | 2.4950 INCHES MINIMUM AND 2.5050 INCHES MAXIMUM |
| NECK RADIUS | 1.0000 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 75.0 |

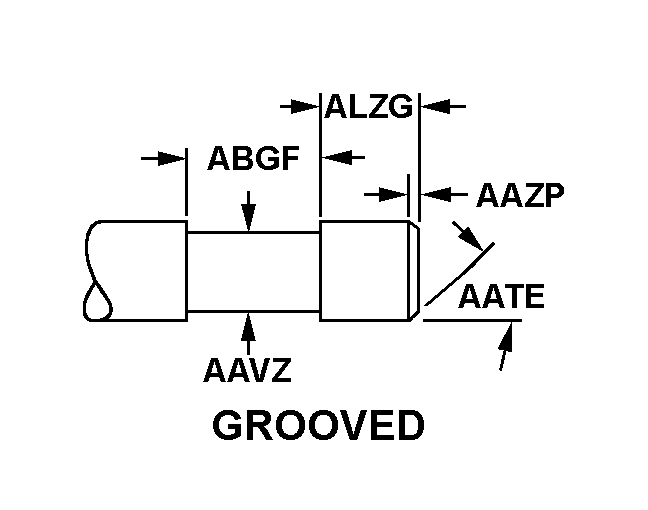

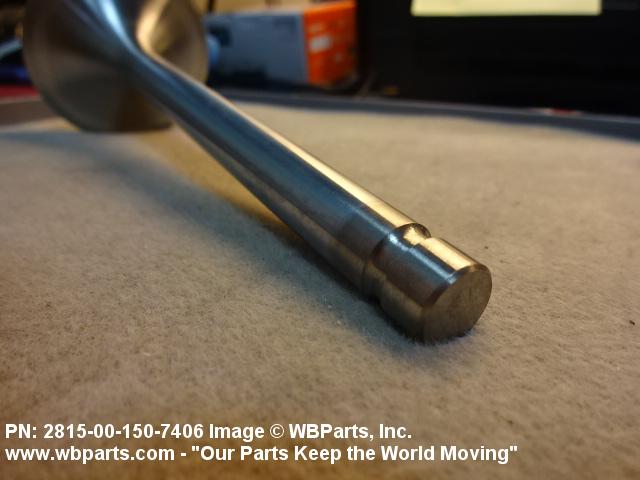

| STEM STYLE | 5 GROOVED |

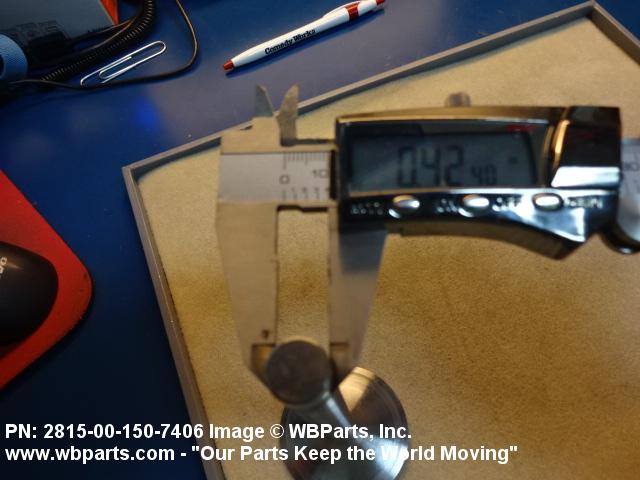

| GROOVE DIAMETER | 0.4220 INCHES MINIMUM AND 0.4280 INCHES MAXIMUM |
| CHAMFER LENGTH | 0.0300 INCHES NOMINAL |

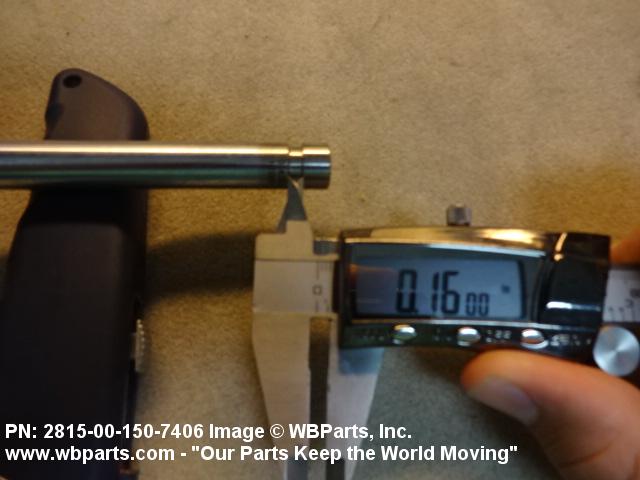

| GROOVE WIDTH | 0.1560 INCHES MINIMUM AND 0.1660 INCHES MAXIMUM |

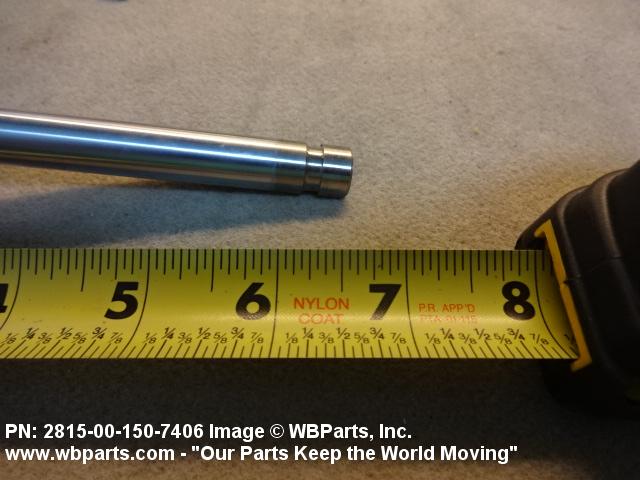

| STEM LENGTH | 6.5340 INCHES MINIMUM AND 6.5640 INCHES MAXIMUM |
| STEM DIAMETER | 0.4975 INCHES MINIMUM AND 0.4980 INCHES MAXIMUM |
| DISTANCE FROM GROOVE TO STEM END | 0.2740 INCHES MINIMUM AND 0.2880 INCHES MAXIMUM |
| CHAMFER ANGLE IN DEG | 45.0 |
| CARBON RELIEF GROOVE | NOT INCLUDED |
| MANUFACTURERS CODE | 19207 |
| MFR SOURCE CONTROLLING REFERENCE | 10951239 |
Restrictions/Controls & Freight Information | NSN 2815-00-150-7406
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2815-00-150-7406
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | J | Tanks |
| Weapons Systems/End Item or Homogeneous Group | JT | Recovery Vehicle, M51/M74/M88 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | H | Reparable item. When uneconomically reparable, condemn and dispose at fourth echelon level. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
