NSN 2815-00-076-0634 MILE11276, MIL-E-11276, QPL11276
Product Details | CYLINDER SLEEVE
2815-00-076-0634 A tubular metal item designed primarily as a replaceable wear surface within the cylinder bore of a piston type internal combustion engine, compressor, or reciprocating pump.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps
Part Alternates: MILE11276, MIL-E-11276, QPL11276, 112851, 2815-00-076-0634, 00-076-0634, 2815000760634, 000760634
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 29 JUL 1967 | 00-076-0634 | 16756 ( CYLINDER SLEEVE ) |
Drawings & Photos | NSN 2815-00-076-0634
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2815-00-076-0634
Related Products | NSN 2815-00-076-0634
Technical Data | NSN 2815-00-076-0634
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |
| DESIGN TYPE | DRY |

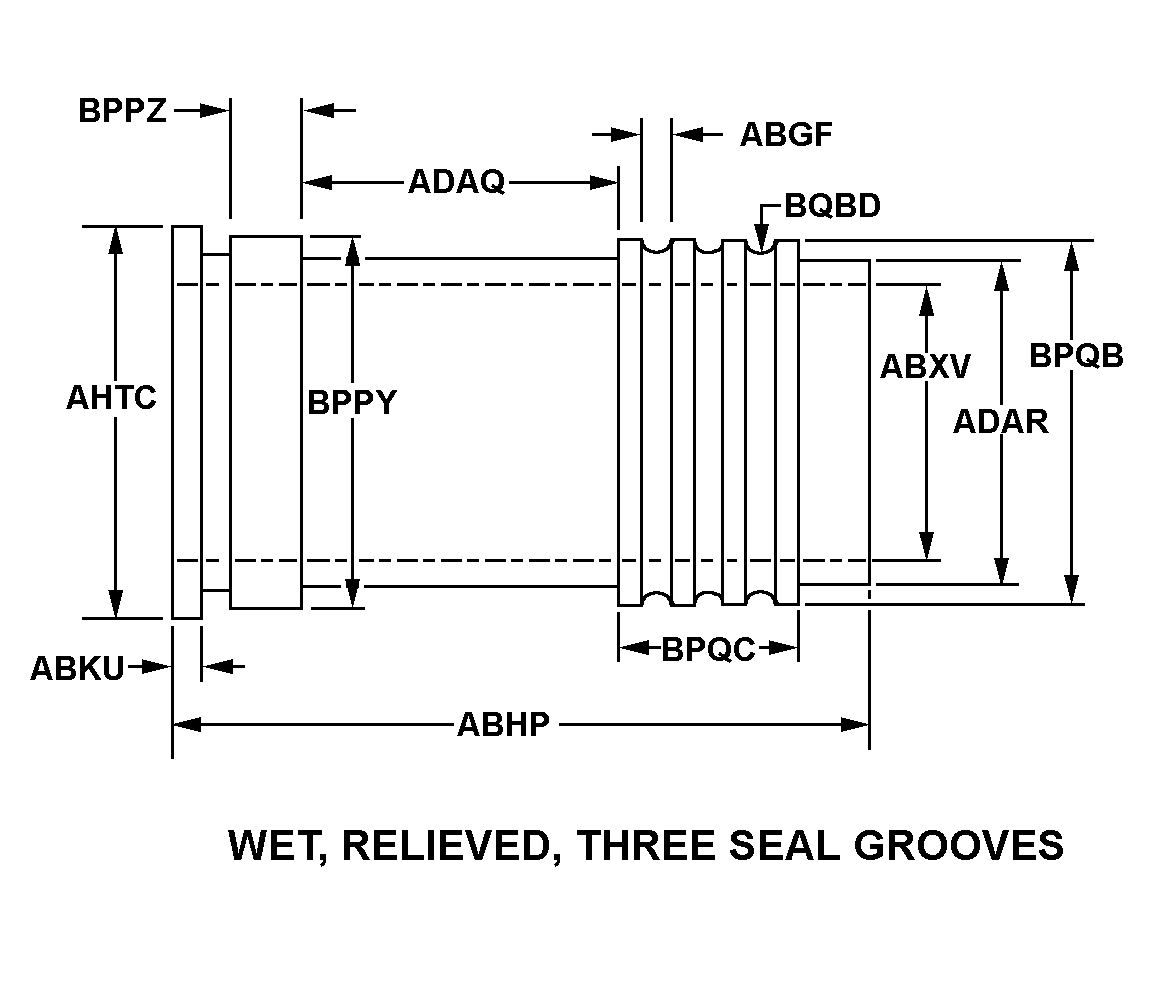

| STYLE DESIGNATOR | A1 WET, RELIEVED, THREE SEAL GROOVES |
| GROOVE WIDTH | 0.188 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| OVERALL LENGTH | 9.375 INCHES NOMINAL |
| FLANGE THICKNESS | 0.344 INCHES NOMINAL |
| BORE DIAMETER | 4.375 INCHES NOMINAL |
| BODY LENGTH | 6.375 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 4.938 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 5.188 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER UNDER FLANGE | 5.000 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER WIDTH UNDER FLANGE | 0.250 INCHES NOMINAL |
| GROOVED PORTION OUTSIDE DIAMETER | 4.875 INCHES NOMINAL |
| GROOVED PORTION WIDTH | 1.125 INCHES NOMINAL |
| GROOVE RADIUS DEPTH | 0.091 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| VALVE RECESS | NOT INCLUDED |
| TOP INSIDE CHAMFER | NOT INCLUDED |
| BOTTOM INSIDE CHAMFER | NOT INCLUDED |
| TOP INTAKE PORT | NOT INCLUDED |
| INTAKE HOLE | NOT INCLUDED |
| SPECIAL FEATURES | BOTTOM OUTSIDE DIA CHAMFERED 74 DEG,0.250 IN W |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-E-11276 |
Restrictions/Controls & Freight Information | NSN 2815-00-076-0634
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114730 | BARRELS/LINERS/SLEEVES I/C ENGINE |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2815-00-076-0634
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
