NSN 2815-00-071-1865 4389397, 00-071-1865, 000711865
Product Details | ENGINE POPPET VALVE ROTOR
2815-00-071-1865 A spring loaded metallic device which is specifically designed to rotate the poppet valves of an internal combustion engine to prevent uneven wear and/or distortion of the valve seating surface. See also SEAT, HELICAL COMPRESSION SPRING.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: 4389397, 2815-00-071-1865, 00-071-1865, 2815000711865, 000711865
Engines, Turbines, and Components | Diesel Engines and Components
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
28 | 18 JUL 1967 | 00-071-1865 | 22200 ( ROTOR, ENGINE POPPET VALVE ) |
Cross Reference | NSN 2815-00-071-1865
Part Number | Cage Code | Manufacturer |
---|---|---|
4389397 | 6N299 | AGCO CORP PARTS OPN |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 2815-00-071-1865
Related Products | NSN 2815-00-071-1865
Technical Data | NSN 2815-00-071-1865
Characteristic | Specifications |
---|---|
ROTATION DIRECTION | CLOCKWISE AND COUNTERCLOCKWISE |

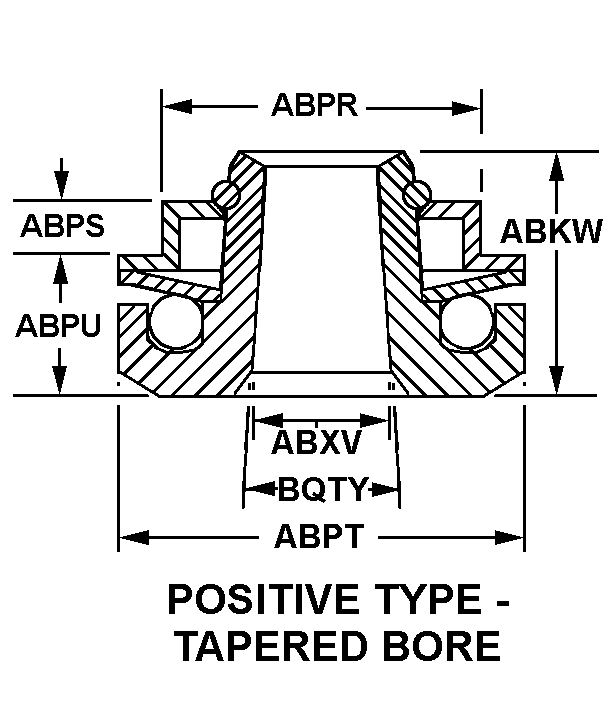

STYLE DESIGNATOR | Q2 POSITIVE TYPE-TAPERED BORE |
OVERALL HEIGHT | 0.552 INCHES NOMINAL |
FIRST STEP DIAMETER | 0.942 INCHES NOMINAL |
FIRST STEP LENGTH | 0.179 INCHES NOMINAL |
SECOND STEP DIAMETER | 1.283 INCHES NOMINAL |
SECOND STEP LENGTH | 0.307 INCHES NOMINAL |
BORE DIAMETER | 0.697 INCHES NOMINAL |
TAPERED BORE INCLUDED ANGLE IN DEG | 15 DEG AGUCA10 |
UNIT PACKAGE TYPE | BOX |
Restrictions/Controls & Freight Information | NSN 2815-00-071-1865
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 133300 | MACHINERY/MACHINES NOI |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 593 | unknown |
Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2815-00-071-1865
Category | Code | Description |
---|---|---|
Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
Z EA : Each |
