Product Details | PISTON RING

2810-01-056-6499 A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL.20628050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components30400042Miscellaneous Power Transmission Equipment43100028Compressors and Vacuum Pumps

Part Alternates: S30071301199, S30071-3011-99, 2810-01-056-6499, 01-056-6499, 2810010566499, 010566499

Engines, Turbines, and Components | Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components

Supply Group (FSG) NSN Assign. NIIN
28 26 FEB 1978 01-056-6499

Drawings & Photos | NSN 2810-01-056-6499


Demand History | NSN 2810-01-056-6499

Part Number Request Date QTY Origin
2810-01-056-6499 2009-12-343 10 US
S30071301199 2009-08-229 16 South Korea
2810-01-056-6499 2009-08-226 16 US

Cross Reference | NSN 2810-01-056-6499

Part Number Cage Code Manufacturer
S30071-3011-99 09257 TRELLEBORG SEALING SOLUTIONS US, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2810-01-056-6499

Technical Data | NSN 2810-01-056-6499

Characteristic Specifications
MATERIAL PLASTIC POLYTETRAFLUOROETHYLENE AND STEEL COMP 301 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION ZZ-53 MFR REF SINGLE MATERIAL RESPONSE AND MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL

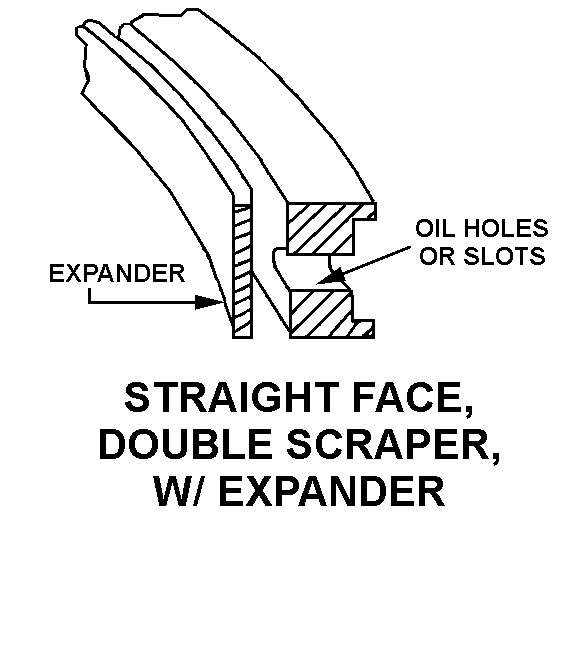

CROSS-SECTIONAL SHAPE STYLE A106 STRAIGHT FACE, DOUBLE SCRAPER, W/EXPANDER
JOINT STYLE 3 STEP JOINT
RING STYLE 1 CONCENTRIC
RADIAL WALL THICKNESS 0.1240 INCHES NOMINAL
OVERALL WIDTH 0.0600 INCHES NOMINAL
OIL PASSAGE TYPE AND QUANTITY 1 SLOT INSIDE PERIPHERY
STANDARD BORE DIAMETER 1.875 INCHES
SPECIAL FEATURES 2 PISTON RINGS AND 1 EXPANDER
MANUFACTURERS CODE 09257
DESIGN CONTROL REFERENCE S30071-3011-99
