NSN 2805-00-962-8431 634985, 00-962-8431, 009628431
Product Details | VALVE SPRING RETAINER LOCK
2805-00-962-8431 A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers.20428050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components43100028Compressors and Vacuum Pumps
Part Alternates: 634985, 2805-00-962-8431, 00-962-8431, 2805009628431, 009628431
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 03 JUN 1966 | 00-962-8431 | 15883 ( LOCK, VALVE SPRING RETAINER ) |
Drawings & Photos | NSN 2805-00-962-8431
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-962-8431
Technical Data | NSN 2805-00-962-8431
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

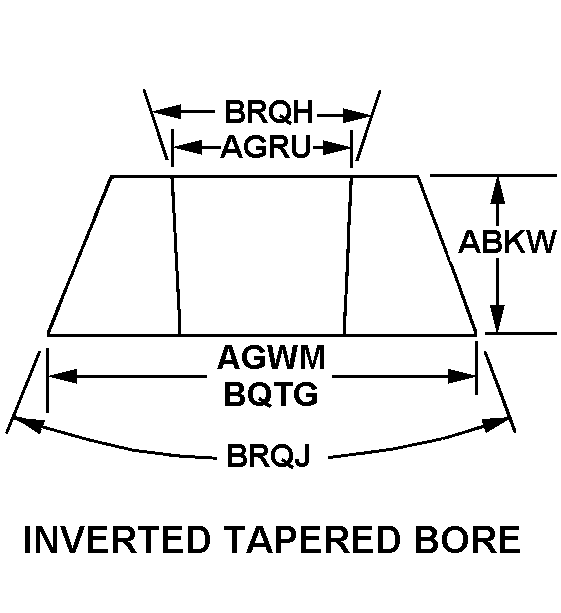

| STYLE DESIGNATOR | L3 INVERTED TAPERED BORE |
| OVERALL HEIGHT | 0.370 INCHES NOMINAL |
| LARGEST INSIDE DIAMETER | 0.400 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER | 0.545 INCHES NOMINAL |
| MINIMUM INSIDE DIAMETER | 0.344 INCHES |
| FIRST RIDGE RADIUS | 0.170 INCHES NOMINAL |
| SECOND RIDGE RADIUS | 0.170 INCHES NOMINAL |
| DISTANCE BETWEEN FIRST AND SECOND RIDGE CENTERS | 0.105 INCHES NOMINAL |
| DISTANCE FROM BOTTOM TO FIRST RIDGE CENTER | 0.187 INCHES NOMINAL |
| FIRST RIDGE WIDTH | 0.055 INCHES NOMINAL |
| INSIDE INCLUDED ANGLE IN DEG | 92.0 |
| OUTSIDE INCLUDED ANGLE IN DEG | 20.0 |
| THREAD PROVISION | UNTHREADED |
Restrictions/Controls & Freight Information | NSN 2805-00-962-8431
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2805-00-962-8431
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
