NSN 2805-00-814-5458 MS139972, MS13997-2, T4151206
Product Details | VALVE SPRING RETAINER LOCK
2805-00-814-5458 A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers.20428050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components43100028Compressors and Vacuum Pumps
Part Alternates: MS139972, MS13997-2, T4151206, 07876285, 07-876285, 154742, 1A20493, 1A20-493, 600R507, 876285, 2805-00-814-5458, 00-814-5458, 2805008145458, 008145458
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1962 | 00-814-5458 | 15883 ( LOCK, VALVE SPRING RETAINER ) |
Drawings & Photos | NSN 2805-00-814-5458
Cross Reference | NSN 2805-00-814-5458
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 07-876285 | 16662 | LIFT PARTS MFG CO INC DIV OF ECHLIN MFG CO THE |
| 07-876285 | 66654 | TVH PARTS CO. |
| 154742 | 64104 | DRESSER, INC. DIV DRESSER WAUKESHA |
| 1A20-493 | 23382 | FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP |
| 600R507 | 45152 | OSHKOSH CORPORATION |
| 600R507 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 876285 | 12603 | CLARK EQUIPMENT CO |
| 876285 | 77237 | DANA OFF HIGHWAY PRODUCTS, LLC |
| MS13997-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| T4151206 | 14351 | TELEDYNE CONTINENTAL MOTORS INDUSTRIAL PRODUCTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-814-5458
Technical Data | NSN 2805-00-814-5458
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,SAE 52100,FSCM 81343 |
| METALLIC HARDNESS RATING | 60.0 NOMINAL ROCKWELL C |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

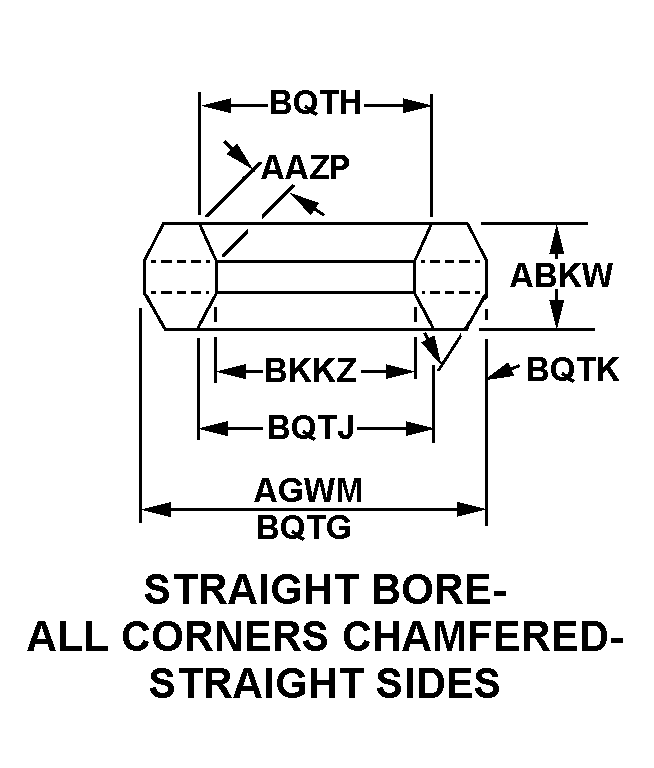

| STYLE DESIGNATOR | L24 STRAIGHT BORE-ALL CORNERS CHAMFERED-STRAIGHT SIDES |
| CHAMFER LENGTH | 0.111 INCHES NOMINAL |
| OVERALL HEIGHT | 0.206 INCHES MINIMUM AND 0.207 INCHES MAXIMUM |
| LARGEST OUTSIDE DIAMETER | 0.535 INCHES MINIMUM AND 0.540 INCHES MAXIMUM |
| MINIMUM INSIDE DIAMETER | 0.284 INCHES |
| LARGEST TOP COUNTERSINK DIAMETER | 0.354 INCHES MINIMUM AND 0.374 INCHES MAXIMUM |
| LARGEST BOTTOM COUNTERSINK DIAMETER | 0.354 INCHES MINIMUM AND 0.374 INCHES MAXIMUM |
| LARGEST OUTSIDE DIAMETER CHAMFER ANGLE IN DEG | 45.0 |
| THREAD PROVISION | UNTHREADED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS13997-2 |
Restrictions/Controls & Freight Information | NSN 2805-00-814-5458
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2805-00-814-5458
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
