NSN 2805-00-806-3945 151171R91, 00-806-3945, 008063945
Product Details | ENGINE POPPET VALVE ROTOR
2805-00-806-3945 A spring loaded metallic device which is specifically designed to rotate the poppet valves of an internal combustion engine to prevent uneven wear and/or distortion of the valve seating surface. See also SEAT, HELICAL COMPRESSION SPRING.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: 151171R91, 2805-00-806-3945, 00-806-3945, 2805008063945, 008063945
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-806-3945 | 22200 ( ROTOR, ENGINE POPPET VALVE ) |
Drawings & Photos | NSN 2805-00-806-3945
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-806-3945
Technical Data | NSN 2805-00-806-3945
| Characteristic | Specifications |
|---|---|
| ROTATION DIRECTION | CLOCKWISE OR COUNTERCLOCKWISE |
| MINIMUM ROTATION IN DEG | ANY ACCEPTABLE |
| STARTING LOAD RANGE | ANY ACCEPTABLE |

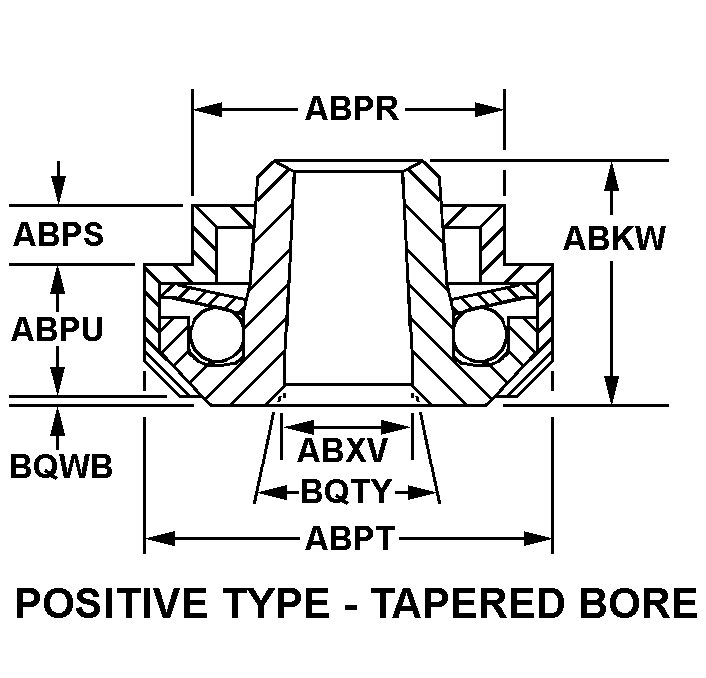

| STYLE DESIGNATOR | Q4 POSITIVE TYPE-TAPERED BORE |
| OVERALL HEIGHT | 0.547 INCHES NOMINAL |
| FIRST STEP DIAMETER | 0.875 INCHES NOMINAL |
| FIRST STEP LENGTH | 0.141 INCHES NOMINAL |
| SECOND STEP DIAMETER | 1.641 INCHES NOMINAL |
| SECOND STEP LENGTH | 0.281 INCHES NOMINAL |
| BORE DIAMETER | 0.719 INCHES NOMINAL |
| TAPERED BORE INCLUDED ANGLE IN DEG | 15 DEG |
| DISTANCE FROM END TO NEAREST STEP | 0.094 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2805-00-806-3945
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2805-00-806-3945
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
