Product Details | PISTON PIN
2805-00-800-9808 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: 8754474, 2805-00-800-9808, 00-800-9808, 2805008009808, 008009808
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 20 MAR 1968 | 00-800-9808 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 2805-00-800-9808
Cross Reference | NSN 2805-00-800-9808
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8754474 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-800-9808
Technical Data | NSN 2805-00-800-9808
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, SAE 8620 OR STEEL, FED STD 66, AISI/SAE 5015 |
| METALLIC HARDNESS RATING | 50.0 NOMINAL ROCKWELL C |
| CASEHARDENING INDICATOR | CASEHARDENED |
| BODY STYLE | 5A CHAMFERED ENDS |
| OUTSIDE DIAMETER | 0.91200 INCHES MINIMUM AND 0.91220 INCHES MAXIMUM |
| BODY LENGTH | 3.1620 INCHES MINIMUM AND 3.1760 INCHES MAXIMUM |
| END CHAMFER ANGLE IN DEG | 30.0 |

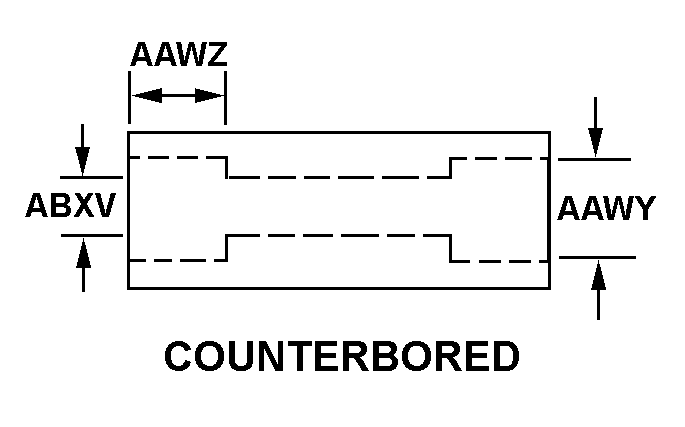

| BORE STYLE | 3 COUNTERBORED |
| COUNTERBORE DIAMETER | 0.600 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.250 INCHES NOMINAL |
| BORE DIAMETER | 0.4950 INCHES MINIMUM AND 0.5010 INCHES MAXIMUM |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 8754474 |
