Product Details | PISTON PIN
2805-00-788-0422 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: ERA262, 9786E1112, 9786E111-2, 2805-00-788-0422, 00-788-0422, 2805007880422, 007880422
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1960 | 00-788-0422 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 2805-00-788-0422
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-788-0422
Technical Data | NSN 2805-00-788-0422
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, FED STD 66, AISI/SAE 1018 OR STEEL, FED STD 66, AISI/SAE 1025 OR STEEL ASTM A334 GR 1 OR GR 6 |
| METALLIC HARDNESS RATING | 89.0 NOMINAL ROCKWELL SUPERFICIAL 15-N |
| CASEHARDENING INDICATOR | CASEHARDENED |

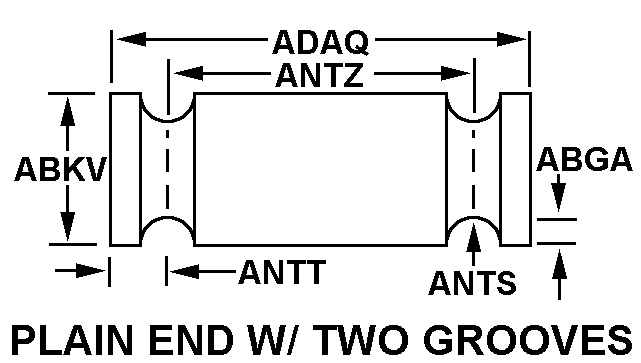

| BODY STYLE | 11A PLAIN END W/TWO GROOVES |
| GROOVE DEPTH | 0.0350 INCHES MINIMUM AND 0.0400 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.41900 INCHES MINIMUM AND 0.41950 INCHES MAXIMUM |
| BODY LENGTH | 1.9250 INCHES NOMINAL |
| RADIAL GROOVE RADIUS | 0.005 INCHES NOMINAL |
| DISTANCE FROM END TO GROOVE CENTER | 0.0360 INCHES MINIMUM AND 0.0460 INCHES MAXIMUM |
| DISTANCE BETWEEN GROOVE CENTERS | 1.8080 INCHES MINIMUM AND 1.8190 INCHES MAXIMUM |
| BORE STYLE | 7 STRAIGHT-THRU BORE |
| BORE DIAMETER | 0.2420 INCHES MINIMUM AND 0.2520 INCHES MAXIMUM |
| III FSC APPLICATION DATA | ENGINE,GASOLINE,NONAIRCRAFT |
