NSN 2805-00-753-9838 DEX2095, R0060199, R-00601-99

Product Details | ENGINE POPPET VALVE ROTOR

2805-00-753-9838 A spring loaded metallic device which is specifically designed to rotate the poppet valves of an internal combustion engine to prevent uneven wear and/or distortion of the valve seating surface. See also SEAT, HELICAL COMPRESSION SPRING.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components

Part Alternates: DEX2095, R0060199, R-00601-99 , 3230R060199, 3230-R0-601-99, 515462, 7539838, 2805-00-753-9838, 00-753-9838, 2805007539838, 007539838

Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
28	01 JAN 1962	00-753-9838	22200 ( ROTOR, ENGINE POPPET VALVE )

Drawings & Photos | NSN 2805-00-753-9838

Part Number	Request Date	QTY	Origin
R-00601-99	2020-11-321	1048	DIBBS
R-00601-99	2020-05-149	1023	DIBBS
515462	2019-11-325	484	DIBBS
R-00601-99	2019-11-325	484	DIBBS
515462	2019-10-283	772	DIBBS
R-00601-99	2019-10-283	772	DIBBS
515462	2019-04-108	1059	DIBBS
R-00601-99	2019-04-108	1059	DIBBS
2805-00-753-9838	2019-03-79	120	Hong Kong
2805-00-753-9838	2018-11-305	1054	DIBBS
2805-00-753-9838	2018-09-265	2400	US
2805-00-753-9838	2017-02-38	384	TR
2805-00-753-9838	2015-10-277	1233	DIBBS
2805-00-753-9838	2015-08-221	440	DIBBS
2805-00-753-9838	2015-05-125	439	DIBBS
2805-00-753-9838	2014-01-29	450	DIBBS
2805-00-753-9838	2013-06-156	1256	DIBBS
2805-00-753-9838	2013-02-32	1256	DIBBS
2805-00-753-9838	2012-08-244	142	DIBBS
2805-00-753-9838	2012-04-114	112	DIBBS
2805-00-753-9838	2011-06-154	909	DIBBS
2805-00-753-9838	2008-08-224	2143	DIBBS
2805-00-753-9838	2008-08-220	2143	DIBBS
2805-00-753-9838	2008-07-196	2143	DIBBS
2805-00-753-9838	2008-06-169	3001	DIBBS
2805-00-753-9838	2008-06-154	3001	DIBBS
2805-00-753-9838	2008-05-126	2143	DIBBS

Cross Reference | NSN 2805-00-753-9838

Part Number	Cage Code	Manufacturer
2805007539838	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
3230-R0-601-99	2D027	TRW AUTOMOTIVE INC. DBA TRW AUTOMOTIVE NORTH AMERICA
515462	02978	L-3 COMMUNICATIONS CORPORATION DBA COMBAT PROPULSION SYSTEMS
515462	R1120	SATAIR A/S
7539838	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
DEX2095	59875	EATON INDUSTRIAL CORPORATION DBA ARGO-TECH

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 2805-00-753-9838

Compare

Related Products | NSN 2805-00-753-9838

2805-00-753-9840, 2805-00-753-9841, 2805-00-753-9842, 2805-00-753-9844, 2805-00-753-9845

Technical Data | NSN 2805-00-753-9838

Characteristic	Specifications
ROTATION DIRECTION	COUNTERCLOCKWISE
MINIMUM ROTATION IN DEG	ANY ACCEPTABLE
STARTING LOAD RANGE	150.0 TO 255.0 POUNDS

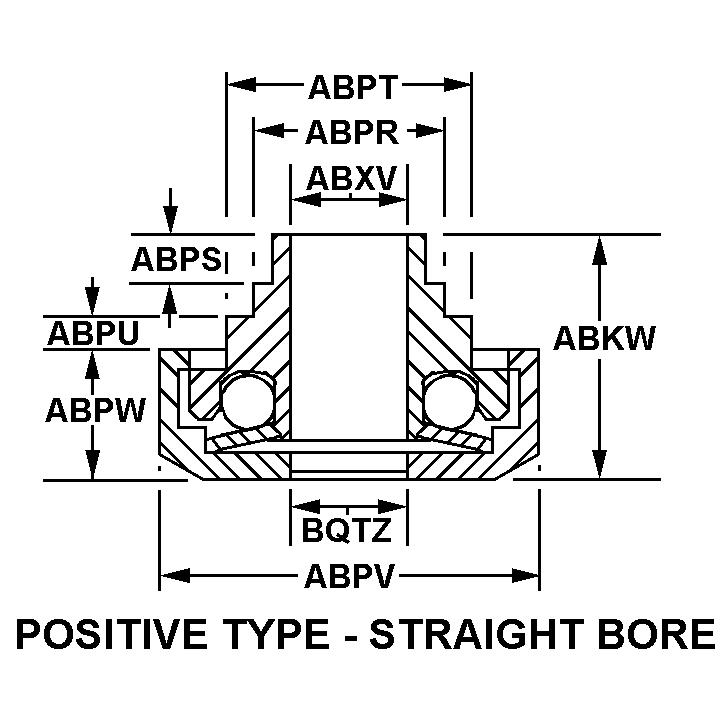

STYLE DESIGNATOR	Q6 POSITIVE TYPE-STRAIGHT BORE
OVERALL HEIGHT	0.778 INCHES MINIMUM AND 0.813 INCHES MAXIMUM
FIRST STEP DIAMETER	1.370 INCHES MINIMUM AND 1.375 INCHES MAXIMUM
FIRST STEP LENGTH	0.185 INCHES MINIMUM AND 0.195 INCHES MAXIMUM
SECOND STEP DIAMETER	1.725 INCHES MINIMUM AND 1.730 INCHES MAXIMUM
SECOND STEP LENGTH	0.151 INCHES MINIMUM AND 0.161 INCHES MAXIMUM
THIRD STEP DIAMETER	2.427 INCHES MINIMUM AND 2.447 INCHES MAXIMUM
THIRD STEP LENGTH	0.348 INCHES NOMINAL
BORE DIAMETER	0.810 INCHES MINIMUM AND 0.815 INCHES MAXIMUM
SPRING AND BALL RETAINER INSIDE DIAMETER	0.787 INCHES MINIMUM AND 0.792 INCHES MAXIMUM
III FSC APPLICATION DATA	GASOLINE ENGINE,NONAIRCRAFT
MANUFACTURERS CODE	19207
MFR SOURCE CONTROLLING REFERENCE	7539838

Restrictions/Controls & Freight Information | NSN 2805-00-753-9838

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051080	FAUCETS,BIBCOCKS,GATES VALVES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	593	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 2805-00-753-9838

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
