Product Details | PISTON RING

2805-00-586-2709 A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL.20628050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components30400042Miscellaneous Power Transmission Equipment43100028Compressors and Vacuum Pumps

Part Alternates: 10230005102, 102300-05102, 1U23000510, 1U2300-0510, 1U230005102, 1V230005102, 1V2300-05102, 2V9830, 2805-00-586-2709, 00-586-2709, 2805005862709, 005862709

Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components

Supply Group (FSG) NSN Assign. NIIN
28 21 DEC 1974 00-586-2709

Drawings & Photos | NSN 2805-00-586-2709


Cross Reference | NSN 2805-00-586-2709

Part Number Cage Code Manufacturer
102300-05102 22508 FISHER CONTROLS CO INC
1U2300-0510 22508 FISHER CONTROLS CO INC
1U230005102 22508 FISHER CONTROLS CO INC
1V2300-05102 22508 FISHER CONTROLS CO INC
2V9830 22508 FISHER CONTROLS CO INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2805-00-586-2709

Technical Data | NSN 2805-00-586-2709

Characteristic Specifications
MATERIAL STEEL OVERALL

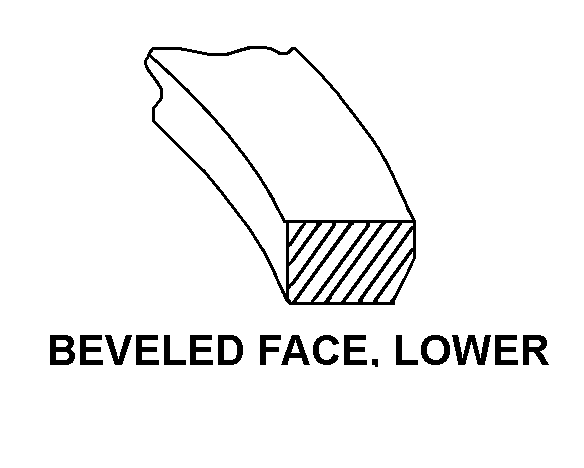

CROSS-SECTIONAL SHAPE STYLE A2 BEVELED FACE, LOWER
JOINT STYLE 1 VERTICAL JOINT
RING STYLE 1 CONCENTRIC
RADIAL WALL THICKNESS 0.5020 INCHES NOMINAL
OVERALL WIDTH 0.3125 INCHES NOMINAL
STANDARD BORE DIAMETER 2.460 INCHES
SPECIAL FEATURES BOTH INSIDE CORNERS CHAMFERED,45 DEG ANGLE,0.031 IN. LG
