NSN 2805-00-366-6139 DC109, 00-366-6139, 003666139
Product Details | PISTON RING
2805-00-366-6139 A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL.20628050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components30400042Miscellaneous Power Transmission Equipment43100028Compressors and Vacuum Pumps
Part Alternates: DC109, 2805-00-366-6139, 00-366-6139, 2805003666139, 003666139
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-366-6139 | 11459 ( RING, PISTON ) |
Drawings & Photos | NSN 2805-00-366-6139
Cross Reference | NSN 2805-00-366-6139
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DC109 | 66289 | WISCONSIN MOTORS LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-366-6139
Technical Data | NSN 2805-00-366-6139
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON OVERALL |
| SURFACE TREATMENT | PHOSPHATE MANGANESE OVERALL |

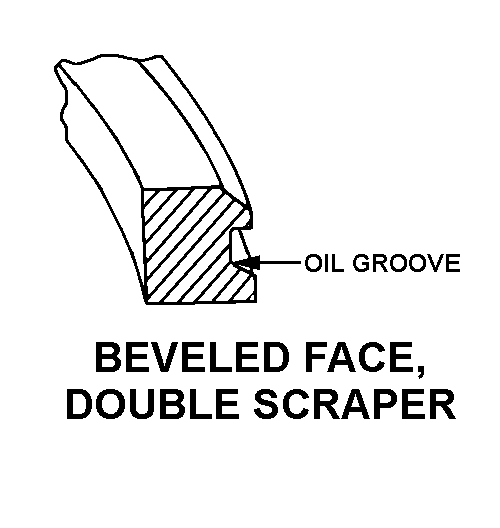

| CROSS-SECTIONAL SHAPE STYLE | A41 BEVELED FACE, DOUBLE SCRAPER |
| JOINT STYLE | 1 VERTICAL JOINT |
| RING STYLE | 1 CONCENTRIC |
| RADIAL WALL THICKNESS | 0.1250 INCHES MINIMUM AND 0.1350 INCHES MAXIMUM |
| OVERALL WIDTH | 0.1860 INCHES MINIMUM AND 0.1865 INCHES MAXIMUM |
| OIL PASSAGE TYPE AND QUANTITY | 1 GROOVE OUTSIDE PERIPHERY |
| STANDARD BORE DIAMETER | 3.000 INCHES |
| SPECIAL FEATURES | VERTICAL JOINT OPTIONAL; STAMP TOP ON TOP SIDE OF RING |
Restrictions/Controls & Freight Information | NSN 2805-00-366-6139
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 120840 | ENGINES INTERNAL COMBUSTION NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
