NSN 2805-00-358-3367 1329023, 1A60146, 858603
Product Details | ENGINE POPPET VALVE ROTOR
2805-00-358-3367 A spring loaded metallic device which is specifically designed to rotate the poppet valves of an internal combustion engine to prevent uneven wear and/or distortion of the valve seating surface. See also SEAT, HELICAL COMPRESSION SPRING.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: 1329023, 1A60146, 858603, RC17, 2805-00-358-3367, 00-358-3367, 2805003583367, 003583367
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1961 | 00-358-3367 | 22200 ( ROTOR, ENGINE POPPET VALVE ) |
Drawings & Photos | NSN 2805-00-358-3367
Cross Reference | NSN 2805-00-358-3367
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1329023 | 12204 | DAIMLER CHRYSLER |
| 1329023 | 86403 | CHRYSLER CORP SERVICE AND PARTS OPNS |
| 1A60146 | 22852 | SPALLA INC |
| 1A60146 | 95201 | NAPCO INTERNATIONAL LLC |
| 858603 | 12603 | CLARK EQUIPMENT CO |
| 858603 | 77237 | DANA OFF HIGHWAY PRODUCTS, LLC |
| RC17 | 31033 | TRW INC TRW INTL TRADE GOVERNMENT SALES DEPT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-358-3367
Technical Data | NSN 2805-00-358-3367
| Characteristic | Specifications |
|---|---|
| ROTATION DIRECTION | CLOCKWISE |
| MINIMUM ROTATION IN DEG | 360.0 |
| STARTING LOAD RANGE | ANY ACCEPTABLE |

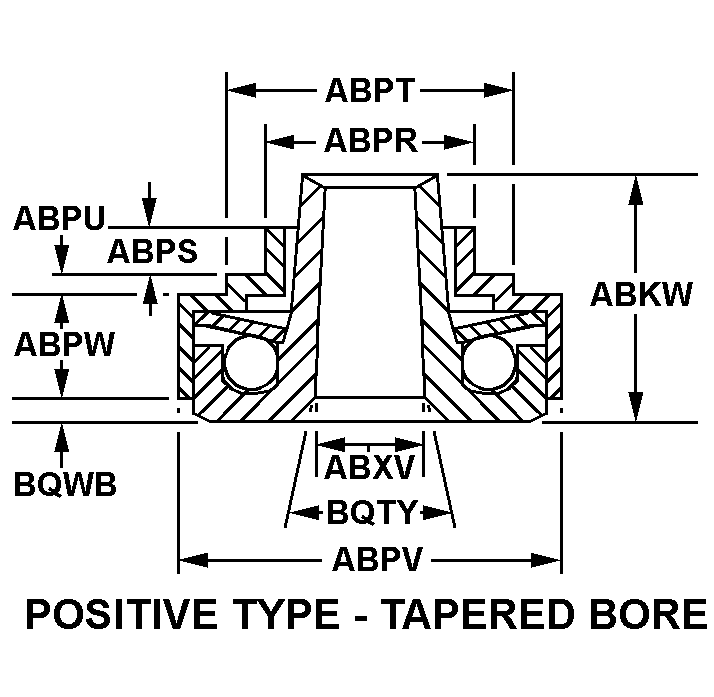

| STYLE DESIGNATOR | Q3 POSITIVE TYPE-TAPERED BORE |
| OVERALL HEIGHT | 0.469 INCHES NOMINAL |
| FIRST STEP DIAMETER | 0.812 INCHES NOMINAL |
| FIRST STEP LENGTH | 0.094 INCHES NOMINAL |
| SECOND STEP DIAMETER | ANY ACCEPTABLE |
| SECOND STEP LENGTH | ANY ACCEPTABLE |
| THIRD STEP DIAMETER | 1.219 INCHES NOMINAL |
| THIRD STEP LENGTH | 0.187 INCHES NOMINAL |
| BORE DIAMETER | 0.477 INCHES NOMINAL |
| TAPERED BORE INCLUDED ANGLE IN DEG | REDUCES ON OPPOSITE END TO 0.386 IN. 0.312 IN. LG |
| DISTANCE FROM END TO NEAREST STEP | 0.062 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2805-00-358-3367
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2805-00-358-3367
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
