Product Details | VALVE SPRING RETAINER LOCK

2805-00-353-8635 A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers.20428050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components43100028Compressors and Vacuum Pumps

Part Alternates: D6001348, D600-1-348, D600I00348, D600I348, LK233, R233, 022380, 0922380, 09-22380, 22380, 857700, 2805-00-353-8635, 00-353-8635, 2805003538635, 003538635

Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components

Supply Group (FSG) NSN Assign. NIIN
28 01 JAN 1963 00-353-8635

Drawings & Photos | NSN 2805-00-353-8635


Cross Reference | NSN 2805-00-353-8635

Part Number Cage Code Manufacturer
022380 11083 CATERPILLAR INC. DBA CATERPILLAR
09-22380 16662 LIFT PARTS MFG CO INC DIV OF ECHLIN MFG CO THE
22380 78640 MITSUBISHI CATERPILLAR FORKLIFT AMERICA INC
857700 12603 CLARK EQUIPMENT CO
857700 16662 LIFT PARTS MFG CO INC DIV OF ECHLIN MFG CO THE
857700 66654 TVH PARTS CO.
D600-1-348 87823 WOLVERINE DIESEL POWER CO
D600I00348 14351 TELEDYNE CONTINENTAL MOTORS INDUSTRIAL PRODUCTS DIV
D600I348 14351 TELEDYNE CONTINENTAL MOTORS INDUSTRIAL PRODUCTS DIV
D600I348 18859 DUPLEX DIV WARNER AND SWASEY CO
LK233 31033 TRW INC TRW INTL TRADE GOVERNMENT SALES DEPT
LK233 78557 TOLEDO PICKLING & STEEL SALES
R233 59875 EATON INDUSTRIAL CORPORATION DBA ARGO-TECH

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2805-00-353-8635

Technical Data | NSN 2805-00-353-8635

Characteristic Specifications
MATERIAL STEEL
METALLIC HARDNESS RATING NOT RATED
CASEHARDENING INDICATOR CASEHARDENED

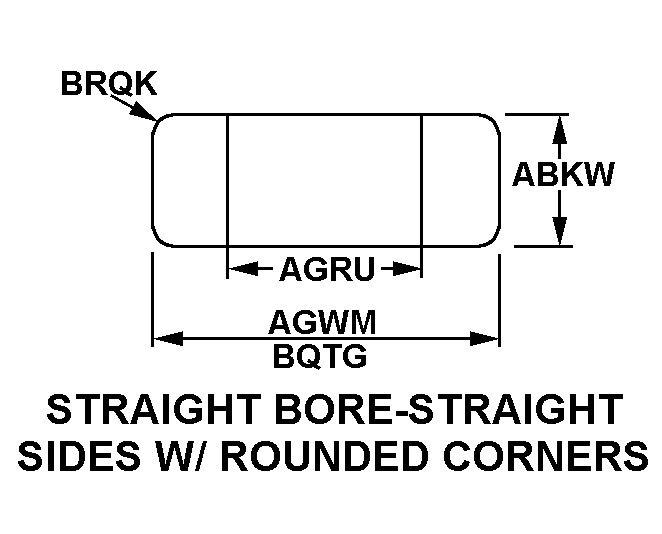

STYLE DESIGNATOR L29 STRAIGHT BORE-STRAIGHT SIDES W/ROUNDED CORNERS
OVERALL HEIGHT 0.187 INCHES NOMINAL
LARGEST INSIDE DIAMETER 0.282 INCHES NOMINAL
LARGEST OUTSIDE DIAMETER 0.521 INCHES NOMINAL
RADIUS AT TOP OUTSIDE DIAMETER ANY ACCEPTABLE
THREAD PROVISION UNTHREADED

Restrictions/Controls & Freight Information | NSN 2805-00-353-8635

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 2805-00-353-8635

Category Code Description
Cognizance Codes9CNavy-owned stocks of defense construction material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9CDefense Supply Center Columbus
Columbus, OH 43215
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Z
EA : Each
