NSN 2805-00-278-2134 P1108005, P1108-005, 70015R1
Product Details | PISTON PIN
2805-00-278-2134 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: P1108005, P1108-005, 70015R1, 2805-00-278-2134, 00-278-2134, 2805002782134, 002782134
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-278-2134 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 2805-00-278-2134
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-278-2134
Technical Data | NSN 2805-00-278-2134
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-633, C1015-CANCELED |
| METALLIC HARDNESS RATING | 60.0 MINIMUM ROCKWELL C AND 66.0 MAXIMUM ROCKWELL C |
| CASEHARDENING INDICATOR | CASEHARDENED |
| BODY STYLE | 5A CHAMFERED ENDS |
| OUTSIDE DIAMETER | 0.87980 INCHES MINIMUM AND 0.88000 INCHES MAXIMUM |
| BODY LENGTH | 2.9450 INCHES MINIMUM AND 2.9560 INCHES MAXIMUM |
| END CHAMFER ANGLE IN DEG | 45.0 |

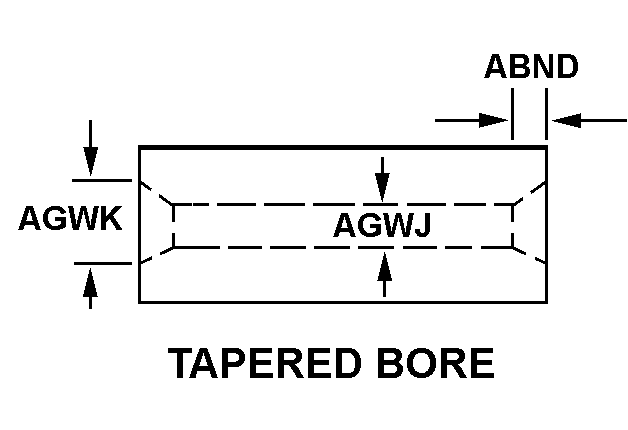

| BORE STYLE | 2 TAPERED BORE |
| TAPER LENGTH | 1.0625 INCHES MINIMUM AND 1.1250 INCHES MAXIMUM |
| BORE SMALLEST DIAMETER | 0.4900 INCHES MINIMUM AND 0.5100 INCHES MAXIMUM |
| LARGEST BORE DIAMETER | 0.7344 INCHES MINIMUM AND 0.7656 INCHES MAXIMUM |
| III FSC APPLICATION DATA | ENGINE,GASOLINE,NONAIRCRAFT |
