NSN 2805-00-277-2944 F600A301, 851046, 00-277-2944
Product Details | PISTON RING
2805-00-277-2944 A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL.20628050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components30400042Miscellaneous Power Transmission Equipment43100028Compressors and Vacuum Pumps
Part Alternates: F600A301, 851046, 2805-00-277-2944, 00-277-2944, 2805002772944, 002772944
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-277-2944 | 11459 ( RING, PISTON ) |
Drawings & Photos | NSN 2805-00-277-2944
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-277-2944
Technical Data | NSN 2805-00-277-2944
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON OVERALL |

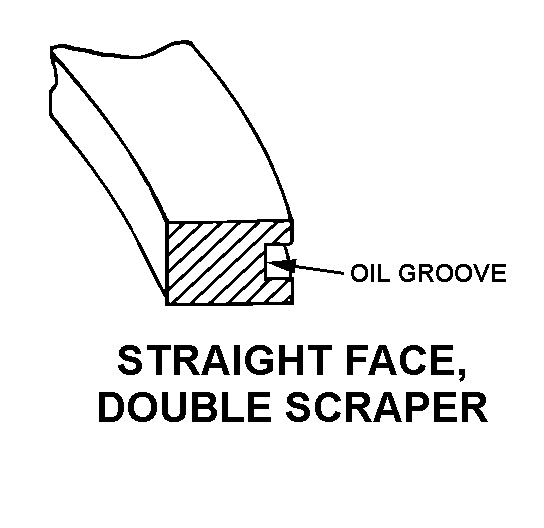

| CROSS-SECTIONAL SHAPE STYLE | A34 STRAIGHT FACE, DOUBLE SCRAPER |
| JOINT STYLE | 2 DIAGONAL JOINT |
| RING STYLE | 1 CONCENTRIC |
| RADIAL WALL THICKNESS | 0.1300 INCHES MINIMUM AND 0.1340 INCHES MAXIMUM |
| OVERALL WIDTH | 0.1230 INCHES MINIMUM AND 0.1240 INCHES MAXIMUM |
| OIL PASSAGE TYPE AND QUANTITY | 1 GROOVE OUTSIDE PERIPHERY |
| STANDARD BORE DIAMETER | 3.187 INCHES |
Restrictions/Controls & Freight Information | NSN 2805-00-277-2944
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126700 | PISTON RINGS,IRON |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2805-00-277-2944
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
