NSN 2805-00-097-2741 0189435-00, 03903NN103, 0-3903NN103
Product Details | DIRT AND LIQUID DEFLECTOR
2805-00-097-2741 An item so shaped as to deflect one or more of the following: dust, dirt, grease, oil, or liquid into a desired direction or away from a particular area. Can be attached to a stationary or with a revolving part. May or may not be a mechanical device.21516150056Helicopter Rotor Blades, Drive Mechanisms and Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment16800049Miscellaneous Aircraft Accessories and Components25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components25400035Vehicular Furniture and Accessories28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components28350096Gas Turbines and Jet Engines; Non-Aircraft Prime Mover, Aircraft Non-Prime Mover, and Components29950042Miscellaneous Engine Accessories, Aircraft43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps49300041Lubrication and Fuel Dispensing Equipment53400020Hardware, Commercial
Part Alternates: 0189435-00, 03903NN103, 0-3903NN103, 1402961, 16409, 2040E6599, 204UE6599, 8332584, 2805-00-097-2741, 00-097-2741, 2805000972741, 018943500, 000972741
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-097-2741 | 10255 ( DEFLECTOR, DIRT AND LIQUID ) |
Drawings & Photos | NSN 2805-00-097-2741
Cross Reference | NSN 2805-00-097-2741
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0-3903NN103 | 02860 | AMERICAN SEATING COMPANY |
| 0189435-00 | 83299 | NACCO MATERIALS HANDLING GROUP INC DBA YALE MATERIALS HANDLING |
| 1402961 | 12204 | DAIMLER CHRYSLER |
| 16409 | 44185 | NMC/WOLLARD, INC. |
| 2040E6599 | 83299 | NACCO MATERIALS HANDLING GROUP INC DBA YALE MATERIALS HANDLING |
| 204UE6599 | 83299 | NACCO MATERIALS HANDLING GROUP INC DBA YALE MATERIALS HANDLING |
| 8332584 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-097-2741
Technical Data | NSN 2805-00-097-2741
| Characteristic | Specifications |
|---|---|

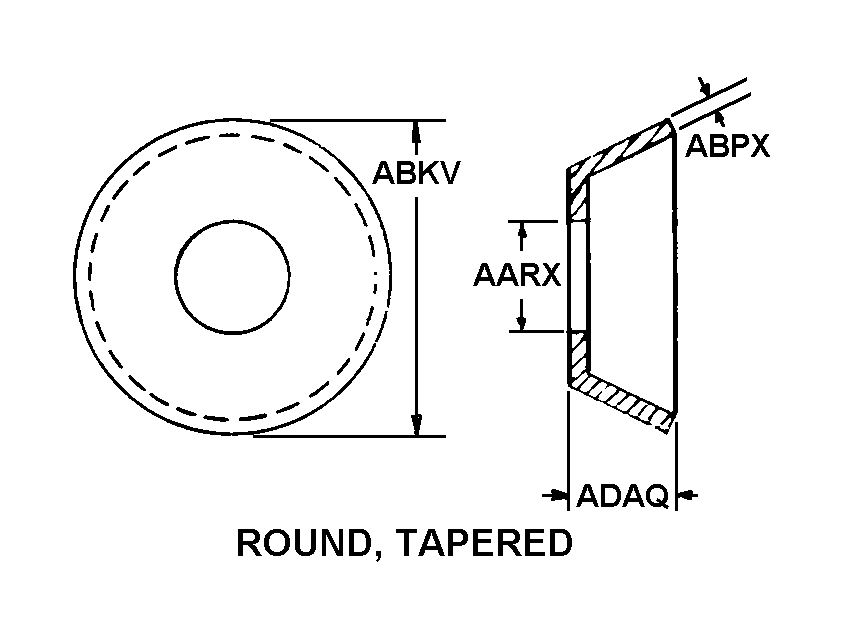

| STYLE DESIGNATOR | 26 ROUND, TAPERED |
| INSIDE DIAMETER | 1.547 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.028 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.030 INCHES NOMINAL |
| BODY LENGTH | 0.228 INCHES NOMINAL |
| MATERIAL | STEEL |
| INTERNAL KEYWAY QUANTITY | 1 |
| INTERNAL KEYWAY WIDTH | 0.281 INCHES NOMINAL |
| DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY | 0.945 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | 3930-00-181-3217 |
| III FSC APPLICATION DATA | GASOLINE ENGINE,NONAIRCRAFT |
Restrictions/Controls & Freight Information | NSN 2805-00-097-2741
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019490 | AUTO PARTS: SHIELDS,BRAKE DUST |
| Less than car load rating | ||
| Less than truck load rating | B | 300.0 |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2805-00-097-2741
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
