Product Details | VALVE SPRING RETAINER LOCK
2805-00-035-6819 A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers.20428050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components43100028Compressors and Vacuum Pumps
Part Alternates: H302813, 302813, 6302813, 2805-00-035-6819, 00-035-6819, 2805000356819, 000356819
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-035-6819 | 15883 ( LOCK, VALVE SPRING RETAINER ) |
Drawings & Photos | NSN 2805-00-035-6819
Cross Reference | NSN 2805-00-035-6819
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 302813 | 1ML14 | D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS |
| 302813 | 28265 | HERCULES ENGINE CO INC |
| 6302813 | 1ML14 | D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS |
| 6302813 | 28265 | HERCULES ENGINE CO INC |
| H302813 | 1ML14 | D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS |
| H302813 | 28265 | HERCULES ENGINE CO INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-035-6819
Technical Data | NSN 2805-00-035-6819
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | CASEHARDENED |

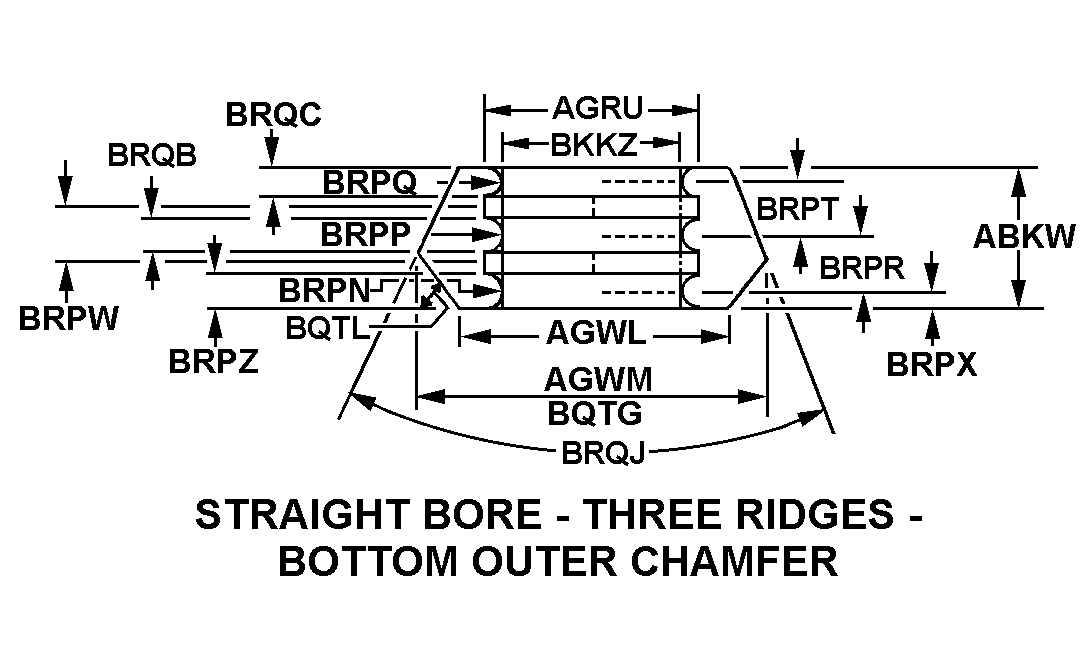

| STYLE DESIGNATOR | L21 STRAIGHT BORE-THREE RIDGES-BOTTOM OUTER CHAMFER |
