NSN 2805-00-007-4790 T32350, 00-007-4790, 000074790
Product Details | CYLINDER SLEEVE
2805-00-007-4790 A tubular metal item designed primarily as a replaceable wear surface within the cylinder bore of a piston type internal combustion engine, compressor, or reciprocating pump.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps
Part Alternates: T32350, 2805-00-007-4790, 00-007-4790, 2805000074790, 000074790
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 06 JUL 1972 | 00-007-4790 | 16756 ( CYLINDER SLEEVE ) |
Drawings & Photos | NSN 2805-00-007-4790
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-007-4790
Technical Data | NSN 2805-00-007-4790
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |
| DESIGN TYPE | DRY |

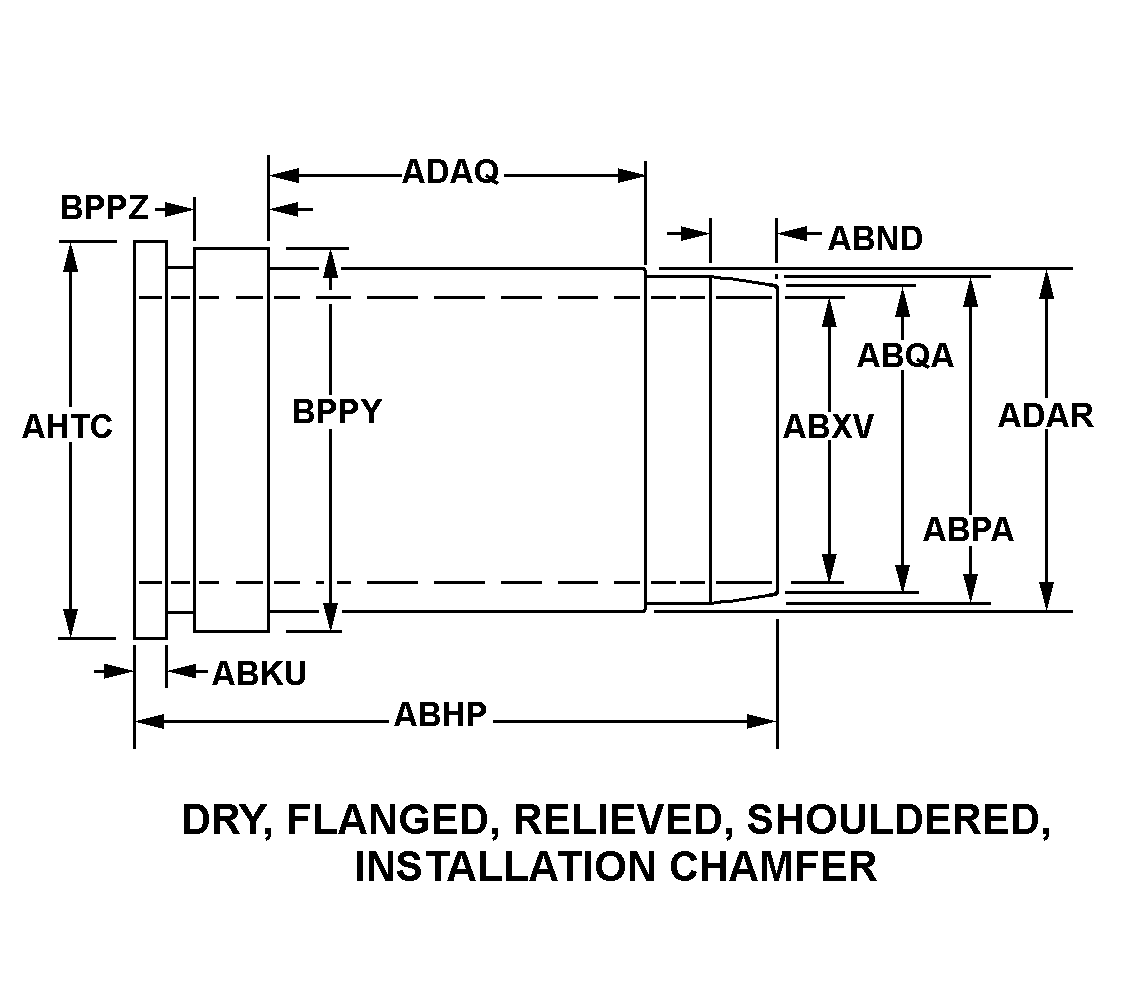

| STYLE DESIGNATOR | A2 DRY, FLANGED, RELIEVED, SHOULDERED, INSTALLATION CHAMFER |
| OVERALL LENGTH | 7.218 INCHES NOMINAL |
| FLANGE THICKNESS | 0.281 INCHES NOMINAL |
| TAPER LENGTH | 0.250 INCHES NOMINAL |
| UNDERCUT DIAMETER | 4.250 INCHES NOMINAL |
| TAPER MINOR DIAMETER | 3.969 INCHES NOMINAL |
| BORE DIAMETER | 3.875 INCHES NOMINAL |
| BODY LENGTH | 4.500 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 4.437 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 4.812 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER UNDER FLANGE | 4.562 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER WIDTH UNDER FLANGE | 0.500 INCHES NOMINAL |
| VALVE RECESS | NOT INCLUDED |
| TOP INSIDE CHAMFER | NOT INCLUDED |
| BOTTOM INSIDE CHAMFER | NOT INCLUDED |
| TOP INTAKE PORT | NOT INCLUDED |
| INTAKE HOLE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2805-00-007-4790
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114730 | BARRELS/LINERS/SLEEVES I/C ENGINE |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2805-00-007-4790
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
