Product Details | PNEUMATIC VALVE CAP

2640-01-406-7120 A pneumatic fitting primarily designed to fasten on or into another pneumatic fitting to prevent the entrance of foreign matter into the valve stem. It may incorporate features for sealing, depressing, or removal of the valve core. It may be threaded on one or both ends. Excludes CAP, PROTECTIVE, DUST AND MOISTURE SEAL.

Part Alternates: 1155, 2640-01-406-7120, 01-406-7120, 2640014067120, 014067120

Tires and Tubes | Tire Rebuilding and Tire and Tube Repair Materials

Supply Group (FSG) NSN Assign. NIIN
26 10 JAN 1995 01-406-7120

Drawings & Photos | NSN 2640-01-406-7120


Demand History | NSN 2640-01-406-7120

Part Number Request Date QTY Origin
1155 2024-09-260 1 United States

Cross Reference | NSN 2640-01-406-7120

Part Number Cage Code Manufacturer
1155 27783 SCHRADER-BRIDGEPORT INTERNATIONAL INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2640-01-406-7120

Technical Data | NSN 2640-01-406-7120

Characteristic Specifications

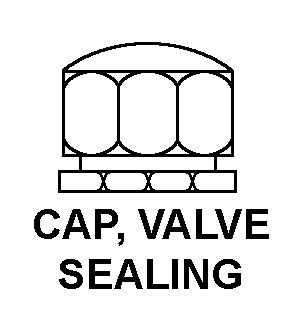

STYLE DESIGNATOR B15 CAP, VALVE SEALING

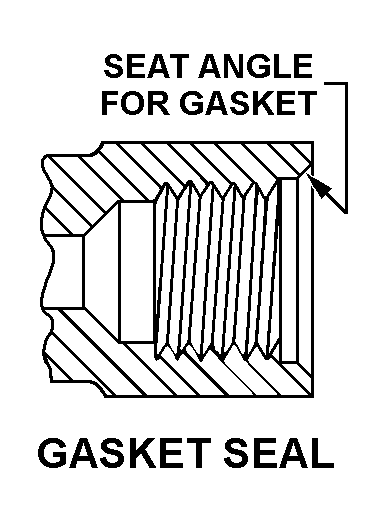

CONNECTION STYLE G7 GASKET SEAL
NOMINAL THREAD SIZE 0.307 INCHES INTERNAL
THREAD QUANTITY PER INCH 32 INTERNAL
SPECIAL FEATURES CAP LENGTH 14.2 MM; CAP DIA 11.2 MM
III END ITEM IDENTIFICATION TRUCK 1.5 TONNE 4 X 4; LIGHT SUPPORT VEHICLE WHEELED; SCHRADER AUTOMOTIVE INC

Restrictions/Controls & Freight Information | NSN 2640-01-406-7120

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
