Product Details | TIRE VALVE EXTENSION

2640-00-871-5311 A metal, or a combination metal and rubber tube, designed to be fitted to a pneumatic tire valve stem, to increase overall length.

Part Alternates: 422, 518717, 5905, 2640-00-871-5311, 00-871-5311, 2640008715311, 008715311

Tires and Tubes | Tire Rebuilding and Tire and Tube Repair Materials

Supply Group (FSG) NSN Assign. NIIN
26 01 JAN 1962 00-871-5311

Drawings & Photos | NSN 2640-00-871-5311


Demand History | NSN 2640-00-871-5311

Part Number Request Date QTY Origin
422 2020-06-182 2 United States

Cross Reference | NSN 2640-00-871-5311

Part Number Cage Code Manufacturer
422 27783 SCHRADER-BRIDGEPORT INTERNATIONAL INC
422 53477 SCOVILL INC SCHRADER BELLOWS DIV
518717 12603 CLARK EQUIPMENT CO
518717 40152 VME AMERICAS INC SUB OF VME GROUP N V
518717 77237 DANA OFF HIGHWAY PRODUCTS, LLC
5905 27783 SCHRADER-BRIDGEPORT INTERNATIONAL INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2640-00-871-5311

Technical Data | NSN 2640-00-871-5311

Characteristic Specifications
DESIGN TYPE RIGID-METAL

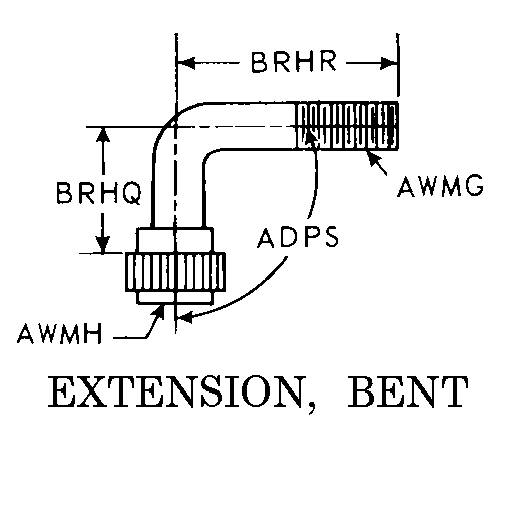

STYLE DESIGNATOR C1 EXTENSION, BENT
INSIDE ANGLE IN DEG 90.0
EXTERNAL THREAD SIZE 0.482-26
INTERNAL THREAD SIZE 0.406-28
EFFECTIVE HEIGHT 1.000 INCHES NOMINAL
DISTANCE FROM CENTER TO END 3.000 INCHES NOMINAL
VALVE CORE ACCOMMODATION INCLUDED
SIZE DESIGNATION STANDARD
BORE SIZE DESIGNATION OVERSIZE
FURNISHED ITEMS AND QUANTITY LOCK NUTS,HEX,2;CAP,VALVE,1;CORE,VALVE ,1
UNIT PACKAGE QUANTITY 1
UNIT PACKAGE TYPE BOX

Restrictions/Controls & Freight Information | NSN 2640-00-871-5311

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 188320 VALVES PNEUMATIC TIRES
Less than car load rating J 100.2
Less than truck load rating R 65.0
Water commodity Code 584 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
