NSN 2640-00-859-0381 RW11, 00-859-0381, 008590381
Product Details | PNEUMATIC TIRE VALVE STEM WASHER
2640-00-859-0381 A round or bridge type washer used to maintain alignment, and to make an air tight connection of valve stem to the tube.
Part Alternates: RW11, 2640-00-859-0381, 00-859-0381, 2640008590381, 008590381
Tires and Tubes | Tire Rebuilding and Tire and Tube Repair Materials
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
26 | 01 JAN 1962 | 00-859-0381 | 07443 ( VALVE STEM WASHER, PNEUMATIC TIRE ) |
Cross Reference | NSN 2640-00-859-0381
Part Number | Cage Code | Manufacturer |
---|---|---|
RW11 | 79934 | THE TIRE & RIM ASSOCIATION INC |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 2640-00-859-0381
Related Products | NSN 2640-00-859-0381
Technical Data | NSN 2640-00-859-0381
Characteristic | Specifications |
---|---|

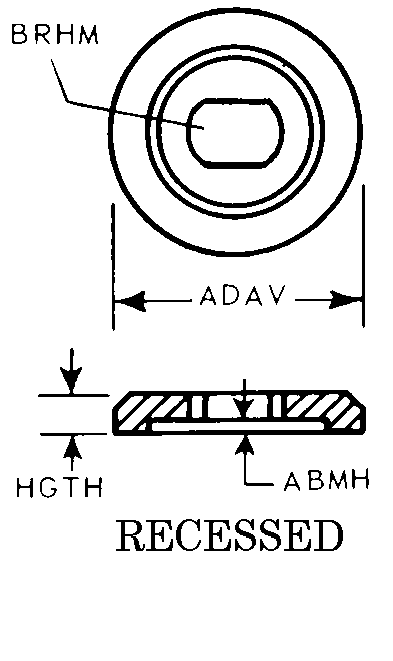

STYLE DESIGNATOR | A1 RECESSED |
RECESS DEPTH | 0.050 INCHES NOMINAL |
OVERALL DIAMETER | 0.906 INCHES NOMINAL |
VALVE SIZE FOR WHICH DESIGNED | 0.482-26 |
HEIGHT | 1.125 INCHES NOMINAL |
MATERIAL | BRASS |
UNIT PACKAGE QUANTITY | 10 |
UNIT PACKAGE TYPE | BOX |
Restrictions/Controls & Freight Information | NSN 2640-00-859-0381
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 188320 | VALVES PNEUMATIC TIRES |
Less than car load rating | J | 100.2 |
Less than truck load rating | R | 65.0 |
Water commodity Code | 584 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
