NSN 2640-00-678-8616 A-149, AA52611, A-A-52611
Product Details | PNEUMATIC VALVE CAP
2640-00-678-8616 A pneumatic fitting primarily designed to fasten on or into another pneumatic fitting to prevent the entrance of foreign matter into the valve stem. It may incorporate features for sealing, depressing, or removal of the valve core. It may be threaded on one or both ends. Excludes CAP, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: A-149, AA52611, A-A-52611, AA5261142TRVC7, A-A-52611-4-2-TRVC7, TY-IV/CL2 /TR-VC7, TYIV/CL2/TR VC7, TYIVCL2TRVC7, ZZV25, ZZ-V-25, VC7, 4659, 777, 8971H, 9K7951, 9K-7951, A149, 2640-00-678-8616, 00-678-8616, 2640006788616, 006788616
Tires and Tubes | Tire Rebuilding and Tire and Tube Repair Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 26 | 01 JAN 1961 | 00-678-8616 | 05414 ( CAP, PNEUMATIC VALVE ) |

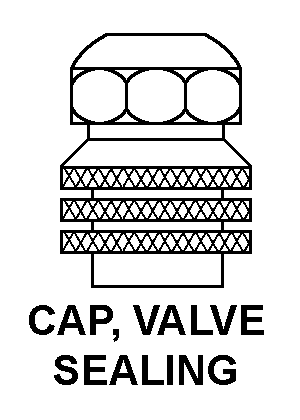

Drawings & Photos | NSN 2640-00-678-8616
Demand History | NSN 2640-00-678-8616
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2640-00-678-8616 | 2021-07-210 | 1318 | DIBBS |
| 2640-00-678-8616 | 2017-01-03 | 765 | DIBBS |
| 2640-00-678-8616 | 2014-07-209 | 2835 | DIBBS |
| 2640-00-678-8616 | 2012-07-208 | 1417 | DIBBS |
| 2640-00-678-8616 | 2012-02-37 | 3 | DIBBS |
| 2640-00-678-8616 | 2012-02-37 | 6 | DIBBS |
| ZZV25 | 2009-04-111 | 10 | India |
| 2640-00-678-8616 | 2008-03-80 | 1800 | DIBBS |
| 2640-00-678-8616 | 2007-10-302 | 176 | DIBBS |
| 2640-00-678-8616 | 2007-07-187 | 958 | DIBBS |
| 2640-00-678-8616 | 2007-06-179 | 1119 | DIBBS |
| 2640-00-678-8616 | 2007-06-159 | 3350 | DIBBS |
Cross Reference | NSN 2640-00-678-8616
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4659 | 27783 | SCHRADER-BRIDGEPORT INTERNATIONAL INC |
| 4659 | 53477 | SCOVILL INC SCHRADER BELLOWS DIV |
| 777 | 08588 | NATIONAL DISTILLERS AND CHEMICAL CORP BRIDGEPORT BRASS CO DIV |
| 777 | 64650 | BRIDGEPORT-PIEDMONT MFG CO DIV OF BRIDGE PRODUCTS INC |
| 8971H | 17875 | EATON CORPORATION DBA AIR CONTROLS DIVISION DIV AIR |
| 9K-7951 | U8468 | FINNING UK LTD |
| 9K7951 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
| A-149 | 63900 | HALTEC CORPORATION |
| A-A-52611 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-52611-4-2-TRVC7 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| TY-IV/CL2 /TR-VC7 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| TYIV/CL2/TR VC7 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| VC7 | 79934 | THE TIRE & RIM ASSOCIATION INC |
| ZZ-V-25 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2640-00-678-8616
Related Products | NSN 2640-00-678-8616
Technical Data | NSN 2640-00-678-8616
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| STYLE DESIGNATOR | B9 CAP, VALVE SEALING |
| CONNECTION STYLE | G1 PLAIN |
| THREAD SERIES DESIGNATOR | UNS INTERNAL |
| NOMINAL THREAD SIZE | 0.482 INCHES INTERNAL |
| THREAD QUANTITY PER INCH | 26 INTERNAL |
| THREAD PITCH DIAMETERS | 0.4600 TO 0.4640 INCHES INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| FEATURES PROVIDED | DRY HEAT RESISTANT GASKET |
| MANUFACTURERS CODE | 81348 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | TYIV/CL2/TR VC7 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | ZZ-V-25 |
Restrictions/Controls & Freight Information | NSN 2640-00-678-8616
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 584 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2640-00-678-8616
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | P | Other Automotive Categories |
| Weapons Systems/End Item or Homogeneous Group | PP | Tires and Tubes (DoD Integrated Manager) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
