NSN 2640-00-267-2982 MS513761, MS51376-1, AA52611
Product Details | PNEUMATIC VALVE CAP
2640-00-267-2982 A pneumatic fitting primarily designed to fasten on or into another pneumatic fitting to prevent the entrance of foreign matter into the valve stem. It may incorporate features for sealing, depressing, or removal of the valve core. It may be threaded on one or both ends. Excludes CAP, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: MS513761, MS51376-1, AA52611, A-A-52611, AA5261142TRVC6, A-A-52611-4-2-TRVC6, HS4439, TY-IV/CL2/TR-VC6, TYIVCL2TRVC6, X2196, ZZ-V-25/TY4/CL2, ZZV25TY4CL2, VC6, T776, 0834439, 083-4439, 1450, 520922, 588492, 776, 8971, 9116292, 2640-00-267-2982, 00-267-2982, 2640002672982, 002672982
Tires and Tubes | Tire Rebuilding and Tire and Tube Repair Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 26 | 01 JAN 1963 | 00-267-2982 | 05414 ( CAP, PNEUMATIC VALVE ) |

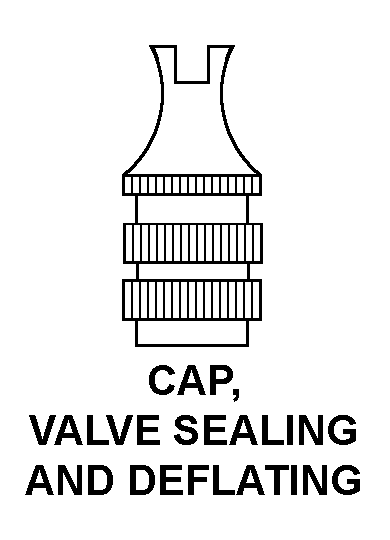

Drawings & Photos | NSN 2640-00-267-2982
Demand History | NSN 2640-00-267-2982
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1450 | 2020-06-178 | 0 | |
| 1450 | 2019-01-04 | 80 | Singapore |
| 1450 | 2015-01-04 | 2 | US |
| 1450 | 2013-03-87 | 1 | United States |
| 1450 | 2011-12-335 | 1 | Sweden |
| 2640-00-267-2982 | 2008-04-116 | 1977 | DIBBS |
Cross Reference | NSN 2640-00-267-2982
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 083-4439 | 95685 | MARATHON LE TOURNEAU CO |
| 1450 | 27783 | SCHRADER-BRIDGEPORT INTERNATIONAL INC |
| 1450 | 53477 | SCOVILL INC SCHRADER BELLOWS DIV |
| 520922 | 21450 | ARMY WEAPONS COMMAND ATTN AMSWE-REE-S |
| 588492 | 12603 | CLARK EQUIPMENT CO |
| 588492 | 1X0J7 | VOLVO CONSTRUCTION EQUIPMENT NORTH AMERICA, LLC |
| 588492 | 40152 | VME AMERICAS INC SUB OF VME GROUP N V |
| 776 | 08588 | NATIONAL DISTILLERS AND CHEMICAL CORP BRIDGEPORT BRASS CO DIV |
| 8971 | 17875 | EATON CORPORATION DBA AIR CONTROLS DIVISION DIV AIR |
| 9116292 | 30379 | EUCLID INC |
| 9116292 | 97907 | TEREX CORP |
| A-A-52611 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-52611-4-2-TRVC6 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| HS4439 | 95685 | MARATHON LE TOURNEAU CO |
| MS51376-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| T776 | 77335 | PLEWS, INC. DBA PLEWS EDELMANN |
| TY-IV/CL2/TR-VC6 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| VC6 | 79934 | THE TIRE & RIM ASSOCIATION INC |
| X2196 | 03092 | AMERICAN TRACTOR EQUIPMENT CORP |
| ZZ-V-25/TY4/CL2 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2640-00-267-2982
Related Products | NSN 2640-00-267-2982
Technical Data | NSN 2640-00-267-2982
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-495 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | B2 CAP, VALVE SEALING AND DEFLATING |
| CONNECTION STYLE | G1 PLAIN |
| THREAD SERIES DESIGNATOR | UNS INTERNAL |
| NOMINAL THREAD SIZE | 0.485 INCHES INTERNAL |
| THREAD QUANTITY PER INCH | 26 INTERNAL |
| THREAD CLASS | 2B INTERNAL |
| THREAD PITCH DIAMETERS | 0.4416 TO 0.4456 INCHES INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| FEATURES PROVIDED | DRY HEAT RESISTANT GASKET |
| NONDEFINITIVE SPEC/STD DATA | 4 TYPE AND 2 CLASS |
| MANUFACTURERS CODE | 81348 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | ZZ-V-25/TY4/CL2 |
Restrictions/Controls & Freight Information | NSN 2640-00-267-2982
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 584 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2640-00-267-2982
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
