NSN 2640-00-255-9916 7742A, 00-255-9916, 002559916
Product Details | TIRE VALVE EXTENSION
2640-00-255-9916 A metal, or a combination metal and rubber tube, designed to be fitted to a pneumatic tire valve stem, to increase overall length.
Part Alternates: 7742A, 2640-00-255-9916, 00-255-9916, 2640002559916, 002559916
Tires and Tubes | Tire Rebuilding and Tire and Tube Repair Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 26 | 01 JAN 1963 | 00-255-9916 | 07415 ( VALVE EXTENSION, TIRE ) |
Drawings & Photos | NSN 2640-00-255-9916
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2640-00-255-9916
Related Products | NSN 2640-00-255-9916
Technical Data | NSN 2640-00-255-9916
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | RIGID-METAL |

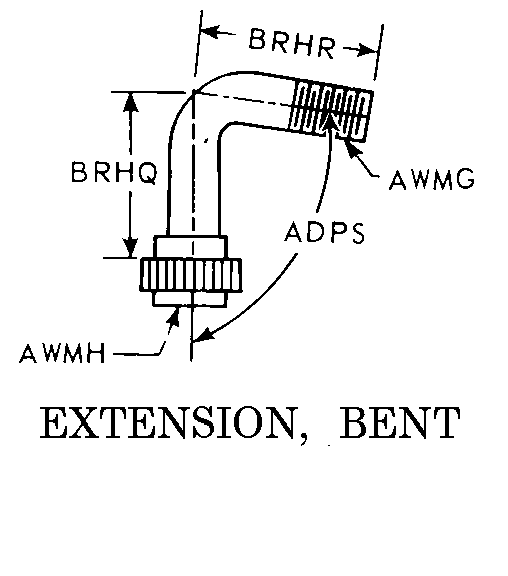

| STYLE DESIGNATOR | C3 EXTENSION, BENT |
| INSIDE ANGLE IN DEG | 84.500 |
| EXTERNAL THREAD SIZE | 0.302-32 |
| INTERNAL THREAD SIZE | 0;311-32 |
| EFFECTIVE HEIGHT | 1.000 INCHES NOMINAL |
| DISTANCE FROM CENTER TO END | 1.250 INCHES NOMINAL |
| VALVE CORE ACCOMMODATION | NOT INCLUDED |
| BORE SIZE DESIGNATION | STANDARD |
| FURNISHED ITEMS AND QUANTITY | CAP VALVE-1,CORE EXTENSION-1 |
Restrictions/Controls & Freight Information | NSN 2640-00-255-9916
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 188320 | VALVES PNEUMATIC TIRES |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 584 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2640-00-255-9916
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9A | Navy-owned stocks of parts peculiar to combat and tactical vehicles of Army design Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
