Product Details | TIRE VALVE EXTENSION

2640-00-244-0442 A metal, or a combination metal and rubber tube, designed to be fitted to a pneumatic tire valve stem, to increase overall length.

Part Alternates: A12593X, 347, 7381, 11611906, 130, 2640-00-244-0442, 00-244-0442, 2640002440442, 002440442

Tires and Tubes | Tire Rebuilding and Tire and Tube Repair Materials

Supply Group (FSG) NSN Assign. NIIN
26 01 JAN 1963 00-244-0442

Drawings & Photos | NSN 2640-00-244-0442


Demand History | NSN 2640-00-244-0442

Part Number Request Date QTY Origin
347 2022-06-06 542 DIBBS
7381 2022-06-06 542 DIBBS
347 2022-05-25 542 DIBBS
7381 2022-05-25 542 DIBBS
2640-00-244-0442 2020-01-07 3 US
7381 2018-07-19 1 United States
7381 2015-12-02 3 United States
7381 2014-01-03 2 United States
347 2012-03-15 2 US
130 2012-02-08 2343 IL
2640-00-244-0442 2012-01-02 5 ZA
2640-00-244-0442 2011-11-27 4 ZA
2640-00-244-0442 2011-11-25 5 ZA
7381 2011-11-22 4 ZA
2640-00-244-0442 2007-10-23 500 DIBBS
2640-00-244-0442 2007-10-05 2000 DIBBS
2640-00-244-0442 2007-09-05 351 DIBBS
2640-00-244-0442 2007-08-24 20 United States
2640-00-244-0442 2007-07-30 142 DIBBS

Cross Reference | NSN 2640-00-244-0442

Part Number Cage Code Manufacturer
11611906 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
130 08588 NATIONAL DISTILLERS AND CHEMICAL CORP BRIDGEPORT BRASS CO DIV
347 17875 EATON CORPORATION DBA AIR CONTROLS DIVISION DIV AIR
347 39BV2 DILL AIR CONTROLS PRODUCTS, LLC
7381 27783 SCHRADER-BRIDGEPORT INTERNATIONAL INC
7381 53477 SCOVILL INC SCHRADER BELLOWS DIV
A12593X 65282 WHITE MOTOR CORP

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2640-00-244-0442

Technical Data | NSN 2640-00-244-0442

Characteristic Specifications
DESIGN TYPE RIGID-METAL

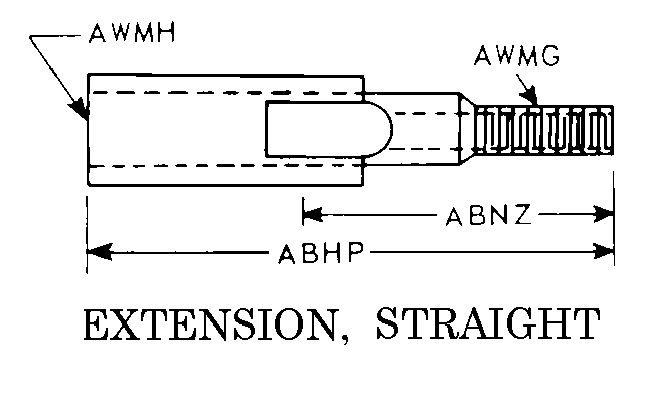

STYLE DESIGNATOR B6 EXTENSION, STRAIGHT
OVERALL LENGTH 4.000 INCHES NOMINAL
EFFECTIVE LENGTH 3.062 INCHES NOMINAL
EXTERNAL THREAD SIZE 0.302-32
INTERNAL THREAD SIZE 0.311-32
VALVE CORE ACCOMMODATION NOT INCLUDED
BORE SIZE DESIGNATION STANDARD
FURNISHED ITEMS AND QUANTITY CAP,TIRE VALVE-1,CORE,EXTENSION-1

Restrictions/Controls & Freight Information | NSN 2640-00-244-0442

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 188320 VALVES PNEUMATIC TIRES
Less than car load rating J 100.2
Less than truck load rating R 65.0
Water commodity Code 584 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2640-00-244-0442

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic CodeP Other Automotive Categories
Weapons Systems/End Item or Homogeneous GroupPPTires and Tubes (DoD Integrated Manager)
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price ValidationV The current standard price has been validated.
  • The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
  • The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
  • ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code5Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
