NSN 2640-00-052-0853 TR35RH, 351M, 351R
Product Details | PNEUMATIC TIRE VALVE
2640-00-052-0853 A metal, or metal and rubber, tubular stem containing a valve core and cap. The mounting end may have a base with a fitting designed for mounting on a pneumatic tire, inner tube, or tire rim, to permit and retain inflation or permit deflation. The mounting end may be internally threaded for adaptability to a valve spud or may be provided with cure-on or clamp in features. The other end is externally threaded to accommodate a valve cap, and internally threaded to accommodate the valve core.
Part Alternates: TR35RH, 351M, 351R, 35R, 35RH, 520853, R35, 2640-00-052-0853, 00-052-0853, 2640000520853, 000520853
Tires and Tubes | Tire Rebuilding and Tire and Tube Repair Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 26 | 01 JAN 1963 | 00-052-0853 | 07414 ( VALVE, PNEUMATIC TIRE ) |

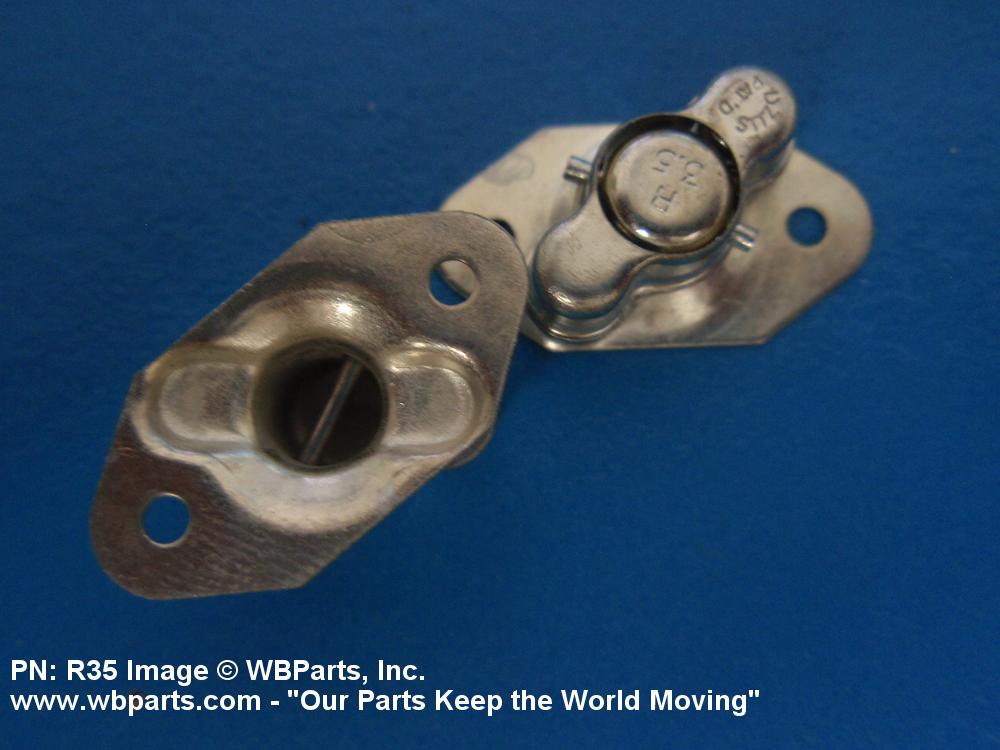

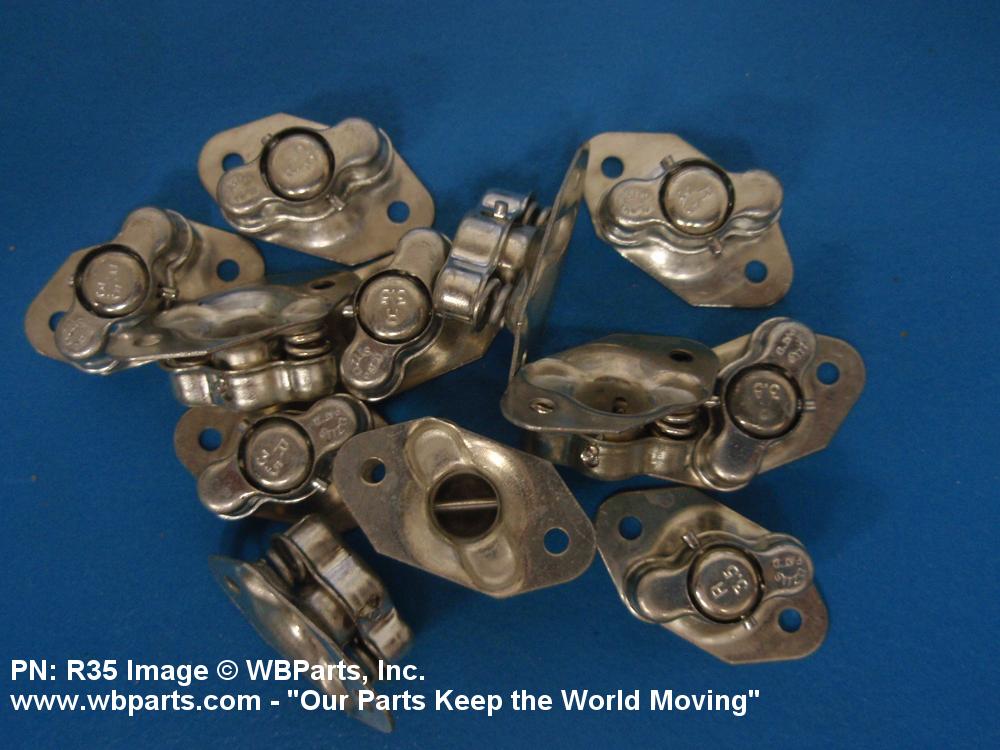

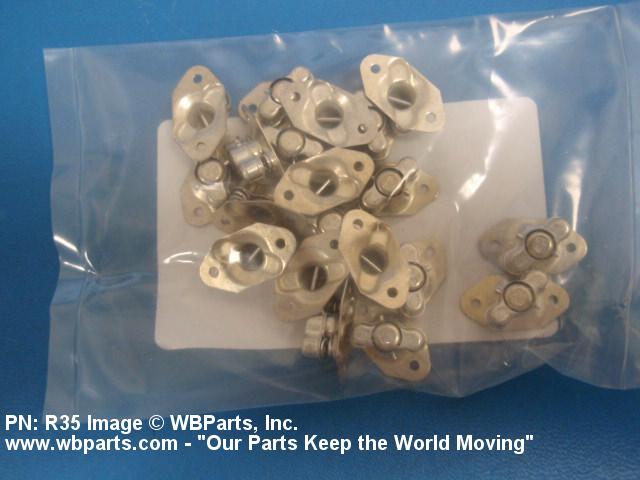

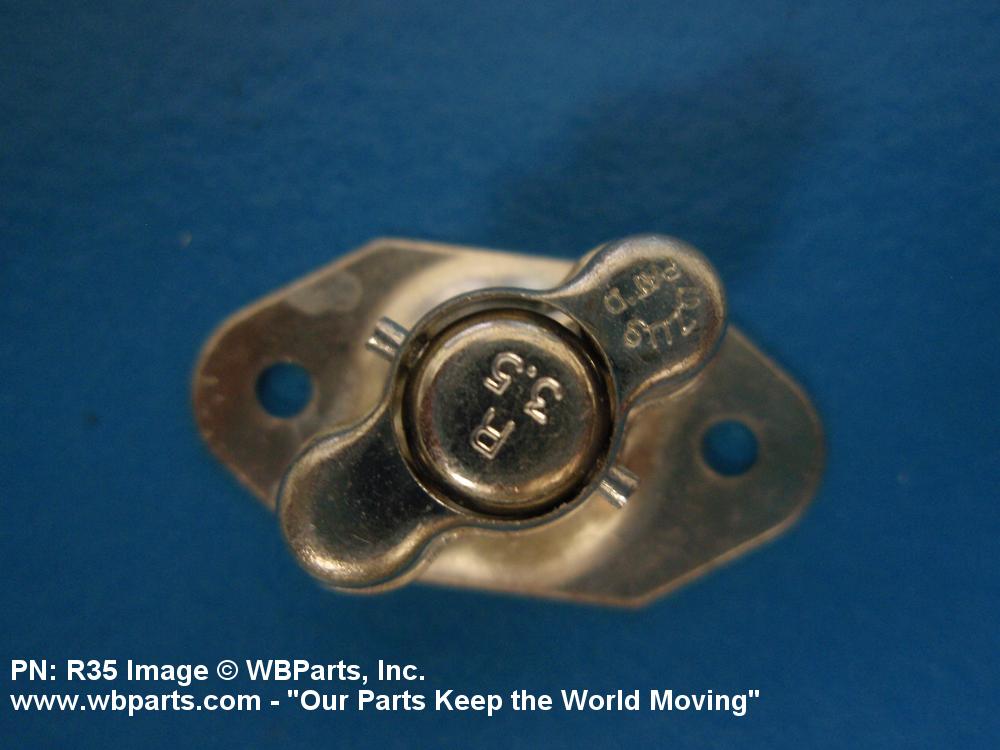

Drawings & Photos | NSN 2640-00-052-0853
Demand History | NSN 2640-00-052-0853
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| R35 | 2013-10-274 | 6 | United States |
| R35 | 2012-03-74 | 18 | United States |
| R35 | 2012-02-59 | 18 | United States |
| R35 | 2011-07-194 | 12 | United States |
| R35 | 2011-03-61 | 12 | United States |
| R35 | 2010-04-102 | 600 | Australia |
| R35 | 2010-04-102 | 600 | Australia |
| R35 | 2010-04-98 | 48 | US |
| R35 | 2010-04-97 | 600 | United Kingdom |
| R35 | 2009-04-110 | 78 | us |
Cross Reference | NSN 2640-00-052-0853
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 351M | 08588 | NATIONAL DISTILLERS AND CHEMICAL CORP BRIDGEPORT BRASS CO DIV |
| 351R | 08588 | NATIONAL DISTILLERS AND CHEMICAL CORP BRIDGEPORT BRASS CO DIV |
| 35R | 27783 | SCHRADER-BRIDGEPORT INTERNATIONAL INC |
| 35R | 53477 | SCOVILL INC SCHRADER BELLOWS DIV |
| 35R | 53705 | SCOVILL INC |
| 35RH | 27783 | SCHRADER-BRIDGEPORT INTERNATIONAL INC |
| 35RH | 53477 | SCOVILL INC SCHRADER BELLOWS DIV |
| 520853 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| R35 | 17875 | EATON CORPORATION DBA AIR CONTROLS DIVISION DIV AIR |
| TR35RH | 79934 | THE TIRE & RIM ASSOCIATION INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2640-00-052-0853
Technical Data | NSN 2640-00-052-0853
| Characteristic | Specifications |
|---|---|
| SIZE | STANDARD NUMBER |
| TIRE AND RIM ASSOCIATION NUMBER | 35RH VALVE |
| DESIGN TYPE | STRAIGHT, FLEXIBLE, RUBBER-COVERED VALVE |
| USAGE DESIGN | INNER TUBE |
| APPLICATION METHOD | CURE-ON TUBE |
| RUBBER BASE TYPE | FLAT |
Restrictions/Controls & Freight Information | NSN 2640-00-052-0853
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 188320 | VALVES PNEUMATIC TIRES |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 584 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2640-00-052-0853
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9A | Navy-owned stocks of parts peculiar to combat and tactical vehicles of Army design Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
