NSN 2610-00-267-3057 002673057
Product Details | VEHICU PNEUMATIC TIRE INNER TUBE

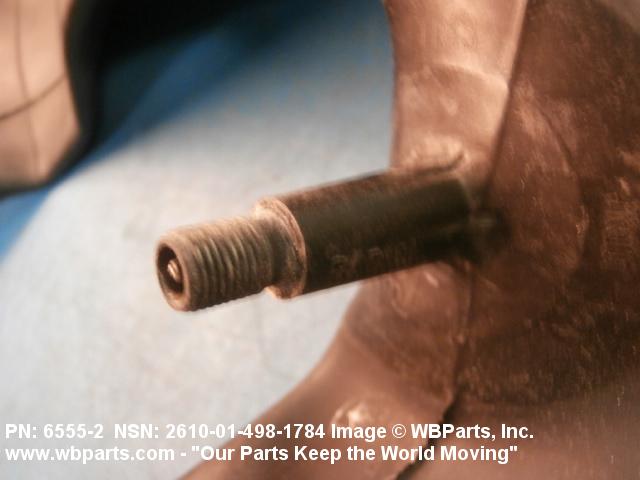

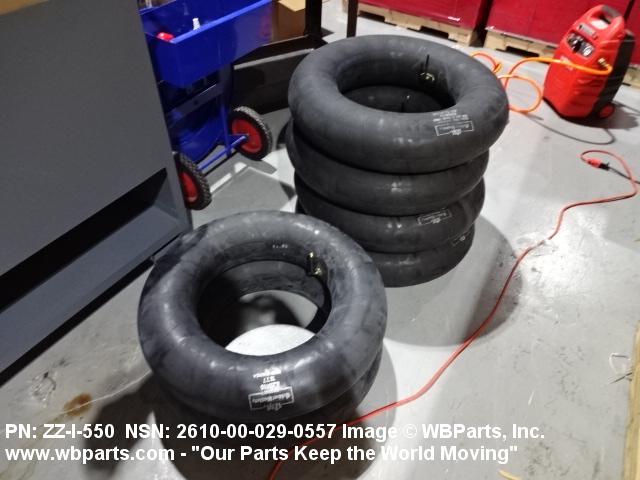

2610-00-267-3057 A hollow, cylindrical vulcanized body of rubber, circular in cross section, and fitted with a valve and/or spud to permit inflation. It is used inside a pneumatic tire for reinforcement and to absorb shock on vehicles, tractors, trailers, and the like. For aircraft applications, see INNER TUBE,PNEUMATIC TIRE,AIRCRAFT.
Part Alternates: 002673057
Tires and Tubes | Tires and Tubes, Pneumatic, Except Aircraft
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
26 | 01 JAN 1963 | 00-267-3057 | 51022 ( INNER TUBE, PNEUMATIC TIRE, VEHICULAR ) |
Demand History | NSN 2610-00-267-3057
Part Number | Request Date | QTY | Origin |
---|---|---|---|
MILT5014 | 2017-06-156 | 20 | Australia |
MILT5014 | 2012-09-269 | 200 | Canada |
Cross Reference | NSN 2610-00-267-3057
Part Number | Cage Code | Manufacturer |
---|---|---|
MILT5014 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 2610-00-267-3057
Related Products | NSN 2610-00-267-3057
Technical Data | NSN 2610-00-267-3057
Characteristic | Specifications |
---|---|
OPERATING TEMP RANGE IN DEG CELSIUS | -54.0/+93.0 |
APPLICATION DESIGN | AIRCRAFT TAIL WHEEL, TYPE VII EXTRA HIGH PRESSURE |
BODY MATERIAL | RUBBER, NATURAL AND RUBBER, SYNTHETIC |
INFLATION DEVICE TYPE | TR89 |
BASE CONSTRUCTION | STANDARD |
SPLICE MINIMUM RATED TENSILE STRENGTH | 400 POUNDS PER SQUARE INCH |
SIZE DESIGNATION | 12.5X4.5 |
INFLATION DEVICE POSITION | OFF CENTER |
NONDEFINITIVE SPEC/STD DATA | 7 TYPE |
CONSTRUCTION | REGULAR |
MINIMUM TENSILE STRENGTH | 750 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 2610-00-267-3057
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 157225 | PLASTIC/RUBR TIRE TUBES NOI |
Less than car load rating | Q | 70 |
Less than truck load rating | Q | 70.0 |
Water commodity Code | 671 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | ||
Air Special Handling | Z | No special handling required. |
Special Handling Code | Z | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2610-00-267-3057
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Price Validation | V | The current standard price has been validated.
|
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
