NSN 2590-01-395-8765 C307843-025B0049.8, C307843025B00498, C307843025B04326715B
Product Details | PUSH-PULL CONTROL ASSEMBLY
2590-01-395-8765 A control consisting of a wire, wire rope, or a center load rail with ball bearings, within a flexible conduit. One end must have a threaded sleeve for mounting to a wall, bulkhead, or handle, or clevis. It is used to operate or control, either manually or mechanically a mechanical device. It may include such attaching devices as nut(s), washer(s), clevis, bracket(s), and/or the like. For items designed to transmit rotary motion, see SHAFT ASSEMBLY, FLEXIBLE.20516800049Miscellaneous Aircraft Accessories and Components25900034Miscellaneous Vehicular Components29900045Miscellaneous Engine Accessories, Nonaircraft29950042Miscellaneous Engine Accessories, Aircraft30400042Miscellaneous Power Transmission Equipment
Part Alternates: C307843-025B0049.8, C307843025B00498, C307843025B04326715B, C307843-025B043267-15B, 12369910-1, 12369910, 307843-0250049.8, 30784302500498, 56570256, 565-702-56, 2590-01-395-8765, 01-395-8765, 2590013958765, 013958765, 123699101
Vehicular Equipment Components | Miscellaneous Vehicular Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 08 SEP 1994 | 01-395-8765 | 07468 ( CONTROL ASSEMBLY, PUSH-PULL ) |

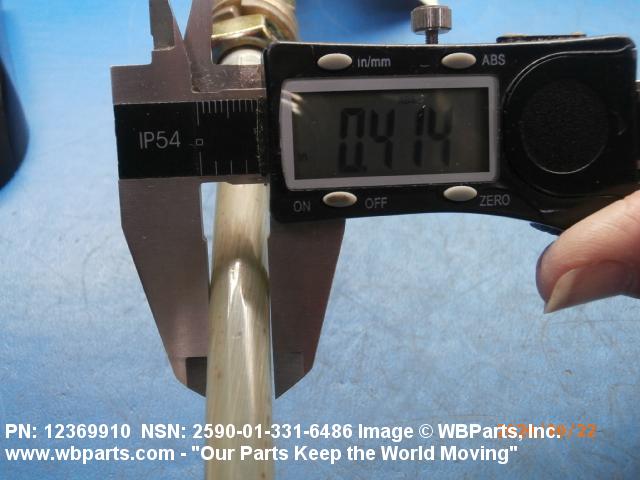

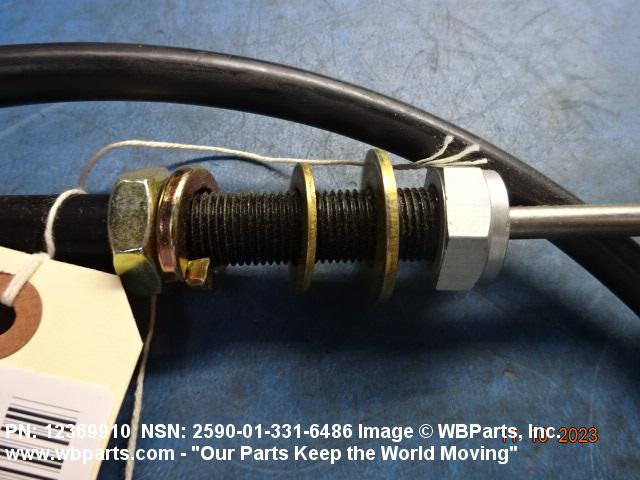

Drawings & Photos | NSN 2590-01-395-8765
Demand History | NSN 2590-01-395-8765
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2590-01-395-8765 | 2024-02-60 | 210 | DIBBS |
| 2590-01-395-8765 | 2024-01-29 | 465 | DIBBS |
| 12369910 | 2023-10-304 | 1 | us |
| 2590-01-395-8765 | 2023-07-208 | 465 | DIBBS |
| 2590-01-395-8765 | 2023-07-187 | 147 | DIBBS |
| 2590-01-395-8765 | 2023-04-99 | 318 | DIBBS |
| 2590-01-395-8765 | 2022-05-124 | 415 | DIBBS |
| 2590-01-395-8765 | 2022-03-76 | 199 | DIBBS |
| 2590-01-395-8765 | 2022-01-31 | 216 | DIBBS |
| 2590-01-395-8765 | 2022-01-06 | 98 | DIBBS |
| 2590-01-395-8765 | 2021-09-266 | 118 | DIBBS |
| 2590-01-395-8765 | 2021-04-108 | 253 | DIBBS |
| 2590-01-395-8765 | 2021-03-84 | 130 | DIBBS |
| 12369910 | 2020-10-287 | 1 | United States |
| 2590-01-395-8765 | 2020-10-282 | 123 | DIBBS |
| 2590-01-395-8765 | 2020-03-86 | 148 | DIBBS |
| 2590-01-395-8765 | 2020-02-58 | 87 | DIBBS |
| 2590-01-395-8765 | 2020-02-49 | 264 | DIBBS |
| 2590-01-395-8765 | 2019-11-318 | 178 | DIBBS |
| 307843-0250049.8 | 2019-10-282 | 83 | DIBBS |
| 307843-0250049.8 | 2019-09-267 | 86 | DIBBS |
| 2590-01-395-8765 | 2018-01-09 | 90 | DIBBS |
| 2590-01-395-8765 | 2017-09-262 | 85 | DIBBS |
| 2590-01-395-8765 | 2017-03-61 | 318 | DIBBS |
| 2590-01-395-8765 | 2017-02-38 | 238 | DIBBS |
| 2590-01-395-8765 | 2016-12-364 | 200 | DIBBS |
| 2590-01-395-8765 | 2016-09-273 | 225 | DIBBS |
| 2590-01-395-8765 | 2016-04-102 | 115 | DIBBS |
| 2590-01-395-8765 | 2016-03-80 | 115 | DIBBS |
| 2590-01-395-8765 | 2014-10-294 | 114 | DIBBS |
| 2590-01-395-8765 | 2013-12-351 | 147 | DIBBS |
| 2590-01-395-8765 | 2013-10-275 | 133 | DIBBS |
| 2590-01-395-8765 | 2013-07-212 | 112 | DIBBS |
| 2590-01-395-8765 | 2013-04-115 | 97 | DIBBS |
| 2590-01-395-8765 | 2011-09-257 | 21 | DIBBS |
| 2590-01-395-8765 | 2011-06-179 | 0 | DIBBS |
| 2590-01-395-8765 | 2011-05-129 | 12 | DIBBS |
| 2590-01-395-8765 | 2011-04-108 | 24 | DIBBS |
| 2590-01-395-8765 | 2011-02-59 | 34 | UK |
| 2590-01-395-8765 | 2011-02-49 | 34 | DIBBS |
| 2590-01-395-8765 | 2009-11-327 | 25 | DIBBS |
| 2590-01-395-8765 | 2009-10-274 | 64 | DIBBS |
| 2590-01-395-8765 | 2009-09-264 | 9 | DIBBS |
| 2590-01-395-8765 | 2009-09-257 | 11 | DIBBS |
| 2590-01-395-8765 | 2009-02-57 | 3 | DIBBS |
| 2590-01-395-8765 | 2008-12-358 | 51 | DIBBS |
| 2590-01-395-8765 | 2008-09-268 | 3 | DIBBS |
| 2590-01-395-8765 | 2008-05-150 | 38 | DIBBS |
| 2590-01-395-8765 | 2008-05-143 | 9 | DIBBS |
| 2590-01-395-8765 | 2008-05-127 | 52 | DIBBS |
Cross Reference | NSN 2590-01-395-8765
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12369910 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12369910-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 307843-0250049.8 | 62809 | MARINE ACQUISITION (US) INCORPORATED DBA SEASTAR SOLUTIONS |
| 565-702-56 | 06970 | CABLECRAFT MOTION CONTROLS LLC |
| C307843-025B0049.8 | 41625 | INCOM INTL INC MORSE CONTROLS DIV |
| C307843-025B0049.8 | 62809 | MARINE ACQUISITION (US) INCORPORATED DBA SEASTAR SOLUTIONS |
| C307843-025B043267-15B | 41625 | INCOM INTL INC MORSE CONTROLS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2590-01-395-8765
Related Products | NSN 2590-01-395-8765
Technical Data | NSN 2590-01-395-8765
| Characteristic | Specifications |
|---|---|
| CORE MATERIAL | STEEL CORROSION RESISTING |
| CORE CONSTRUCTION | WIRE ROPE |
| CORE DIAMETER | 0.188 INCHES NOMINAL |
| FLEXIBLE CONDUIT MATERIAL | STEEL CORROSION RESISTING |
| FLEXIBLE CONDUIT OUTSIDE DIAMETER | 0.562 INCHES NOMINAL |
| EFFECTIVE LENGTH | 42.062 INCHES MINIMUM AND 42.562 INCHES MAXIMUM |
| TRAVEL DISTANCE | 7.375 INCHES MINIMUM AND 7.630 INCHES MAXIMUM |
| FEATURES PROVIDED | KNOB AND ADAPTER |
| SPECIAL FEATURES | INCLUDES HARDWARE AND DUST SEAL; KNOB P/N 43267-15B SPECIFICALLY USED ON THIS ASSEMBLY |
| III END ITEM IDENTIFICATION | 2350-01-248-7619 |
| MANUFACTURERS CODE | 19207 |
| MFR SOURCE CONTROLLING REFERENCE | 12369910-1 |
Restrictions/Controls & Freight Information | NSN 2590-01-395-8765
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2590-01-395-8765
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
