NSN 2590-01-324-2221 8765545, 01-324-2221, 013242221
Product Details | METAL MOLDING
2590-01-324-2221 A shaped piece of metal having a plane or curved surface, either sunk or projecting, used for ornamental or other application.20616800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items25900034Miscellaneous Vehicular Components56700034Building Components, Prefabricated95200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: 8765545, 2590-01-324-2221, 01-324-2221, 2590013242221, 013242221
Vehicular Equipment Components | Miscellaneous Vehicular Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 11 AUG 1990 | 01-324-2221 | 04153 ( MOLDING, METAL ) |
Drawings & Photos | NSN 2590-01-324-2221
Demand History | NSN 2590-01-324-2221
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2590-01-324-2221 | 2009-08-239 | 5 | DIBBS |
| 2590-01-324-2221 | 2009-07-195 | 13 | DIBBS |
Cross Reference | NSN 2590-01-324-2221
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8765545 | 19206 | ARMY, UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2590-01-324-2221
Related Products | NSN 2590-01-324-2221
Technical Data | NSN 2590-01-324-2221
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS |
| FABRICATION METHOD | EXTRUDED |

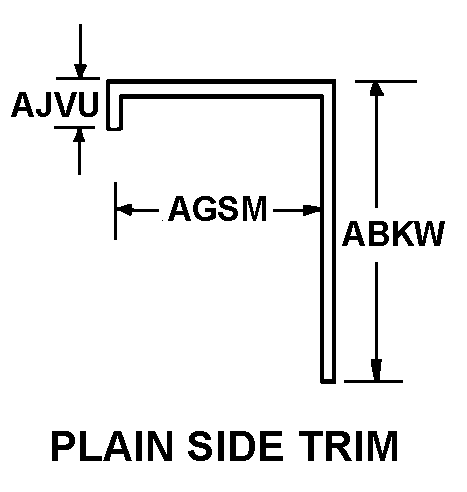

| STYLE DESIGNATOR | 151 PLAIN SIDE TRIM |
| LEGEND A | 2.562 INCHES NOMINAL |
| LEGEND B | 1.000 INCHES NOMINAL |
| LEGEND D | 1.662 INCHES NOMINAL |
| LEGEND C | 1.663 INCHES NOMINAL |
| ISSUE FORM | SPECIFIC LENGTH |
| LENGTH | 32.600 INCHES NOMINAL |
| MOUNTING METHOD | HOLE |
| SPECIAL FEATURES | 7 HOLES 0.250 DIA CSK 60 DEG 4.460 APART; U/O M113 CANNON |
| MANUFACTURERS CODE | 19206 |
| DESIGN CONTROL REFERENCE | 8765545 |
Restrictions/Controls & Freight Information | NSN 2590-01-324-2221
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 138230 | MOLDS RUBBER/PLASTIC MOLDING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2590-01-324-2221
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | K | Combat Vehicles |
| Weapons Systems/End Item or Homogeneous Group | KD | Gun, Field Artillery Self-propelled 175mm M107, Howitzer 8-Inch M110 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
