NSN 2590-01-257-3887 11647386-1, 01-257-3887, 116473861
Product Details | METAL MOLDING
2590-01-257-3887 A shaped piece of metal having a plane or curved surface, either sunk or projecting, used for ornamental or other application.20616800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items25900034Miscellaneous Vehicular Components56700034Building Components, Prefabricated95200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: 11647386-1, 2590-01-257-3887, 01-257-3887, 2590012573887, 116473861, 012573887
Vehicular Equipment Components | Miscellaneous Vehicular Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 18 JUN 1987 | 01-257-3887 | 04153 ( MOLDING, METAL ) |
Drawings & Photos | NSN 2590-01-257-3887
Demand History | NSN 2590-01-257-3887
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2590-01-257-3887 | 2010-12-340 | 15 | DIBBS |
| 2590-01-257-3887 | 2009-11-327 | 12 | DIBBS |
| 2590-01-257-3887 | 2009-02-50 | 12 | US |
| 2590-01-257-3887 | 2008-12-353 | 2 | DIBBS |
| 2590-01-257-3887 | 2008-12-350 | 12 | DIBBS |
| 2590-01-257-3887 | 2006-06-167 | 95 | DIBBS |
Cross Reference | NSN 2590-01-257-3887
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11647386-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2590-01-257-3887
Related Products | NSN 2590-01-257-3887
Technical Data | NSN 2590-01-257-3887
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| FABRICATION METHOD | EXTRUDED |

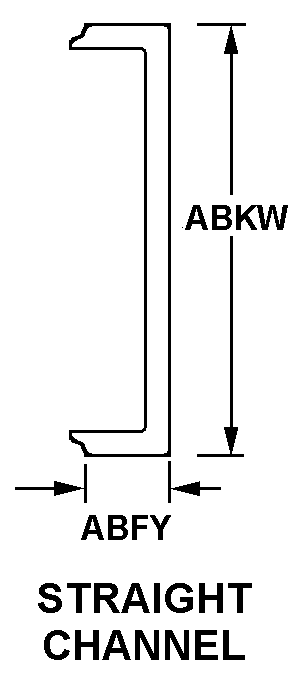

| STYLE DESIGNATOR | 190 STRAIGHT CHANNEL |
| OVERALL DEPTH | 5.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.250 INCHES NOMINAL |
| ISSUE FORM | SPECIFIC LENGTH |
| LENGTH | 68.000 INCHES NOMINAL |
| MOUNTING METHOD | SHEET METAL SCREW |
| SPECIAL FEATURES | INCLUDES 7 EQUALLY SPACED MOUNTING HOLES OF 0.500 IN DIA MIN. AND 0.625IN DIA MAX |
Restrictions/Controls & Freight Information | NSN 2590-01-257-3887
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 138230 | MOLDS RUBBER/PLASTIC MOLDING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2590-01-257-3887
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | M | Armored Carriers |
| Weapons Systems/End Item or Homogeneous Group | M5 | M113 Family of Vehicles, Block 1 Modification |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
