Product Details | FILLER OPENING CAP

2590-01-238-0762 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System

Part Alternates: 31738, 2590-01-238-0762, 01-238-0762, 2590012380762, 012380762

Vehicular Equipment Components | Miscellaneous Vehicular Components

Supply Group (FSG) NSN Assign. NIIN
25 09 AUG 1986 01-238-0762

Drawings & Photos | NSN 2590-01-238-0762


Cross Reference | NSN 2590-01-238-0762

Part Number Cage Code Manufacturer
31738 24161 GATES CORP THE DBA GATES RUBBER CO THE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2590-01-238-0762

Technical Data | NSN 2590-01-238-0762

Characteristic Specifications
MATERIAL STEEL OVERALL

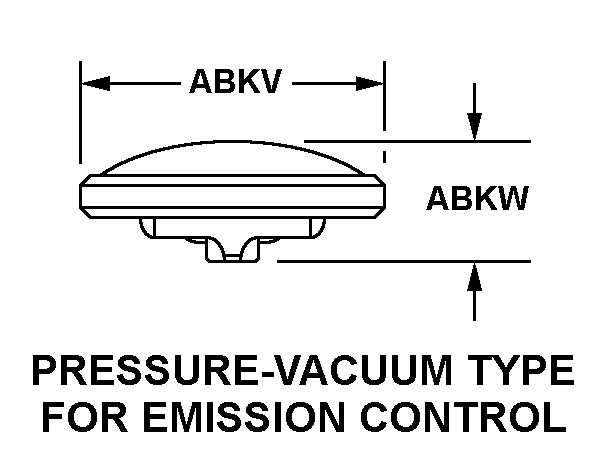

STYLE DESIGNATOR B20 PRESSURE-VACUUM TYPE FOR EMISSION CONTROL
OUTSIDE DIAMETER 2.875 INCHES NOMINAL
OVERALL HEIGHT 1.125 INCHES NOMINAL
(NON-CORE DATA) BASE DIAMETER 1.438 INCHES NOMINAL
SYSTEM FOR WHICH DESIGNED NONPRESSURIZED

Restrictions/Controls & Freight Information | NSN 2590-01-238-0762

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 116430 CAPS,ENGINE RADIATOR
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 585 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2590-01-238-0762

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
