Product Details | FILLER OPENING CAP

2590-01-184-2100 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System

Part Alternates: AAX1210, GAS20, GAS-20, 273425C91, 8446837, 19955A, 2590-01-184-2100, 01-184-2100, 2590011842100, 011842100

Vehicular Equipment Components | Miscellaneous Vehicular Components

Supply Group (FSG) NSN Assign. NIIN
25 01-184-2100

Drawings & Photos | NSN 2590-01-184-2100


Demand History | NSN 2590-01-184-2100

Part Number Request Date QTY Origin
8446837 2011-08-217 1 us
2590-01-184-2100 2008-09-254 8 DIBBS
2590-01-184-2100 2007-07-196 2 DIBBS

Cross Reference | NSN 2590-01-184-2100

Part Number Cage Code Manufacturer
0228498-2 92392 ALLIS-CHALMERS CORP
0253690-2 92392 ALLIS-CHALMERS CORP
126368R91 92679 NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION
AAX3741 78225 STANT MFG CO INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2590-01-184-2100

Technical Data | NSN 2590-01-184-2100

Characteristic Specifications
MATERIAL STEEL CORROSION RESISTING OVERALL

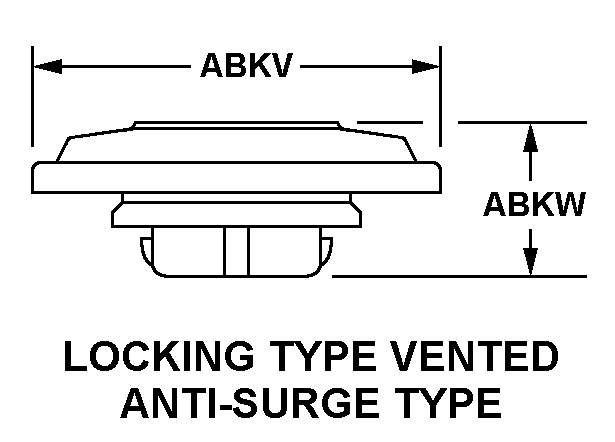

STYLE DESIGNATOR B30 LOCKING TYPE VENTED ANTI-SURGE TYPE
OUTSIDE DIAMETER 2.875 INCHES NOMINAL
OVERALL HEIGHT 0.875 INCHES NOMINAL
(NON-CORE DATA) BASE DIAMETER 1.500 INCHES NOMINAL
SYSTEM FOR WHICH DESIGNED NONPRESSURIZED
CAM QUANTITY 1
GRIPPING ACCOMMODATION TYPE KNURLED
SPECIAL FEATURES USED ON INTERNATIONAL HARVESTER TRUCK MODEL 1750

Restrictions/Controls & Freight Information | NSN 2590-01-184-2100

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Category Code Description
No Freight Information
