NSN 2590-01-077-6457 8732, 87321, 8732-1
Product Details | FILLER OPENING CAP
2590-01-077-6457 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: 8732, 87321, 8732-1, 894528, 89452-8, 2590-01-077-6457, 01-077-6457, 2590010776457, 010776457
Vehicular Equipment Components | Miscellaneous Vehicular Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 31 JAN 2007 | 01-077-6457 | 30128 ( CAP, FILLER OPENING ) |

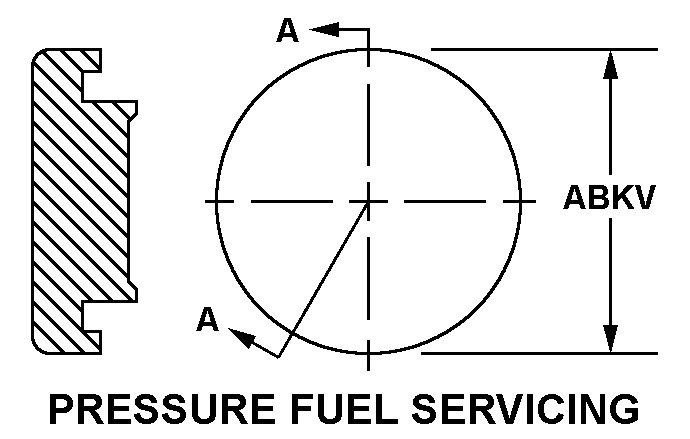

Drawings & Photos | NSN 2590-01-077-6457
Demand History | NSN 2590-01-077-6457
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2590-01-077-6457 | 2010-05-145 | 45 | DIBBS |
| 2590-01-077-6457 | 2010-05-132 | 25 | DIBBS |
| 2590-01-077-6457 | 2010-03-74 | 104 | DIBBS |
| 2590-01-077-6457 | 2010-02-42 | 39 | DIBBS |
| 2590-01-077-6457 | 2009-06-173 | 46 | DIBBS |
| 2590-01-077-6457 | 2009-04-105 | 54 | DIBBS |
| 2590-01-077-6457 | 2009-01-29 | 111 | DIBBS |
| 2590-01-077-6457 | 2008-11-318 | 46 | DIBBS |
| 2590-01-077-6457 | 2008-06-158 | 83 | DIBBS |
| 2590-01-077-6457 | 2008-02-59 | 49 | DIBBS |
| 2590-01-077-6457 | 2007-10-282 | 25 | DIBBS |
| 2590-01-077-6457 | 2007-10-278 | 127 | DIBBS |
| 2590-01-077-6457 | 2007-08-240 | 14 | DIBBS |
| 2590-01-077-6457 | 2007-07-191 | 9 | DIBBS |
| 2590-01-077-6457 | 2007-05-136 | 9 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2590-01-077-6457
Related Products | NSN 2590-01-077-6457
Technical Data | NSN 2590-01-077-6457
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| STYLE DESIGNATOR | B8 PRESSURE FUEL SERVICING |
| OUTSIDE DIAMETER | 5.000 INCHES NOMINAL |
| SYSTEM FOR WHICH DESIGNED | PRESSURIZED |
| MAXIMUM WORKING PRESSURE | 29.000 POUNDS PER SQUARE INCH |
| PRESSURE RELIEF METHOD | AUTOMATIC |
| FILLER NECK DIAMETER FOR WHICH DESIGNED | 4.000 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNS |
| THREAD DIAMETER | 4.2500 INCHES NOMINAL |
| THREAD QUANTITY | 8.000 PER INCH |
| THREAD PITCH DIAMETERS | 4.1645 TO 4.1738 INCHES |
| THREAD LENGTH | 0.490 INCHES NOMINAL |
| RETAINING DEVICE TYPE | CHAIN |
| RETAINING DEVICE LENGTH | 15.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2590-01-077-6457
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116430 | CAPS,ENGINE RADIATOR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2590-01-077-6457
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
