NSN 2590-01-048-7913 MS20HET2, MS20-HET-2, MS20HET2LRA
Product Details | VEHICLE MOUNTING DRUM WINCH
2590-01-048-7913 A power operated mechanical device designed to be mounted on a self-propelled vehicle and driven by the vehicle power take-off or an integral power unit. The device has a horizontally mounted revolvable drum(s) on the periphery of which the end of a rope, line, or chain is secured for exerting a raising, lowering, or pulling motion. The device may also contain a revolvable head(s) or spool(s) (gypsy head) around which one or more turns must be taken for exerting pulling power. See also WINCH, GYPSY. Excludes WINCH, DRUM, POWER OPERATED and WINCH, AIRCRAFT MOUNTED.
Part Alternates: MS20HET2, MS20-HET-2, MS20HET2LRA, 63676CX, 02506, 2590-01-048-7913, 01-048-7913, 2590010487913, 010487913
Vehicular Equipment Components | Miscellaneous Vehicular Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 04 OCT 1977 | 01-048-7913 | 17674 ( WINCH, DRUM, VEHICLE MOUNTING ) |
Drawings & Photos | NSN 2590-01-048-7913
Cross Reference | NSN 2590-01-048-7913
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2590-01-048-7913
Technical Data | NSN 2590-01-048-7913
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | POWER |
| PRIME MOVER TYPE | HYDRAULIC MOTOR |
| PRIME MOVER QUANTITY | 1 |
| DRUM SURFACE DESIGN | PLAIN |
| DRUM FLANGE TO FLANGE DISTANCE AND LOCATION | 18.000 INCHES NOMINAL FIRST DRUM |
| DRUM DIAMETER AND LOCATION | 7.000 INCHES NOMINAL FIRST DRUM |
| DRUM FLANGE DIAMETER AND LOCATION | 18.000 INCHES NOMINAL FIRST DRUM |
| CAPSTAN SPOOL MOUNTING POSITION | VERTICAL |

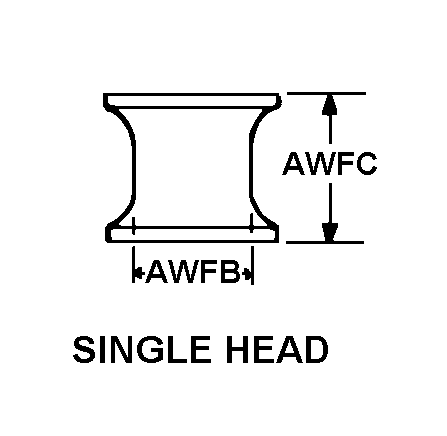

| CAPSTAN SPOOL STYLE | 6 SINGLE HEAD |
| LARGEST DIAMETER AND LOCATION | 7.000 INCHES NOMINAL FIRST SPOOL |
| OVERALL LENGTH AND LOCATION | 18.000 INCHES NOMINAL FIRST SPOOL |
| CAPSTAN SPOOL SURFACE DESIGN | PLAIN |
| CAPSTAN SPOOL QUANTITY | 1 |
| LOAD LIMIT AT SELECTED SPEED AND DRUM LOCATION | 45000.0 POUNDS ZERO TO FULL SPEED FIRST DRUM |
| RETRIEVAL WINDING METHOD | OVERWIND |
| GEAR HOUSING LOCATION AND QUANTITY | 1 RIGHT OF DRUM |
| DRIVE END LOCATION | SAME SIDE |
| WINCH LENGTH | 34.500 INCHES NOMINAL |
| MOUNTING FRAME LENGTH | 42.000 INCHES NOMINAL |
| MOUNTING FRAME WIDTH | 16.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 08302 |
| DESIGN CONTROL REFERENCE | MS20HET2LRA |
Restrictions/Controls & Freight Information | NSN 2590-01-048-7913
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116440 | CAPSTANS/WINCHES/WINDLASSES SUB1 |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2590-01-048-7913
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | N | Tactical Vehicles |
| Weapons Systems/End Item or Homogeneous Group | NU | Heavy Equipment Transporter (HET), M746, M747, M911 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | D | When repair is beyond lower level maintenance capability, evacuate the item to depot. Disposal is not authorized below wholesale level. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
