NSN 2590-01-004-2627 AAM4099A, AAM-4099-A, 4026507
Product Details | FILLER OPENING CAP
2590-01-004-2627 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: AAM4099A, AAM-4099-A, 4026507, 2590-01-004-2627, 01-004-2627, 2590010042627, 010042627
Vehicular Equipment Components | Miscellaneous Vehicular Components
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
25 | 03-JUN-75 | 01-004-2627 | 30128 ( CAP, FILLER OPENING ) |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 2590-01-004-2627
Technical Data | NSN 2590-01-004-2627
Characteristic | Specifications |
---|---|
MATERIAL | STEEL OVERALL |
SURFACE TREATMENT | PAINT OVERALL |

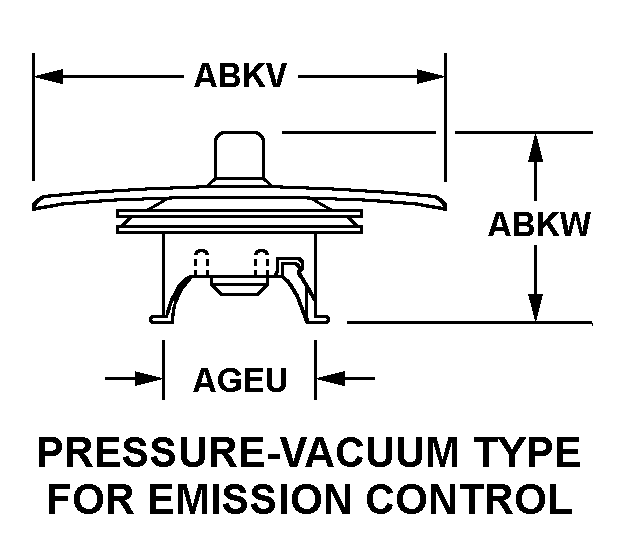

STYLE DESIGNATOR | B27 PRESSURE-VACUUM TYPE FOR EMISSION CONTROL |
OUTSIDE DIAMETER | 3.125 INCHES NOMINAL |
OVERALL HEIGHT | 1.750 INCHES NOMINAL |
(NON-CORE DATA) BASE DIAMETER | 1.375 INCHES NOMINAL |
COLOR | OLIVE DRAB |
SYSTEM FOR WHICH DESIGNED | NONPRESSURIZED |
FILLER NECK DIAMETER FOR WHICH DESIGNED | 1.375 INCHES NOMINAL |
CAM QUANTITY | 2 |
GRIPPING ACCOMMODATION TYPE | LOBES |
Restrictions/Controls & Freight Information | NSN 2590-01-004-2627
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
