Product Details | FILLER OPENING CAP

2590-00-999-3832 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System

Part Alternates: CA2900, CA3546, X55302, 13204E2193, 2590-00-999-3832, 00-999-3832, 2590009993832, 009993832

Vehicular Equipment Components | Miscellaneous Vehicular Components

Supply Group (FSG) NSN Assign. NIIN
25 08 APR 1966 00-999-3832

Drawings & Photos | NSN 2590-00-999-3832


Cross Reference | NSN 2590-00-999-3832

Part Number Cage Code Manufacturer
13204E2193 97403 CECOM LR CENTER
CA2900 81118 EATON CORPORATION DBA FLUID POWER PLANT
CA3546 81118 EATON CORPORATION DBA FLUID POWER PLANT
X55302 66717 WURLITZER CO THE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2590-00-999-3832

Technical Data | NSN 2590-00-999-3832

Characteristic Specifications
MATERIAL STEEL OVERALL
SURFACE TREATMENT ZINC OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-Z-325,TYPE 1 FED STD SINGLE TREATMENT RESPONSE OVERALL

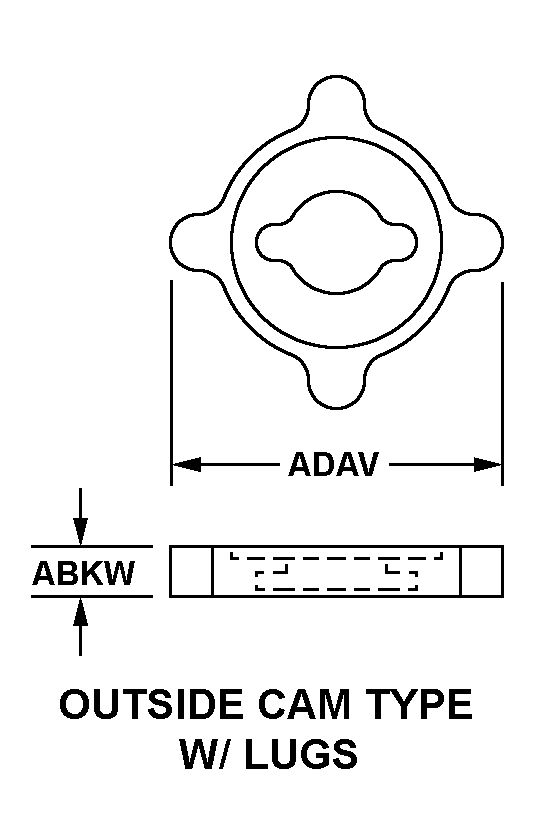

STYLE DESIGNATOR D1 OUTSIDE CAM TYPE WITH LUGS
OVERALL HEIGHT 0.440 INCHES NOMINAL
OVERALL DIAMETER 3.375 INCHES NOMINAL
SYSTEM FOR WHICH DESIGNED NONPRESSURIZED
FILLER NECK DIAMETER FOR WHICH DESIGNED 1.703 INCHES NOMINAL
CAM QUANTITY 2

Restrictions/Controls & Freight Information | NSN 2590-00-999-3832

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 116430 CAPS,ENGINE RADIATOR
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 585 unknown
Originating Activity Code PA Marine Corps Logistics Base
Albany, GA 31704-1128
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2590-00-999-3832

Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Z
EA : Each
