NSN 2590-00-837-1183 2402199, 00-837-1183, 008371183
Product Details | FILLER OPENING CAP
2590-00-837-1183 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: 2402199, 2590-00-837-1183, 00-837-1183, 2590008371183, 008371183
Vehicular Equipment Components | Miscellaneous Vehicular Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 07 DEC 1966 | 00-837-1183 | 30128 ( CAP, FILLER OPENING ) |
Drawings & Photos | NSN 2590-00-837-1183
Cross Reference | NSN 2590-00-837-1183
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2402199 | 12204 | DAIMLER CHRYSLER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2590-00-837-1183
Technical Data | NSN 2590-00-837-1183
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PAINT OVERALL |

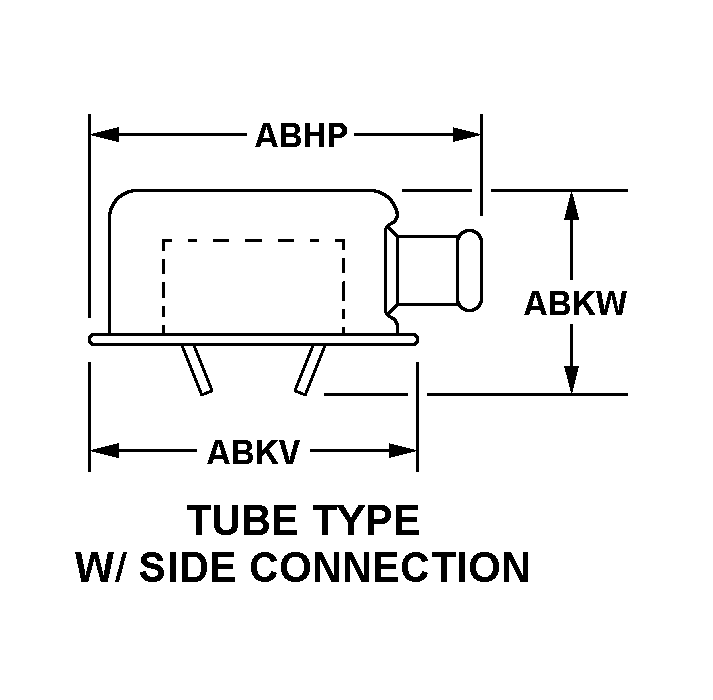

| STYLE DESIGNATOR | C14 TUBE TYPE WITH SIDE CONNECTION |
| OUTSIDE DIAMETER | 3.562 INCHES NOMINAL |
| OVERALL HEIGHT | 3.125 INCHES NOMINAL |
| (NON-CORE DATA) INSIDE DEPTH | 1.188 INCHES NOMINAL |
| (NON-CORE DATA) OPENING INSIDE DIAMETER | 1.500 INCHES NOMINAL |
| COLOR | BLACK |
| SYSTEM FOR WHICH DESIGNED | NONPRESSURIZED |
| GRIPPING ACCOMMODATION TYPE | PLAIN |
| RETAINING DEVICE TYPE | STRAP |
| RETAINING DEVICE LENGTH | 0.469 INCHES NOMINAL |
| SPECIAL MARKINGS | OIL ON TOP |
Restrictions/Controls & Freight Information | NSN 2590-00-837-1183
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116430 | CAPS,ENGINE RADIATOR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2590-00-837-1183
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
