NSN 2590-00-801-2355 MRL12449, TYPEIIGRADE1, MILS13625

Product Details | HEADLIGHT BEAM SELECTING SWITCH

2590-00-801-2355 A switch actuated by an external plunger and designed to be mounted on a vehicle for the purpose of switching the headlights from high beam to low beam or vice versa. Excludes SWITCH, PUSH and SWITCH, FOOT.

Part Alternates: MRL12449, TYPEIIGRADE1, MILS13625, 8011765-48, 816042, 8396186, 30829, 4164, 0624A0403, 10175445, 13207E2941FN29, 1997027, 20J15, 2590-00-801-2355, 00-801-2355, 2590006625444, 2590006929279 , 2590008012355, 008012355, 801176548

Vehicular Equipment Components | Miscellaneous Vehicular Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
25	01 JAN 1963	00-801-2355	22249 ( SWITCH, BEAM SELECTING, HEADLIGHT )

Drawings & Photos | NSN 2590-00-801-2355

Part Number	Request Date	QTY	Origin
2590-00-801-2355	2023-07-193	4	United States
2590-00-801-2355	2022-11-332	160	Taiwan
4164	2022-11-312	30	United States
4164	2022-10-291	3	United States
4164	2021-11-305	20	United States
2590-00-801-2355	2016-09-273	1	US
2590-00-801-2355	2015-12-344	4	DIBBS
2590-00-801-2355	2014-08-232	9	US
4164	2013-10-274	3	UK
2590-00-801-2355	2013-07-184	10	MANUAL
2590-00-801-2355	2013-04-99	42	Thailand
2590-00-801-2355	2010-10-280	216	DIBBS
2590-00-801-2355	2010-08-224	307	DIBBS
2590-00-801-2355	2008-09-254	2252	DIBBS

Cross Reference | NSN 2590-00-801-2355

Part Number	Cage Code	Manufacturer
0624A0403	55207	ARROW-MASTER, INCORPORATED
10175445	23382	FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP
13207E2941FN29	97403	CECOM LR CENTER
1997027	16764	GENERAL MOTORS CORP DELCO REMY DIV
1997027	24617	GENERAL MOTORS CORP
20J15	05643	BARBER-GREENE CO
20J15	0MKW7	MINNPAR, LLC DBA MINNPAR
2590006625444	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
2590006929279	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
2590008012355	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
30829	13841	TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
4164	0ZSM8	UCOM, INC.
4164	81263	UNIVERSAL COMPONENTS CORP
8011765-48	61465	GARWOOD/FELLER INC GARWOOD WINCH DIV
816042	02280	AMERICAN HOIST AND DERRICK CO
816042	49185	TEREX AMERICAN CRANE CORP
8396186	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
MILS13625	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MRL12449	40152	VME AMERICAS INC SUB OF VME GROUP N V
TYPEIIGRADE1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 2590-00-801-2355

Compare

Related Products | NSN 2590-00-801-2355

2590-00-801-6625, 2590-00-801-6688, 2590-00-801-6689, 2590-00-802-2122, 2590-00-802-2504

Technical Data | NSN 2590-00-801-2355

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	15.000 AMPERES RESISTIVE DC

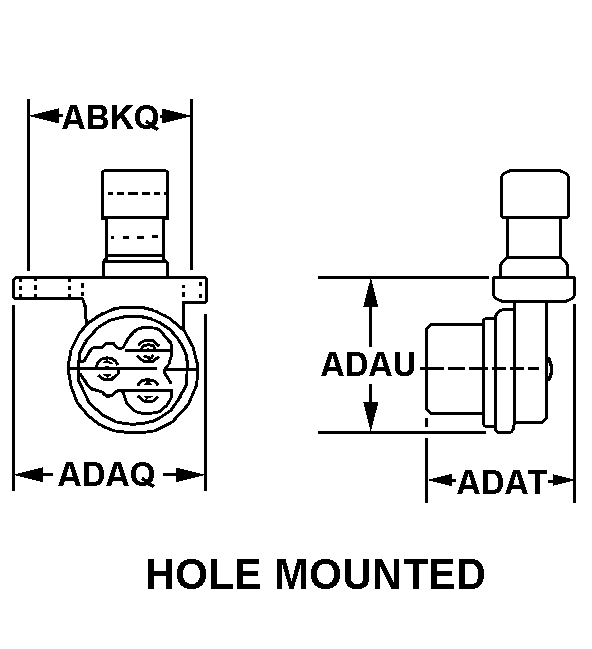

BODY STYLE	3A HOLE MOUNTED
