NSN 2590-00-569-4590 22070, 00-569-4590, 005694590
Product Details | FILLER OPENING CAP
2590-00-569-4590 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: 22070, 2590-00-569-4590, 00-569-4590, 2590005694590, 005694590
Vehicular Equipment Components | Miscellaneous Vehicular Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 00-569-4590 | 30128 ( CAP, FILLER OPENING ) |
Drawings & Photos | NSN 2590-00-569-4590
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2590-00-569-4590
Technical Data | NSN 2590-00-569-4590
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | PAINT OVERALL |

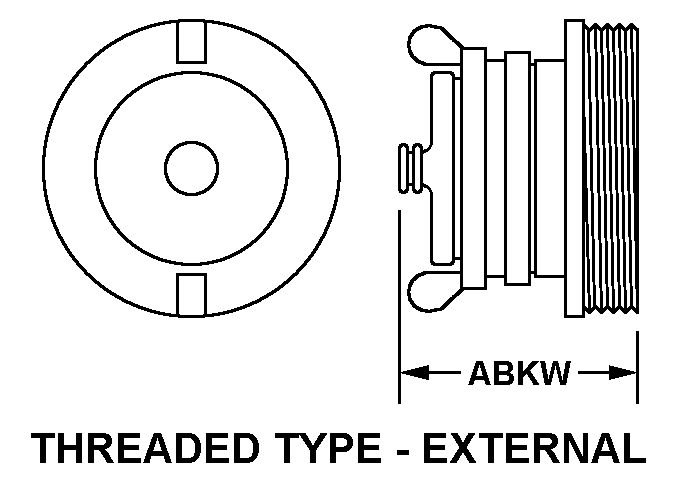

| STYLE DESIGNATOR | B7 THREADED TYPE-EXTERNAL |
| OVERALL HEIGHT | 0.781 INCHES NOMINAL |
| SYSTEM FOR WHICH DESIGNED | NONPRESSURIZED |
| FILLER NECK DIAMETER FOR WHICH DESIGNED | 1.500 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| THREAD DIAMETER | 1.500 INCHES NOMINAL |
| THREAD QUANTITY | 12.000 PER INCH |
| THREAD CLASS | 2A |
| THREAD PITCH DIAMETERS | ANY ACCEPTABLE |
| THREAD LENGTH | ANY ACCEPTABLE |
| GRIPPING ACCOMMODATION TYPE | KNURLED |
| RETAINING DEVICE TYPE | WIRE HOOK |
| RETAINING DEVICE LENGTH | 4.500 INCHES NOMINAL |
| SPECIAL MARKINGS | FUEL CAPMIX 1 PINT OIL WITH 2 GAL GASOLINE |
| FEATURES PROVIDED | BREATHER HOLE |
Restrictions/Controls & Freight Information | NSN 2590-00-569-4590
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
