NSN 2590-00-116-5243 MS530752, MS53075-2, AAH3560

Product Details | FILLER OPENING CAP

2590-00-116-5243 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System

Part Alternates: MS530752, MS53075-2, AAH3560 , AAH3566, AAI3566 , 2590-00-116-5243, 00-116-5243, 2590001165243, 001165243

Vehicular Equipment Components | Miscellaneous Vehicular Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
25	09 OCT 1968	00-116-5243	30128 ( CAP, FILLER OPENING )

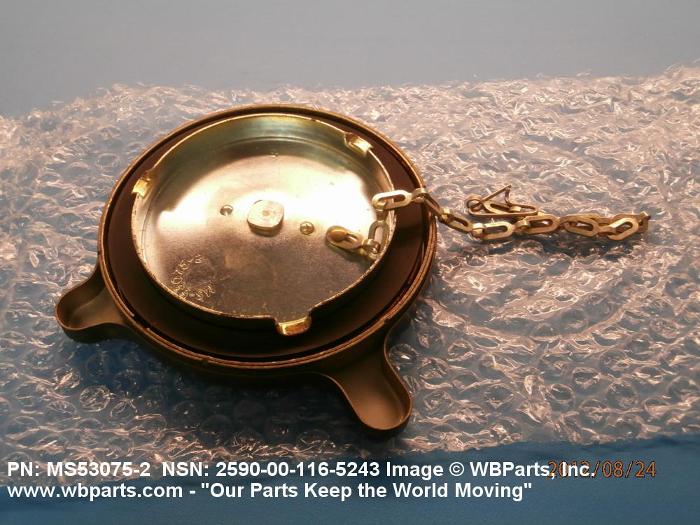

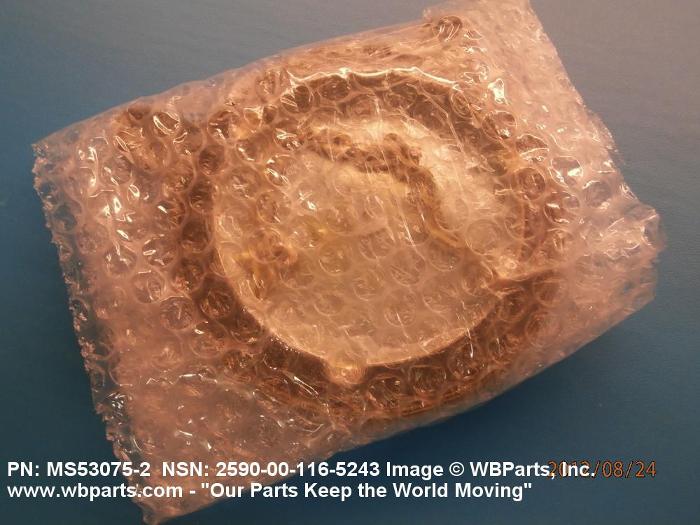

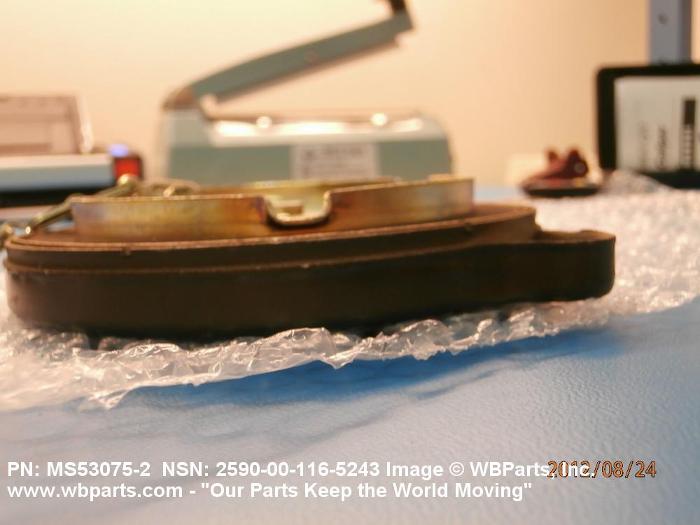

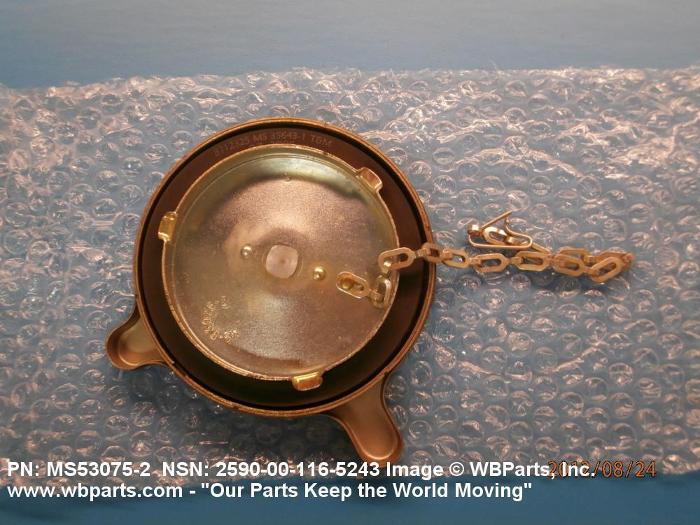

Drawings & Photos | NSN 2590-00-116-5243

Part Number	Request Date	QTY	Origin
2590-00-116-5243	2020-10-282	295	DIBBS
2590-00-116-5243	2020-04-120	200	DIBBS
2590-00-116-5243	2019-12-352	200	DIBBS
2590-00-116-5243	2019-11-312	46	DIBBS
2590-00-116-5243	2019-07-199	200	DIBBS
2590-00-116-5243	2019-07-185	46	DIBBS
2590-00-116-5243	2018-08-224	350	DIBBS
2590-00-116-5243	2018-07-200	98	DIBBS
2590-00-116-5243	2018-05-137	145	DIBBS
2590-00-116-5243	2018-04-95	8	DIBBS
2590-00-116-5243	2018-01-03	145	DIBBS
2590-00-116-5243	2017-07-190	145	DIBBS
2590-00-116-5243	2015-03-70	330	TR
2590-00-116-5243	2014-04-103	82	DIBBS
2590-00-116-5243	2013-11-308	46	DIBBS
2590-00-116-5243	2013-06-178	53	DIBBS
MS530752	2012-11-314	65	Turkey
2590-00-116-5243	2012-09-260	60	Turkey
MS530752	2012-07-194	28	United States
2590-00-116-5243	2011-02-39	390	US
2590-00-116-5243	2011-02-34	390	US
2590-00-116-5243	2011-02-34	390	United States
MS530752	2011-02-33	1000	US
MS530752	2011-01-27	1000	US
2590-00-116-5243	2010-10-298	78	DIBBS
2590-00-116-5243	2010-08-214	16	DIBBS
2590-00-116-5243	2010-07-196	68	DIBBS
2590-00-116-5243	2010-05-125	114	DIBBS

Cross Reference | NSN 2590-00-116-5243

Part Number	Cage Code	Manufacturer
AAH3560	78225	STANT MFG CO INC
AAH3566	78225	STANT MFG CO INC
MS53075-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 2590-00-116-5243

Compare

Related Products | NSN 2590-00-116-5243

2590-00-116-5851, 2590-00-116-6878, 2590-00-116-6882, 2590-00-116-9136, 2590-00-116-9138

Technical Data | NSN 2590-00-116-5243

Characteristic	Specifications
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
STYLE DESIGNATOR	B1 OUTSIDE CAM TYPE
OUTSIDE DIAMETER	4.625 INCHES NOMINAL
OVERALL HEIGHT	0.875 INCHES NOMINAL
SYSTEM FOR WHICH DESIGNED	NONPRESSURIZED
FILLER NECK DIAMETER FOR WHICH DESIGNED	3.312 INCHES NOMINAL
CAM QUANTITY	3
GRIPPING ACCOMMODATION TYPE	KNURLED
RETAINING DEVICE TYPE	CHAIN
RETAINING DEVICE LENGTH	7.000 INCHES NOMINAL

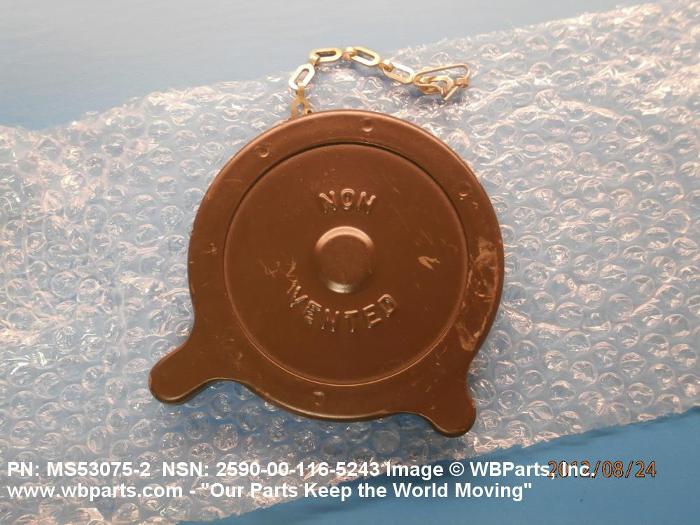

SPECIAL MARKINGS	NON VENTED
FEATURES PROVIDED	SUBMERSIBLE
MANUFACTURERS CODE	96906

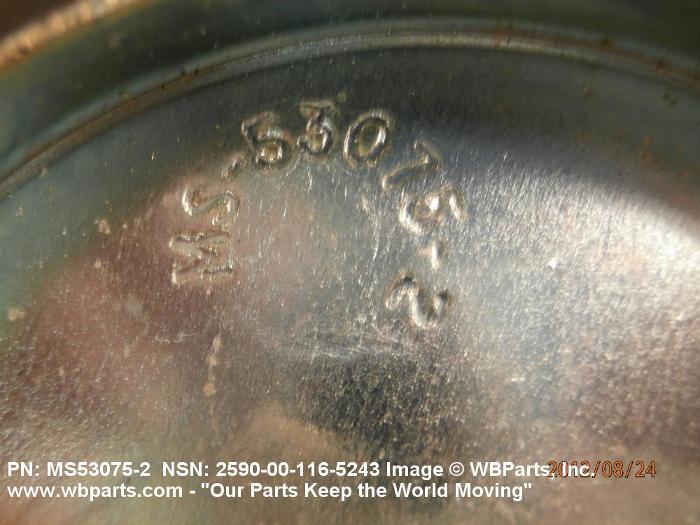

DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS53075-2

Restrictions/Controls & Freight Information | NSN 2590-00-116-5243

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	116430	CAPS,ENGINE RADIATOR
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	586	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 2590-00-116-5243

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	TG	TG:AF SICA RESIDUAL MMAC-WR-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
