NSN 2541-00-254-9049 002549049
Product Details | VEHICLE STORAGE VENTILATOR ADAPTER
2541-00-254-9049 An adapter constructed of sheet metal and designed to fit a ventilator of one size or shape to an aperture of another size or shape in a combat or special purpose vehicle which requires ventilation while in storage.
Part Alternates: 002549049
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 00-254-9049 | 10925 ( ADAPTER, VEHICLE STORAGE VENTILATOR ) |

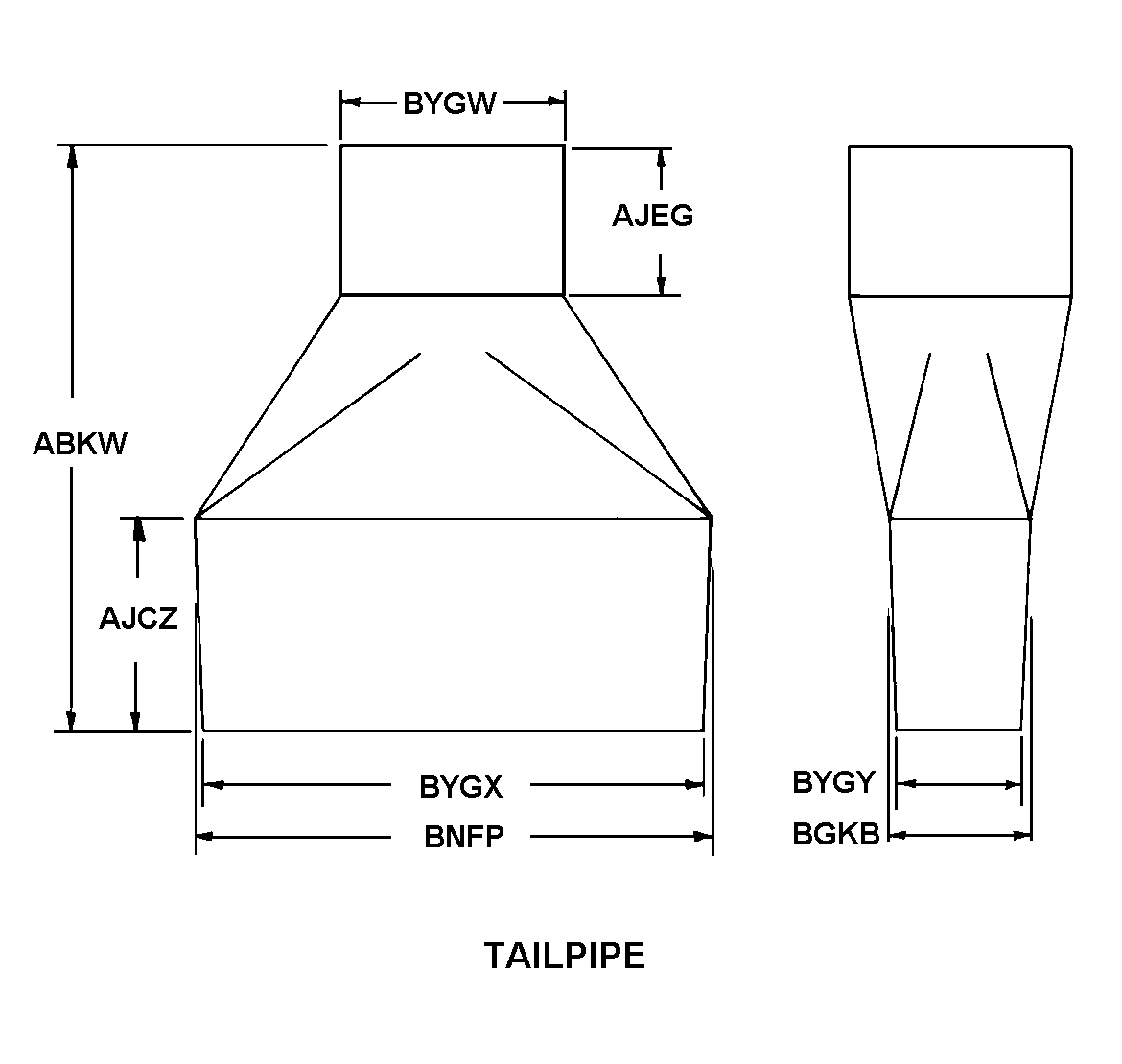

Drawings & Photos | NSN 2540-00-254-9049
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2541-00-254-9049
Technical Data | NSN 2541-00-254-9049
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| STYLE DESIGNATOR | G1 TAILPIPE |
| OVERALL HEIGHT | 8.000 INCHES NOMINAL |
| BASE HEIGHT | 3.000 INCHES NOMINAL |
| NECK HEIGHT | 2.000 INCHES NOMINAL |
| BASE OVERALL LENGTH | 6.625 INCHES NOMINAL |
| BASE OVERALL WIDTH | 1.875 INCHES NOMINAL |
| NECK OUTSIDE DIAMETER | 3.000 INCHES NOMINAL |
| BASE TAPERED LENGTH | 6.500 INCHES NOMINAL |
| BASE TAPERED WIDTH | 1.750 INCHES NOMINAL |
| SHEET METAL THICKNESS | 0.032 INCHES NOMINAL |
| ASSEMBLY METHOD | SPOT WELDED |
Restrictions/Controls & Freight Information | NSN 2541-00-254-9049
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
