NSN 2540-01-586-6763 288023, 01-586-6763, 015866763
Product Details | VEHICULAR DOOR LATCH
2540-01-586-6763 A fastening device designed to be mounted on a vehicle door or hatch, glove compartment, or the like; is spring activated and used in conjunction with a striking mechanism.
Part Alternates: 288023, 2540-01-586-6763, 01-586-6763, 2540015866763, 015866763
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 09 JUL 2010 | 01-586-6763 | 36301 ( LATCH, DOOR, VEHICULAR ) |

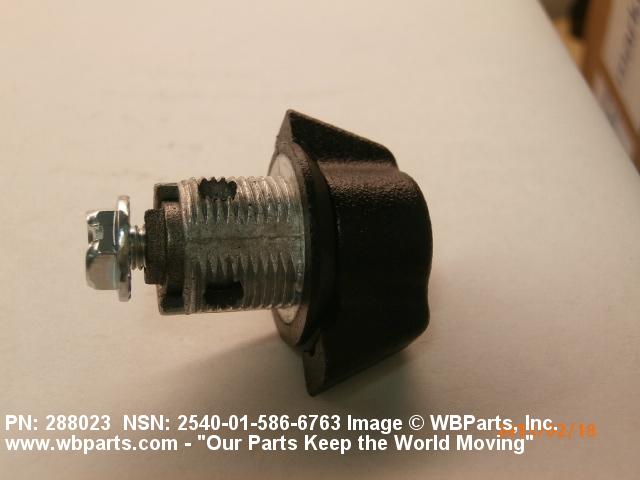

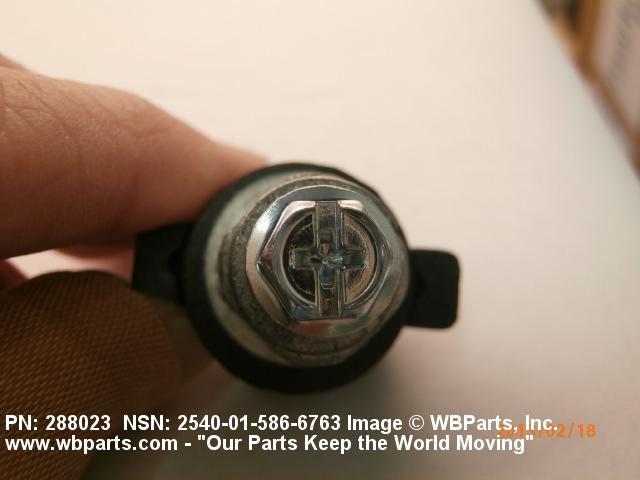

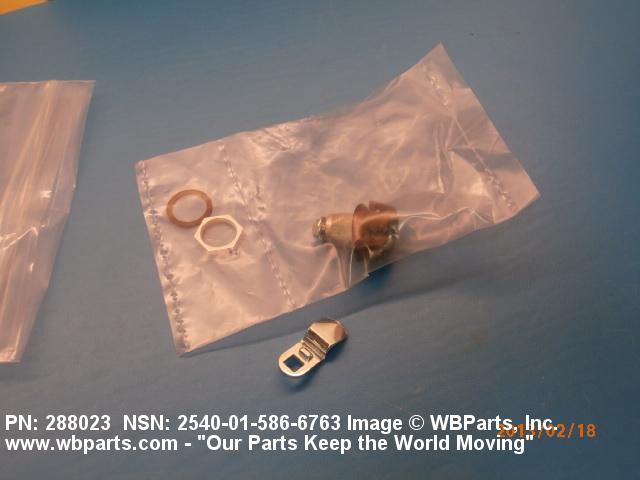

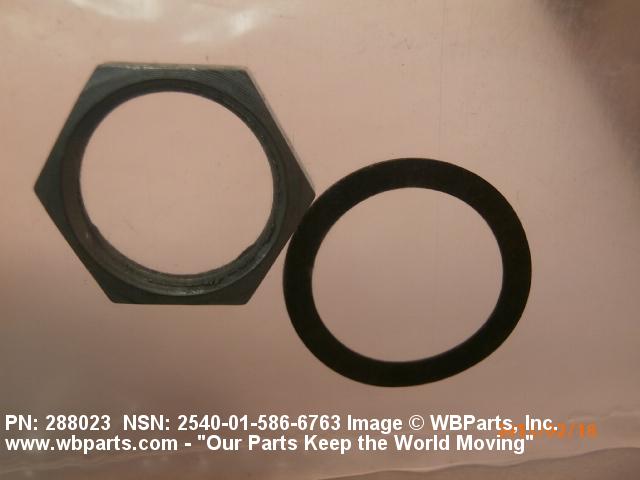

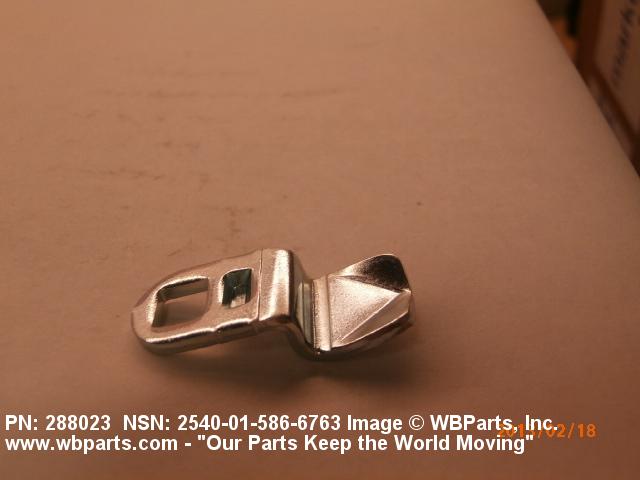

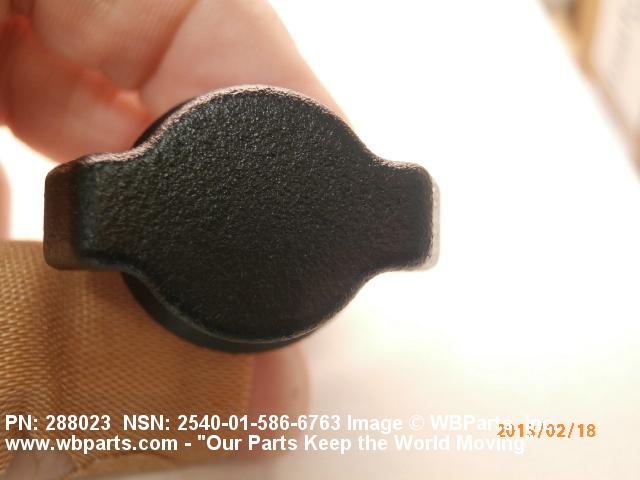

Drawings & Photos | NSN 2540-01-586-6763
Demand History | NSN 2540-01-586-6763
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2540-01-586-6763 | 2021-03-90 | 59 | US |
| 288023 | 2013-01-24 | 1 | United States |
| 288023 | 2013-01-17 | 5 | United States |
Cross Reference | NSN 2540-01-586-6763
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 288023 | 41843 | HOBART BROTHERS COMPANY DBA ITW HOBART BROTHERS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2540-01-586-6763
Technical Data | NSN 2540-01-586-6763
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | T.O. 35C2-3-4 FIGURE 301 INDEX 9 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | LATCH, WING KNOB |
| END ITEM IDENTIFICATION | GROUND POWER UNIT P/N JET-EX4D/5D |
Restrictions/Controls & Freight Information | NSN 2540-01-586-6763
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
