NSN 2540-01-494-5684 115380620001, 12417830, 12417830002
Product Details | VEHICULAR THERMAL INSULATION
2540-01-494-5684 An item composed of fiber, plastic foam, or synthetic material(s) in variousshapes and sizes. It is designed to reduce sound and/or provide resistance to the flow of heat. It may contain a vapor barrier or a fabric treated surface. It may include mounting holes.2042510000025400000254100002990000000
Part Alternates: 115380620001, 12417830, 12417830002, 12417830-002, 12417830007, 12417830-007, 2540-01-494-5684, 01-494-5684, 2540014945684, 014945684
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 14 FEB 2002 | 01-494-5684 | 42144 ( INSULATION, VEHICULAR ) |

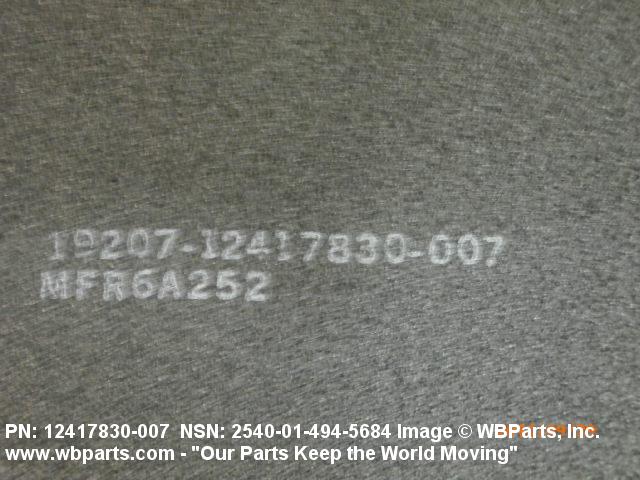

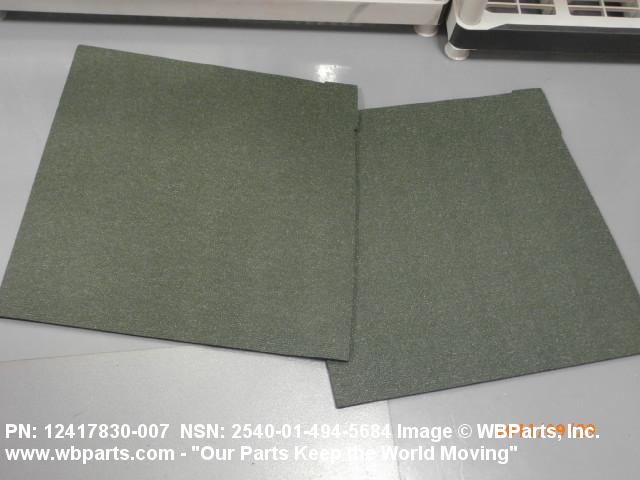

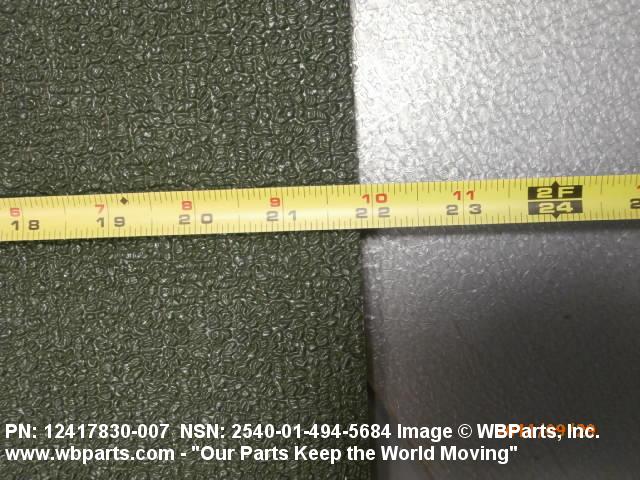

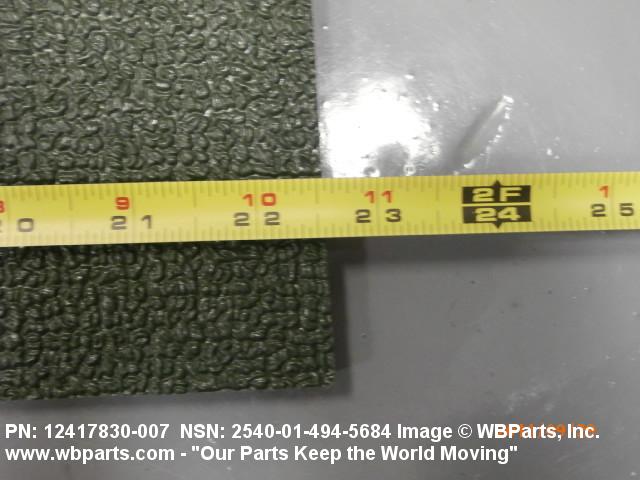

Drawings & Photos | NSN 2540-01-494-5684
Demand History | NSN 2540-01-494-5684
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12417830007 | 2022-07-207 | 40 | United States |
| 2540-01-494-5684 | 2018-02-36 | 176 | DIBBS |
| 12417830007 | 2015-01-30 | 2 | United States |
| 12417830007 | 2014-07-206 | 2 | United States |
| 12417830007 | 2013-09-258 | 1 | United States |
| 2540-01-494-5684 | 2012-03-66 | 217 | DIBBS |
| 2540-01-494-5684 | 2011-05-124 | 157 | DIBBS |
| 12417830007 | 2009-04-120 | 1 | United States |
| 2540-01-494-5684 | 2009-04-107 | 1922 | DIBBS |
| 2540-01-494-5684 | 2009-03-89 | 672 | DIBBS |
| 2540-01-494-5684 | 2008-08-235 | 2922 | DIBBS |
Cross Reference | NSN 2540-01-494-5684
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 115380620001 | 4Y355 | STEYR-DAIMLER PUCH AG |
| 12417830 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12417830-002 | 0FW39 | BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP |
| 12417830-002 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12417830-007 | 0FW39 | BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP |
| 12417830-007 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2540-01-494-5684
Related Products | NSN 2540-01-494-5684
Technical Data | NSN 2540-01-494-5684
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D1056 CLASS 2CL ASSN STD SINGLE MATERIAL RESPONSE |
| NOMINAL OVERALL LENGTH | 574.0 MILLIMETERS |
| OVERALL WIDTH | 553.5 MILLIMETERS NOMINAL |
| SPECIAL FEATURES | ITEM IS INSULATION, FLOOR MAT, THERMAL BARRIER FOR RIGHT SIDE; SUPERCEDES 12417830-002 AND 12417830-004; HAS COMPOSITE CONTRUCTION OF A BARRIER LAYER AND A FOAM LAYER WITH A TOTAL MASS LAYER OF 1-LB PER SQ FT; THE 0.125 INCH THICK BARRIER LAYER IS 383 GREEN IN COLOR; FOAM IS 0.50 INCH CLOSED CELL TYPE |
| III END ITEM IDENTIFICATION | NSN 2320-01-353-9098 CHASSIS, TRUCK; FMTV/A1 |
Restrictions/Controls & Freight Information | NSN 2540-01-494-5684
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2540-01-494-5684
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
