Product Details | ELECTRIC WINDSHIELD WIPER MOTOR

2540-01-424-0868 A mechanical device driven by electricity to produce the necessary motion to operate a windshield wiper20316800049Miscellaneous Aircraft Accessories and Components20900039Miscellaneous Ship and Marine Equipment25400035Vehicular Furniture and Accessories

Part Alternates: WWF24C191020, 11219121, 11-219121 , 2540-01-424-0868, 01-424-0868, 2540014240868, 014240868

Vehicular Equipment Components | Vehicular Furniture and Accessories

Supply Group (FSG) NSN Assign. NIIN
25 19 JAN 1996 01-424-0868

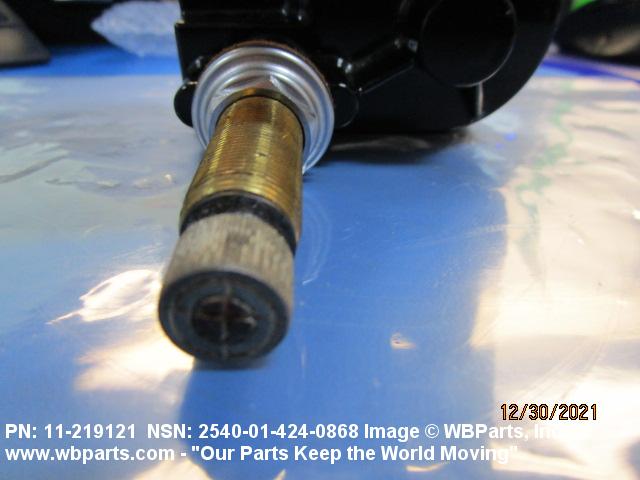

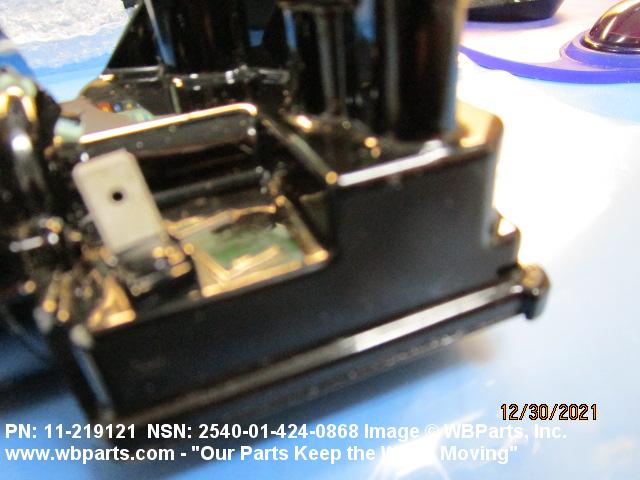

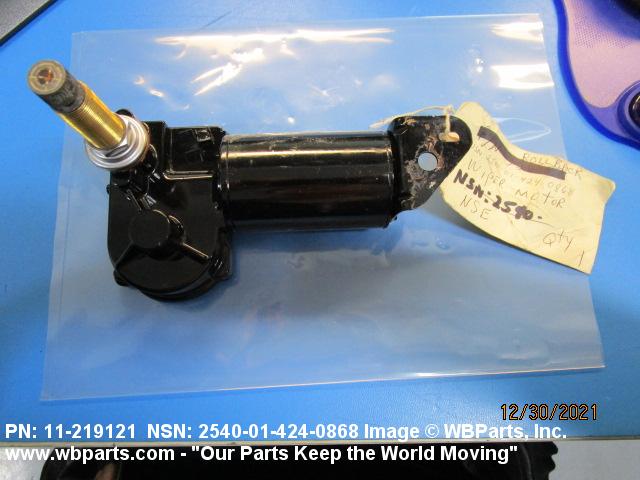

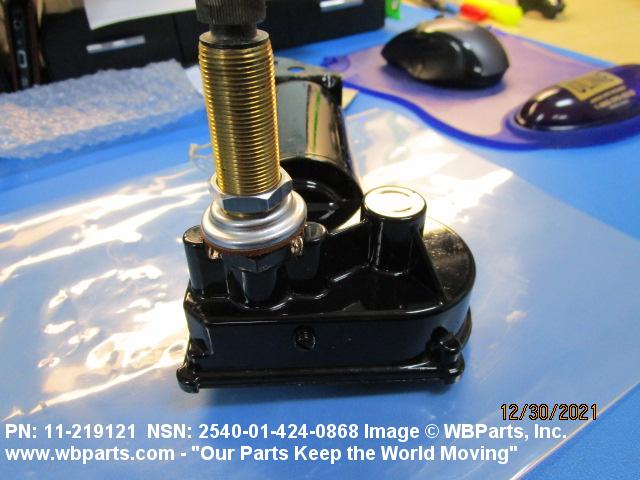

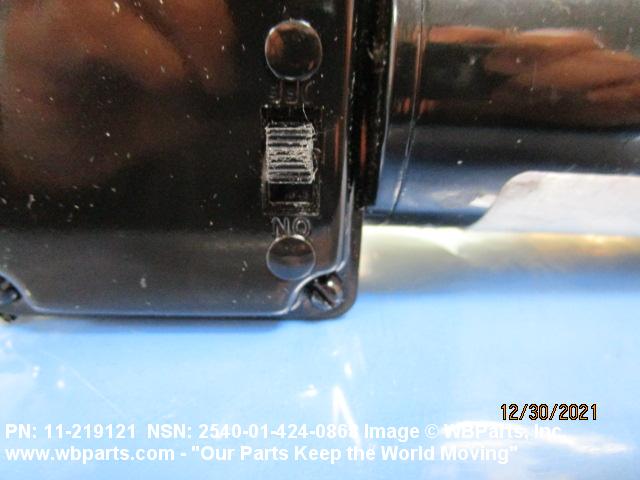

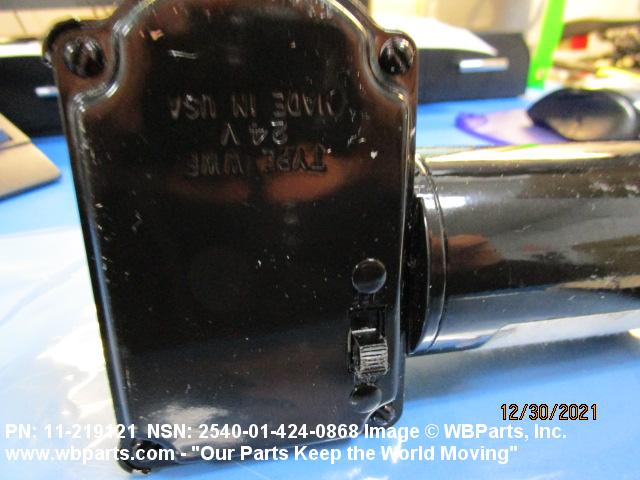

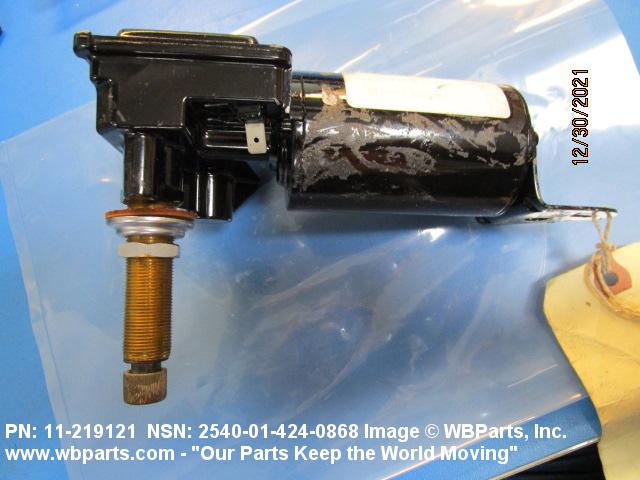

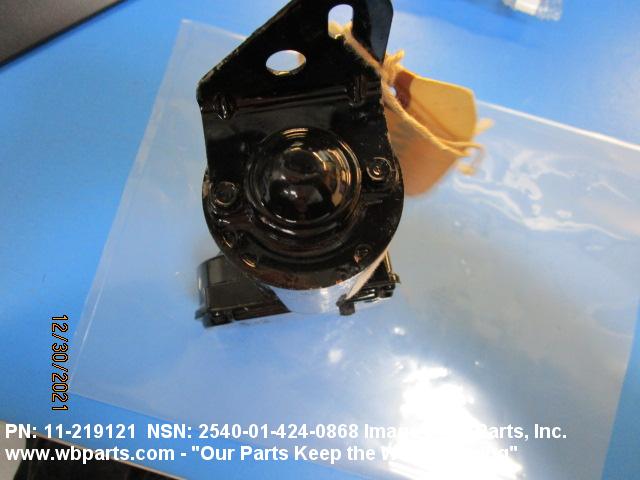

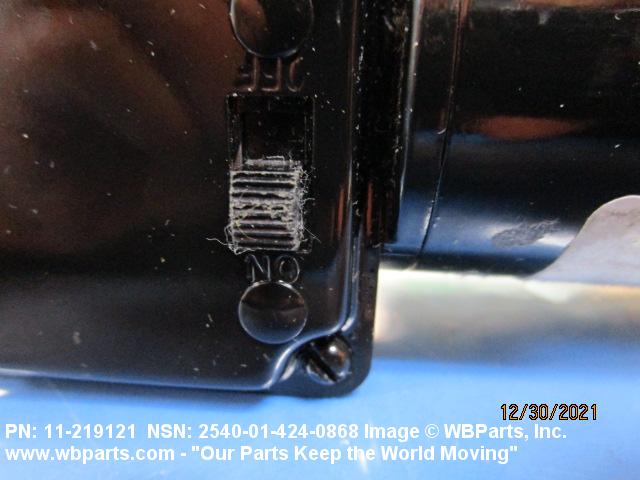

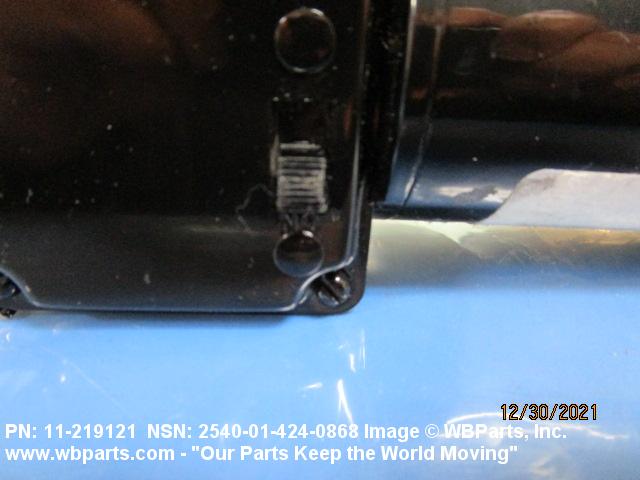

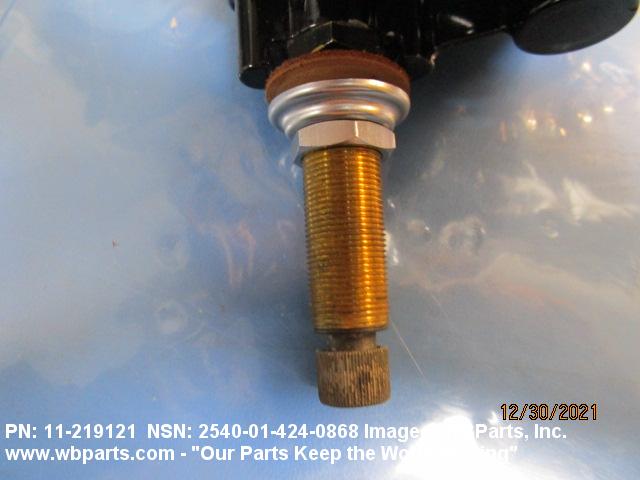

Drawings & Photos | NSN 2540-01-424-0868


Demand History | NSN 2540-01-424-0868

Part Number Request Date QTY Origin
11-219121 2023-09-250 35 DIBBS
2540-01-424-0868 2021-12-348 1 United States
11-219121 2019-09-262 59 DIBBS
WWF24C191020 2017-12-347 3 US
2540-01-424-0868 2017-02-33 39 DIBBS
2540-01-424-0868 2017-01-23 9 DIBBS
2540-01-424-0868 2016-04-119 31 DIBBS
2540-01-424-0868 2013-01-07 36 DIBBS

Cross Reference | NSN 2540-01-424-0868

Part Number Cage Code Manufacturer
11-219121 24956 UNITED TECHNOLOGIES CORP ELECTRO SYSTEMS INC
WWF24C191020 24956 UNITED TECHNOLOGIES CORP ELECTRO SYSTEMS INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2540-01-424-0868

Technical Data | NSN 2540-01-424-0868

Characteristic Specifications
DESIGN TYPE OSCILLATING ARM
THROW ANGLE IN DEG 65.0
ACTUATING SHAFT END CONNECTION TYPE PIVOT ARM
VOLTAGE IN VOLTS 24.0
TERMINAL QUANTITY 3
SWITCH INCLUDED
SWITCH TYPE INTEGRAL
SPEED CONTROL TYPE SINGLE
FUSE NOT INCLUDED

Restrictions/Controls & Freight Information | NSN 2540-01-424-0868

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 197720 WINDSHIELD WIPER ARMS BLADES/MTRS
Less than car load rating
Less than truck load rating M 85.0
Water commodity Code 593 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2540-01-424-0868

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
