NSN 2540-01-295-1825 012951825
Product Details | ACCESSORIES STOWAGE BOX
2540-01-295-1825 A box usually constructed of metal designed to provide protection and/or stowage of tools, spare parts, hardware, rations, flares, first aid supplies, components, and the like, in or on tanks, tractors, trailers, towed artillery, guided missile launchers, rocket launchers, shipping and storage containers, and the like. It is specifically designed as a component for, or for attachment to, designated equipment, it may be compartmented and contain securing devices for item to be stowed. It may be watertight and/or portable. It may have a separate or removable cover or lid. Excludes CASE (as modified), CHEST (as modified), SHIPPING AND STORAGE CONTAINER (as modified), and CONTAINER (as modified).
Part Alternates: 012951825
Weapons | Miscellaneous Weapons
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 10 | 01-295-1825 | 37273 ( BOX, ACCESSORIES STOWAGE ) |

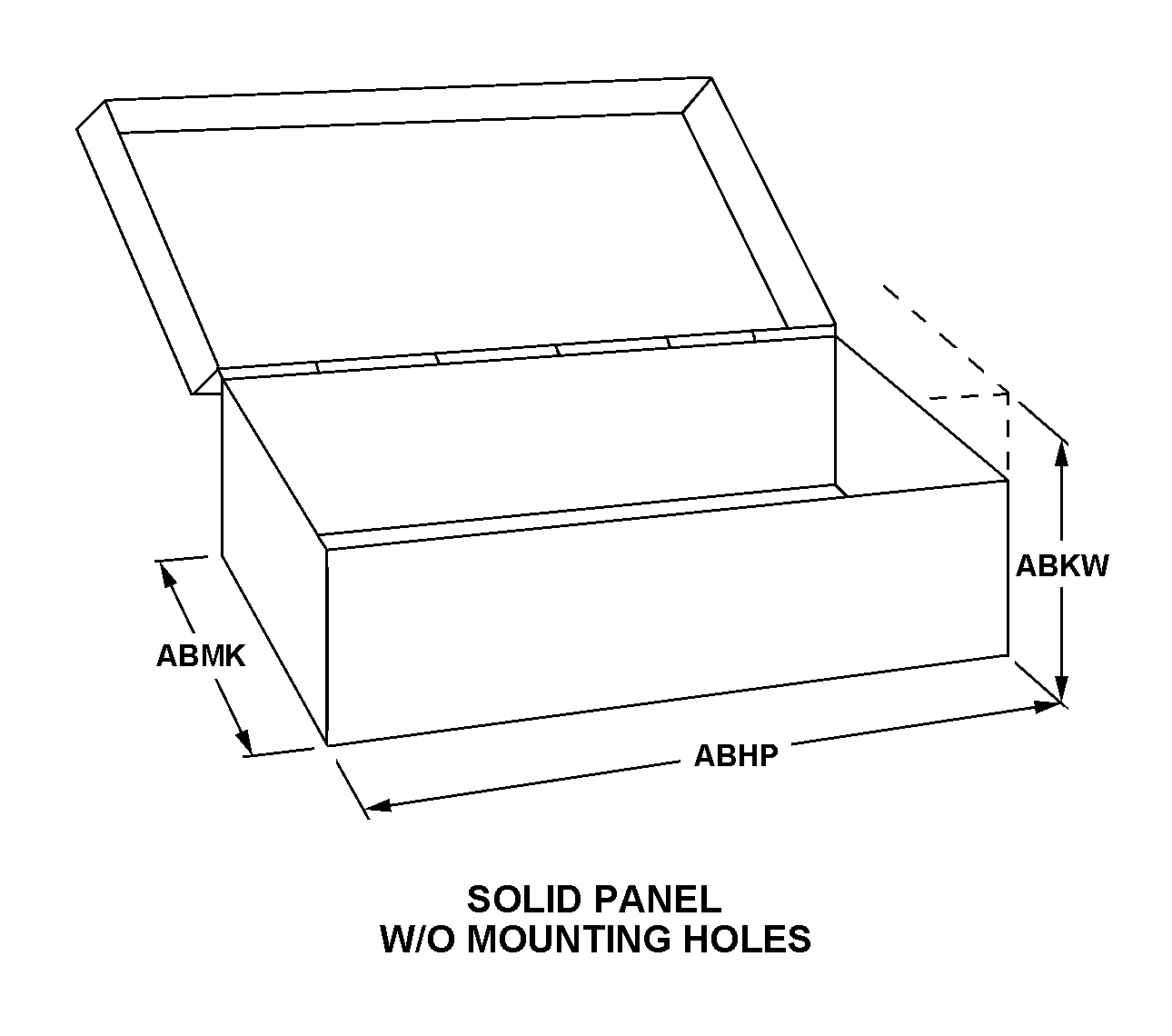

Drawings & Photos | NSN 1095-01-295-1825
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2540-01-295-1825
Technical Data | NSN 2540-01-295-1825
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | M1A SOLID PANEL |
| OVERALL LENGTH | 42.000 INCHES NOMINAL |
| OVERALL WIDTH | 20.000 INCHES NOMINAL |
| OVERALL HEIGHT | 16.250 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY, QQ-A-250/8, ALLOY 5052, H32 |
| EXTERIOR COLOR | BLACK |
| OUTSIDE SURFACE TREATMENT | PAINTED |
| HANDLING FACILITY TYPE | HINGED EXTERNAL HANDLES |
| ASSEMBLY METHOD | WELDED |
| CLOSURE METHOD | HINGED COVER |
| CLOSURE FASTENING TYPE | CATCH, CLAMPING |
| SPECIAL FEATURES | C/O COVER,WELDMENT PN 5-45-4942; BOTTOM WELDMENT PN 5-45-4948; CHAIN,SASH 20.0 IN. LG IAW FED SPEC RR-C-271,TY 2,CL 3,STEEL,TRADE SIZE 40; HINGE PN 5-45-4938; 2-CATCH,PULLDOWN PN 5-45-4937; 2-HANDLE PN 5-45-4936; 2-RING,SPLIT PN 90177A216; COATING,ALIPATIC POLYURETHANE,CHEMICAL AGENT RESISTANT; CARC PAINT PER MIL-C-46168,BLACK 37031,PER FED-STD-595 |
| MANUFACTURERS CODE | 81361 |
| DESIGN CONTROL REFERENCE | 5-45-4949 |
Restrictions/Controls & Freight Information | NSN 2540-01-295-1825
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
