NSN 2540-01-113-1524 115776, 01-113-1524, 011131524
Product Details | VEHICULAR BUMPER
2540-01-113-1524 An item usually metallic, specifically designed to be mounted on the chassis and/or body of ground vehicles for protection against damage in collision with other objects. It may include mounting bracket(s) and/or hardware, such as grille guards, reinforcements, tow rings, footman loops, and the like.20225400035Vehicular Furniture and Accessories25410046Weapons Systems Specific Vehicular Accessories
Part Alternates: 115776, 2540-01-113-1524, 01-113-1524, 2540011131524, 011131524
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 16 MAY 1981 | 01-113-1524 | 21985 ( BUMPER, VEHICULAR ) |

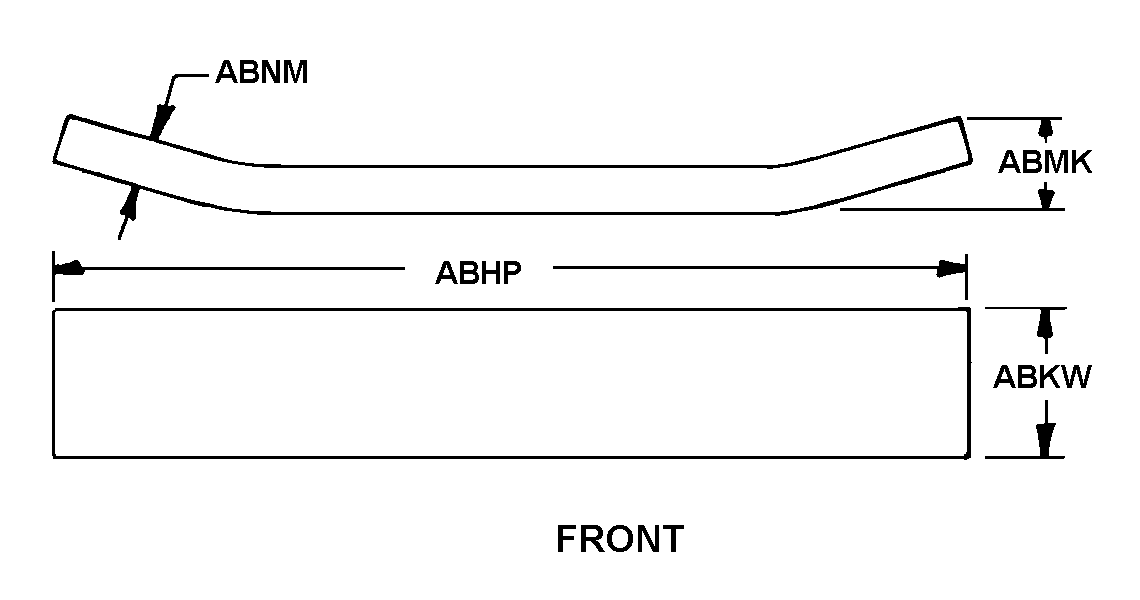

Drawings & Photos | NSN 2540-01-113-1524
Cross Reference | NSN 2540-01-113-1524
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 115776 | 10237 | CADILLAC GAGE TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2540-01-113-1524
Related Products | NSN 2540-01-113-1524
Technical Data | NSN 2540-01-113-1524
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-250/11, ALLOY 6061, T6 |
| SURFACE TREATMENT | PAINT, BLACK |
| COLOR | GREEN, FOREST |
| STYLE DESIGNATOR | H5 FRONT |
| OVERALL LENGTH | 74.720 INCHES NOMINAL |
| OVERALL HEIGHT | 7.000 INCHES NOMINAL |
| OVERALL WIDTH | 3.500 INCHES NOMINAL |
| THICKNESS | 2.250 INCHES NOMINAL |
| CONSTRUCTION | ONE-PIECE |
| MOUNTING BRACKET | PROVIDED |
| III END ITEM IDENTIFICATION | TRUCK,SECURITY POLICE |
| MANUFACTURERS CODE | 10237 |
| DESIGN CONTROL REFERENCE | 115776 |
Restrictions/Controls & Freight Information | NSN 2540-01-113-1524
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018420 | AUTO BUMPER/FITTING NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2540-01-113-1524
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
