NSN 2540-01-110-9952 12294823, 01-110-9952, 011109952
Product Details | VEHICULAR SEAT BACK CUSHION
2540-01-110-9952 An item consisting of resilient material(s) and may have a covering of cotton duck, leather, plastic or the like; and may include a rigid frame of aluminum, steel or wood. It is a replaceable component of a vehicular seat assembly. Excludes items specifically designed as a seat only.
Part Alternates: 12294823, 2540-01-110-9952, 01-110-9952, 2540011109952, 011109952
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 08 APR 1981 | 01-110-9952 | 23549 ( CUSHION, SEAT BACK, VEHICULAR ) |

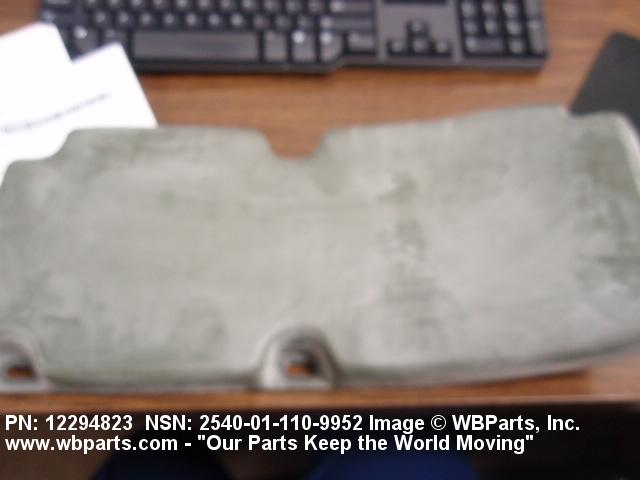

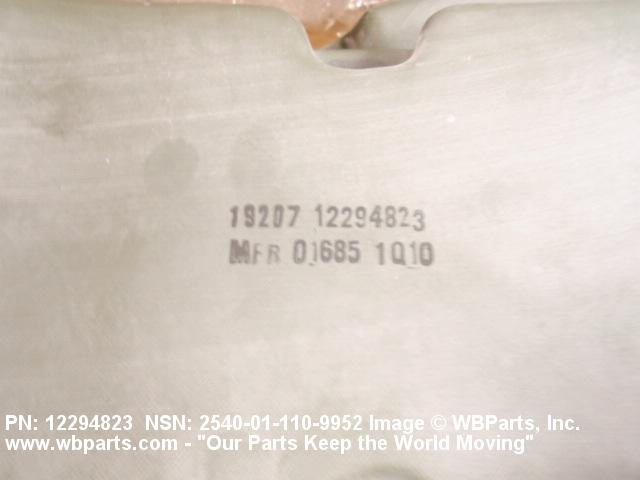

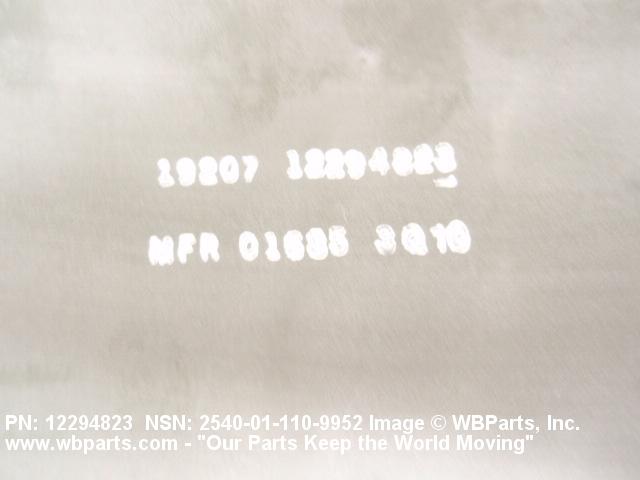

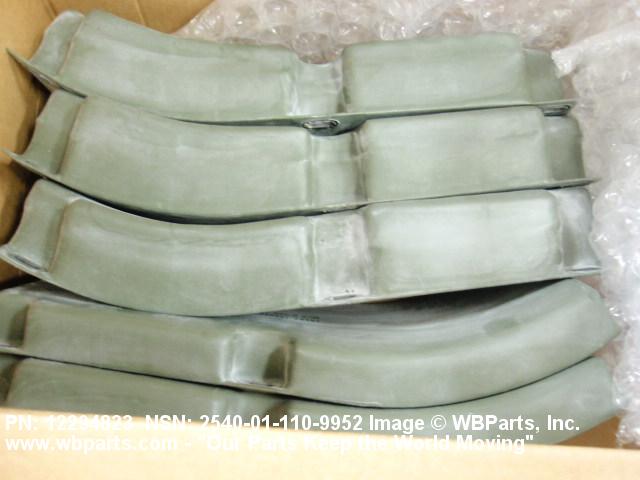

Drawings & Photos | NSN 2540-01-110-9952
Demand History | NSN 2540-01-110-9952
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2540-01-110-9952 | 2024-10-291 | 234 | DIBBS |
| 2540-01-110-9952 | 2023-10-283 | 325 | DIBBS |
| 2540-01-110-9952 | 2023-09-271 | 325 | DIBBS |
| 2540-01-110-9952 | 2023-09-257 | 161 | DIBBS |
| 2540-01-110-9952 | 2022-03-76 | 420 | DIBBS |
| 2540-01-110-9952 | 2021-09-258 | 199 | DIBBS |
| 12294823 | 2019-08-220 | 3 | United States |
| 2540-01-110-9952 | 2018-11-316 | 218 | DIBBS |
| 2540-01-110-9952 | 2018-11-308 | 40 | DIBBS |
| 2540-01-110-9952 | 2018-09-263 | 58 | DIBBS |
| 2540-01-110-9952 | 2017-02-38 | 284 | DIBBS |
| 2540-01-110-9952 | 2016-04-116 | 291 | DIBBS |
| 2540-01-110-9952 | 2016-04-105 | 291 | DIBBS |
| 2540-01-110-9952 | 2016-03-67 | 153 | DIBBS |
| 2540-01-110-9952 | 2016-02-54 | 153 | DIBBS |
| 12294823 | 2010-10-300 | 50 | United States |
| 12294823 | 2010-06-167 | 24 | United States |
| 12294823 | 2010-02-55 | 13 | United States |
| 2540-01-110-9952 | 2009-11-315 | 5 | United States |
Cross Reference | NSN 2540-01-110-9952
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12294823 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2540-01-110-9952
Related Products | NSN 2540-01-110-9952
Technical Data | NSN 2540-01-110-9952
| Characteristic | Specifications |
|---|---|
| COVER MATERIAL | RUBBER, SYNTHETIC |
| FRAME MATERIAL | ALUMINUM ALLOY, QQ-A-250/6, ALLOY 5083, H323 |
| RESILIENT MATERIAL | PLASTIC FOAM |
| OVERALL WIDTH | 6.750 INCHES NOMINAL |
| OVERALL LENGTH | 14.880 INCHES NOMINAL |
| OVERALL THICKNESS | 2.500 INCHES NOMINAL |
| MOUNTING ATTACHMENT | NOT INCLUDED |
| SPECIAL FEATURES | 10.430 STRAIGHT LG,BENT 45 DEG ON9.000 RADIUS |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 12294823 |
Restrictions/Controls & Freight Information | NSN 2540-01-110-9952
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 191600 | VEHICLE PTS:CUSHIONS VEH SEAT/BACK |
| Less than car load rating | ||
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2540-01-110-9952
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | M | Armored Carriers |
| Weapons Systems/End Item or Homogeneous Group | MM | Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavelry Fighting Vehicle (M3, M3A1, M3A2) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
