Product Details | DOOR HANDLE
2540-00-772-3386 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: 7723386, 2540-00-772-3386, 00-772-3386, 2540007723386, 007723386
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-772-3386 | 18073 ( HANDLE, DOOR ) |

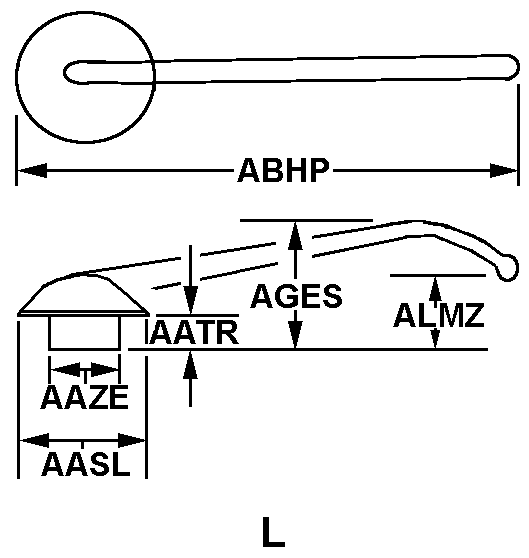

Drawings & Photos | NSN 2540-00-772-3386
Cross Reference | NSN 2540-00-772-3386
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7723386 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
